Hugelkultur Garden Cubes!


Tim Burrows
Posts: 99
10
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

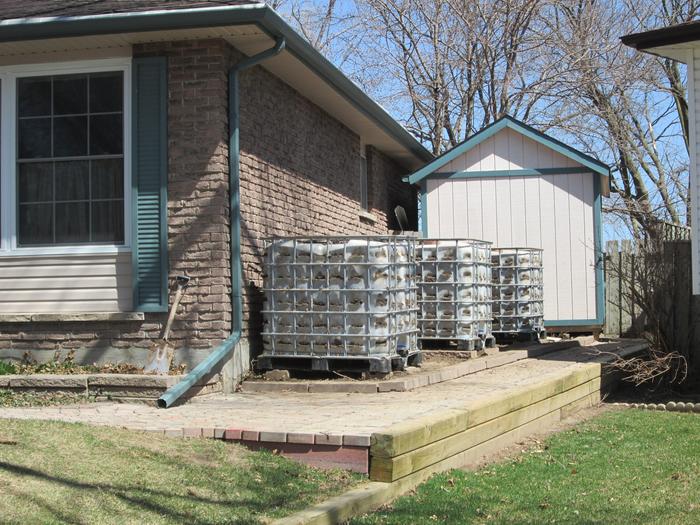

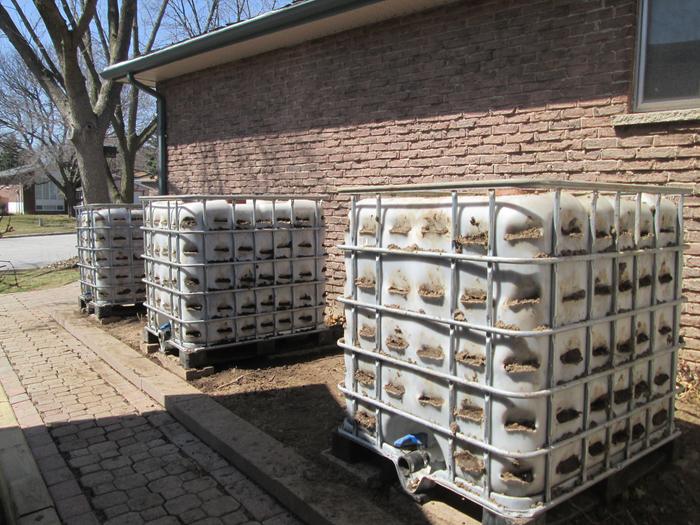

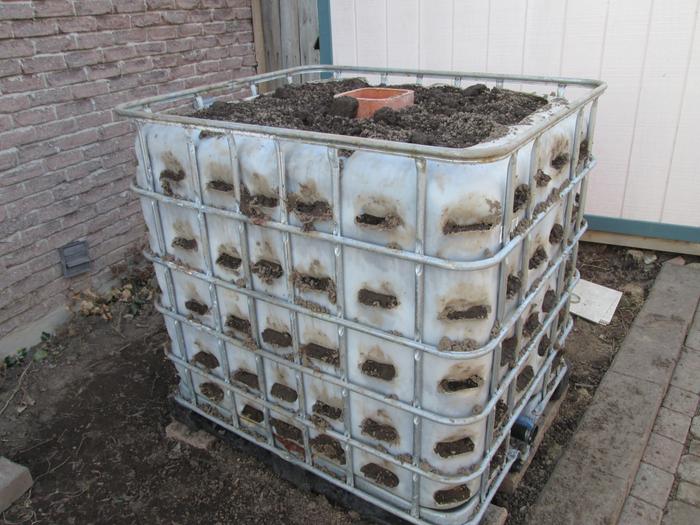

Just reused industrial food grade shipping containers for a 4 foot raised vertical hugelkultur mound. I molded the outer walls into pockets with a heat gun and chunks of 2x4. Inside is a mixture of old birch, compost and top soil that was ordered. Also 2 of them container a 2 foot clay olla, but I plan to water them from the roof...
[Thumbnail for IMG_0857.JPG]
[Thumbnail for IMG_0863.JPG]
[Thumbnail for IMG_0847.JPG]

Dale Hodgins
gardener
Pie
Posts: 6139
Location: Victoria British Columbia-Canada
187

William Bronson
Posts: 1138
Location: Cincinnati, Ohio,Price Hill 45205
7
forest garden trees urban
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Very cool! I can get non potable IBCs for next to nothing, I think they would work fine for something like this.
I have been thinking about making ibc's into sub irrigated planter, your way with increased planting space and also prevent root bound issues.

Kyrt Ryder
Pie
Posts: 694
Location: Graham, Washington [Zone 7b, 47.041 Latitude] 41inches average annual rainfall, cool summer drought
11
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
William Bronson wrote:Very cool! I can get non potable IBCs for next to nothing, I think they would work fine for something like this.

I would advise caution here. Some of the non-potable material transported in these is really nasty stuff.

William Bronson
Posts: 1138
Location: Cincinnati, Ohio,Price Hill 45205
7
forest garden trees urban
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
True, but I am talking about using old soap containers and such,not anything that contained hardcore chemicals.
Even those could be used if you discarded plastic cube and just used the metal cage.

Pia Jensen
Posts: 218
4
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
that's a cool set up, though I think we accept plastic goods too easily. Is there possibly a toxins leaching into soil issue? sorry.

Tim Burrows
Posts: 99
10
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Pia Jensen wrote:that's a cool set up, though I think we accept plastic goods too easily. Is there possibly a toxins leaching into soil issue? sorry.


I was concerned about it, and normally don't like plastic but these tanks were used to raise fish and are a uv stabilized food grade plastic....so hopefully they are okay!

chad Christopher
Posts: 290
Location: Pittsburgh PA
9
chicken duck forest garden fungi trees woodworking
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I've seen individuals use those center pieces you have in there, as active vermipost tubes, throw in some screen, so worms don't migrate into the soil, and toss in bedding worms and food scrap. The vermipost leaches into the soil. If thats not what your already doing. I really like this design, especially the direct roof watering, how do you plan on controlling the water flow? This could be great for urban settings, imagine native flower cubes, where rainwater gardens have no soil, or not far enough away from foundations.

Vega Nunez
Posts: 3
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Curious what cultivars you plan for the cubes, and with what anticipated result/ rate of success. When I first saw your post, I instantly though of strawberries. Thanks.

Colin Nelson
Posts: 60
Location: Baton Rouge, Louisiana
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I definitely want to follow this...excited to see how it does.

Tim Burrows
Posts: 99
10
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

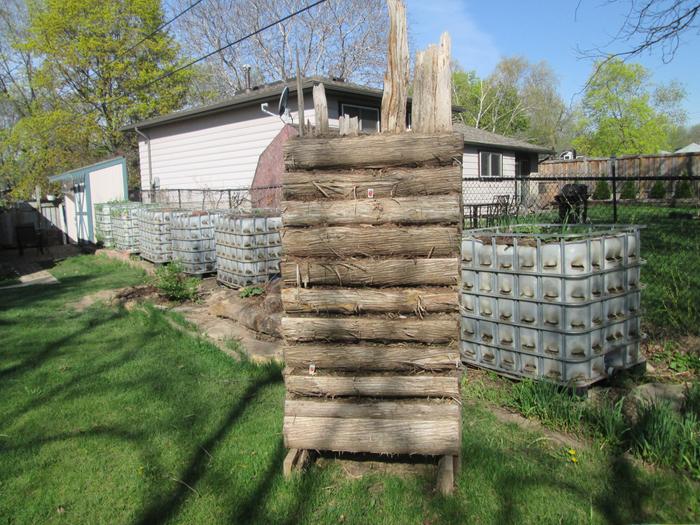

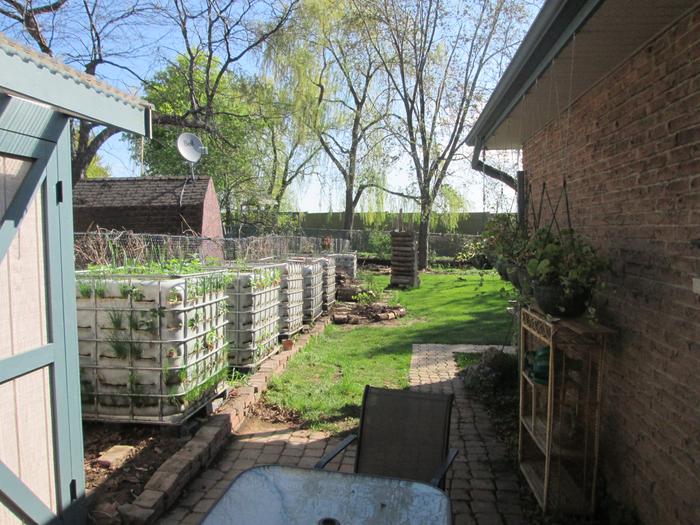

Hope they work as well as I hope because I made 9 of them!! 6 on one side of the house, and 3 on the other. The final picture is a cube from last year I had inside of a cheap greenhouse until today.
[Thumbnail for IMG_0906.JPG]
[Thumbnail for IMG_0907.JPG]
[Thumbnail for IMG_0925.JPG]

Tim Burrows
Posts: 99
10
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Here's a quick video!

https://www.youtube.com/watch?v=SolPCb-r-EQ

Pia Jensen
Posts: 218
4
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Tim Burrows wrote:
Awesome! Looks like that's going to be so full!!


Here's a quick video!

https://www.youtube.com/watch?v=SolPCb-r-EQ

Tim Burrows
Posts: 99
10
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
https://www.youtube.com/watch?v=GSu_5o_a74A


Updated Garden Tour Video May 2015

sam na
Posts: 30
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Nice. I really like these.

I'd second the idea of in-situ vermicomposting, that would make them into really useful units for people without gardens.

I also think they could be made self-watering pretty easily. Just scale this kind of thing up: https://www.youtube.com/watch?v=-t9gfWhZLEo a 200-300 litre water reservoir at the bottom would make these really hassle free.

Tim Burrows
Posts: 99
10
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

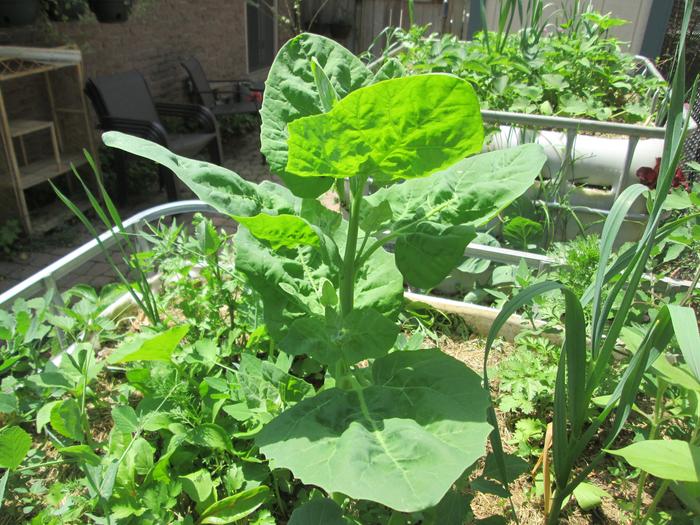

Lettuce, Spinach, Squash
[Thumbnail for IMG_0983.JPG]
[Thumbnail for IMG_0998.JPG]
[Thumbnail for IMG_0986.JPG]

Cristo Balete
Posts: 421
Location: In the woods, West Coast USA
11
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Great job, Tim. Those are impressive cubes. I'm glad it was you, and not me, filling those up!

You might want to think about roof water coming from composite tiles. Here's a link that has gathered info from various sources. Might be safer to run it through a reed bed system first, or compost with it. Those tiles are always breaking down in the sun, and if all the water goes into those containers, whatever is coming off the roof will collect in them.

Everything I've read in the past says it should only be used for landscape, not edibles.

http://tylertork.com/diyrainbarrels/safety.html


Tim Burrows
Posts: 99
10
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

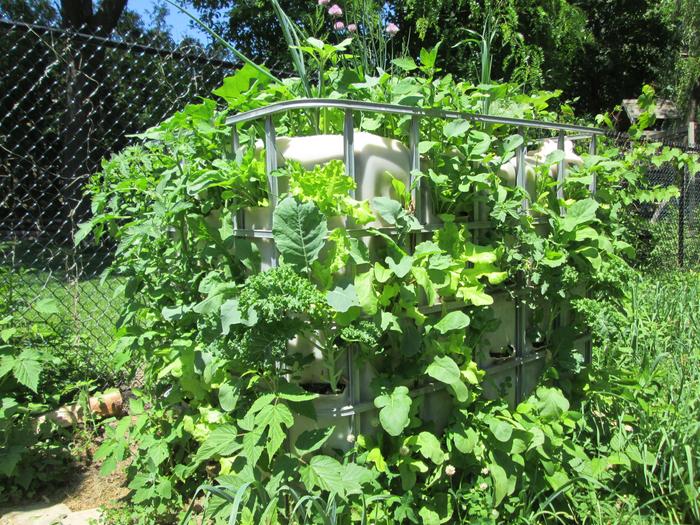

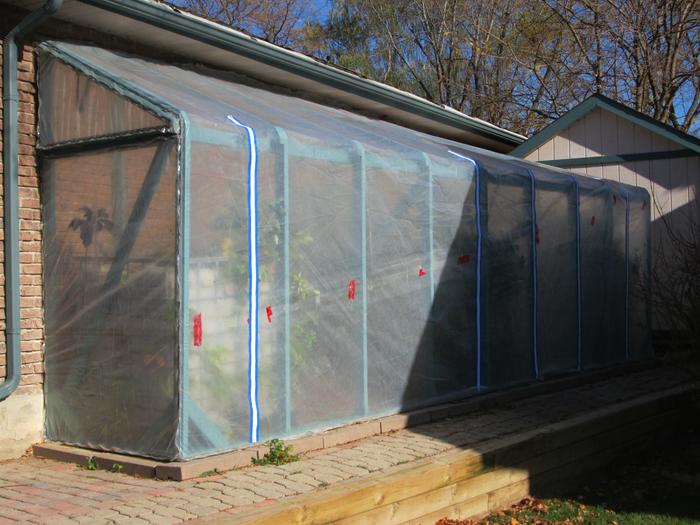

I enclosed 3 of the cubes in a small greenhouse along the side of the house. They all got extremely dry because the clay I used could not weep water as intended and the hugelkultur core was too fresh to hold water well. I eventually put a drip line to each cube and then everything was great again. Here is a few photos but there will be many more this spring.
[Thumbnail for IMG_1042.JPG]
[Thumbnail for IMG_1026.JPG]
[Thumbnail for IMG_1530.JPG]
