Another keypoint Question


Posts: 119
Location: Southern IL zone 6b/7
7
purity trees books
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I have read everything I can get my hands on about keyline and I still can't say with confidence where my keypoints are.  Perhaps I'm overthinking it. Darren Doherty says it's a point in the valley after the valley goes from a steep incline to a gradual incline.  The thing is, my valleys are the opposite, they have a gradual incline and then go to a steep incline.  Would it still be the same point? Here is one of the contour maps of my property, if anyone has any insight that would be great.
[Thumbnail for nationalmapgov-Boundary.png]

steward
Posts: 4661
Location: Cache Valley, zone 4b, Irrigated, 9" rain in badlands.
1547
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

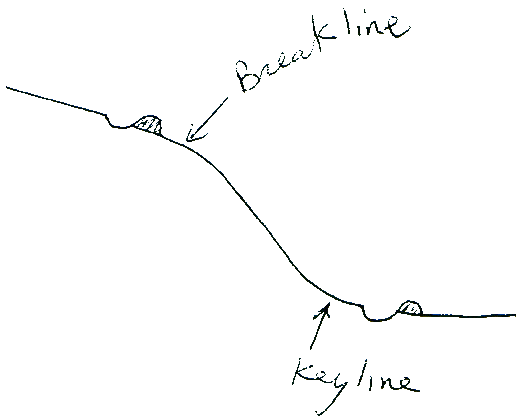

It looks to me, like there are no keypoints on that property. The keypoints of each of the valleys on the property are beyond the edge of the property. On that property you may want to make your waterworks based on the break-lines...




Michael Longfield
Posts: 119
Location: Southern IL zone 6b/7
7
purity trees books
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Thanks so much Joseph.  It seems so clear now.  I really appreciate you taking the time to mark the keypoints! TAKE CARE!
