[center]dragon Technology rocket mass heaters logo
Dragon Technology proudly introduces the industry's first  Quick Change secondary air stub!
https://dragontechrmh.files.wordpress.com/2021/01/20210101_084146.jpg

A floor channel stub of carbon steel is expected to last several seasons in a lightly used Batch. In a heavy use situation the cobra hood will degrade in a few months. The entire stub (but not the tube) will need replaced every season, if not twice a season. For those folks with welding / metal working ability, it is an hours work to cut off the old stub and weld on a new one. For those without that ability removal of the air channel is required, as well as hiring a welder to fabricate a new cobra stub.
https://permies.com/t/153752/a/129329/20201231_110911.jpg

Now with the new Dragon tech Quick Change. You can swap out a stub in just a few minutes with no welding or disassembly involved.
https://dragontechrmh.files.wordpress.com/2021/01/20210101_084200.jpg

https://dragontechrmh.files.wordpress.com/2021/01/20210101_084350-1.jpg

2.5″ x 1.5″ tubing nominal length of 22 – 24″. Cut to your specific size at no cost.

Supplied with 1.5″ x 4.5″ Carbon steel Stub with cobra hood.
$90 + fedex shipping.
Replacement stubs are available.
$25 + shipping

I’ve been building and using Rocket Mass Heaters since 2013. Finding products for any RMH build can be challenging. Finding parts for a batchbox RMH has been even harder as most require metal fabrication.  At Dragon Tech we can supply you with the materials you need to build your own RMH, from batch box doors to Morgan Superwool Plus to secondary air flow channels and now the industry's first Quick Change stub!

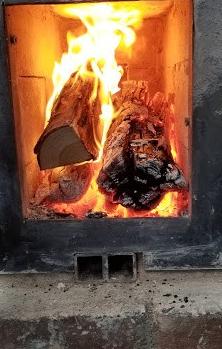

https://dragontechrmh.files.wordpress.com/2021/01/20201225_111915-e1609606145155.jpg



find out more at Dragon Tech





pollinator
Posts: 213
Location: Northwest Missouri
83
forest garden fungi gear trees plumbing chicken cooking ungarbage
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Nice innovating! Is there a "stop" in the receiving sleeve or is it the bolts that grip and suspend the stub to keep it from bottoming out in the horizontal portion?

thomas rubino
gardener
Posts: 4054
Location: latitude 47 N.W. montana zone 6A
1248
cat pig rocket stoves
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi Matt;
Yes, there are protrusions that stop the stub from going any deeper.
The bolts I am not sure are even needed.  I'll install one in my studio batch and experiment with the bolts loose.
I'll also be releasing a Quick change using a 6" carbon steel Walker style stub.

Matt Todd
pollinator
Posts: 213
Location: Northwest Missouri
83
forest garden fungi gear trees plumbing chicken cooking ungarbage
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Exciting stuff! This will make secondary air piping much more available to me in the next couple of years when I build a closed system batch box. And save me the awkward exchange with any local welder who'd likely say "you want me to do what now?"

thomas rubino
gardener
Posts: 4054
Location: latitude 47 N.W. montana zone 6A
1248
cat pig rocket stoves
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi Matt;
The real answer about stubs, is to spring for the RA330.
Extreme long life , possibly a lifetime  one shot deal.
The RA330 has been made since the 1950's.  It is a proven product.
We can't say it will last a life time in a batch... yet, but our children will after we are gone and it is still there working!
