How cracked is too cracked?


Joshua Myrvaagnes
pollinator
Posts: 2211
Location: Massachusetts, 5a, flat 4 acres; 40" year-round fairly even
306
5
I like...
kids purity trees urban writing
posted 1 year ago
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Help, my rocket stove got attacked by pigs!  It’s a long story. Short version, do I have to take it to the vet or can I repair it?

It’s kinda a long shot but I have a sentimental attachment to Thoor Ballilee II, my rocket stove. It is/was a Walker rocket core. Prior to being abused by pigs it was out in all kinds of weather, and I was not the best caretaker. But now I think I can do better, plus I have cob.

Will cracks in the ceramic fiberboard be a big problem? If so would adding some con or some clay-sand mortar there help or make it worse?
[Thumbnail for IMG_0985.jpeg]

Community Building 2.0: ask me about drL, the rotational-mob-grazing format for human interactions.


Joshua Myrvaagnes
pollinator
Posts: 2211
Location: Massachusetts, 5a, flat 4 acres; 40" year-round fairly even
306
5
I like...
kids purity trees urban writing
posted 1 year ago
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator

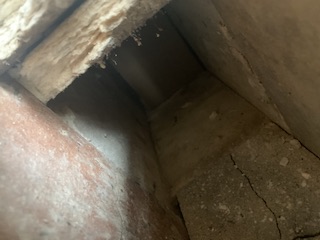

Pictures of broken fiberboard and also firebrick. Same question regarding the forebrick.
[Thumbnail for IMG_0984.jpeg]
[Thumbnail for IMG_0982.jpeg]

Community Building 2.0: ask me about drL, the rotational-mob-grazing format for human interactions.


thomas rubino
master rocket scientist
Posts: 6738
Location: latitude 47 N.W. montana zone 6A
3613
I like...
cat pig rocket stoves
posted 1 year ago
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Hi Josh;
Dang piggies!
In my opinion, any broken/cracked CFB needs to be replaced.
The cracked firebrick could be repaired using an automotive exhaust repair paste.
However, I would just replace them at the same time as the CFB.

So, isn't it about Pork Chop time???

For all your Montana Masonry Heater parts (also known as) Rocket Mass heater parts.
Visit me at
dragontechrmh.com Once you go brick you will never go back!


Joshua Myrvaagnes
pollinator
Posts: 2211
Location: Massachusetts, 5a, flat 4 acres; 40" year-round fairly even
306
5
I like...
kids purity trees urban writing
posted 1 year ago
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Thanks Thomas.

Can you expand a bit?  I'm really wanting to save the patient and willing to do heroic measures.  Just nothing toxic.  Automotive exhaust repair paste sounds like it might be, so I will try the cob or sand-clay for the moment till I can get a replacement brick.

As for the ceramic fiberboard, I do have one extra piece from a different project that can patch up the worst hole.  It will result in a bit of a cyclone shape.

What happens when there are cracks patched with cob? or with cob around them?  Assuming it's airtight enough smoke can't penetrate, is it simply losing some efficiency?  My rocket mass heater has "cracks" where the cleanout gate slides in and out, and I patch that with some aluminum, and the thing works OK but not great--however I assumed that was for all hte other reasons that the Code imposes on the design.

thomas rubino wrote:Hi Josh;
Dang piggies!
In my opinion, any broken/cracked CFB needs to be replaced.
The cracked firebrick could be repaired using an automotive exhaust repair paste.
However, I would just replace them at the same time as the CFB.

So, isn't it about Pork Chop time???

Community Building 2.0: ask me about drL, the rotational-mob-grazing format for human interactions.


Joshua Myrvaagnes
pollinator
Posts: 2211
Location: Massachusetts, 5a, flat 4 acres; 40" year-round fairly even
306
5
I like...
kids purity trees urban writing
posted 1 year ago
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
ps the pigs are no longer with us

Community Building 2.0: ask me about drL, the rotational-mob-grazing format for human interactions.


jordan barton
steward
Posts: 1898
Location: Coastal Salish Sea area, British Columbia
1061
2
I like...
books chicken food preservation pig bike solar wood heat rocket stoves homestead ungarbage
posted 1 year ago
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
I have stuck ceramic fibre board back together with the "glue" they sell for replacing door seals on wood stoves. the fibreglass rope stuff. I am sure it is just sodium silicate.

It is a privilege to live, work and play in the traditional territory of the Salish People.
Now drop and give me 52... ~ Come Join the permies Shoecamp! ~ All about Permies, including Tutorials ---
Twenty bucks off the homesteading bundle for the next 72 hours!


Fox James
Rocket Scientist
Posts: 820
Location: Guernsey a small island near France.
319
posted 1 year ago
  • Likes 7
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Hi Joshua, if you are worried about things being toxic then be very careful handling the ceramic fiber.
Once the product  has been heated it can become fragile and dusty, that dust is toxic and potentially carcinogenic.
At the very least wear a mask while handling it.

Joshua Myrvaagnes
pollinator
Posts: 2211
Location: Massachusetts, 5a, flat 4 acres; 40" year-round fairly even
306
5
I like...
kids purity trees urban writing
posted 1 year ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Thanks team.

I have not found any wood glue that is pure sodium silicate.  Any brand recommendations? I could order some from a lab supplies place but it won't arrive before the work day (Saturday).

Community Building 2.0: ask me about drL, the rotational-mob-grazing format for human interactions.


Joshua Myrvaagnes
pollinator
Posts: 2211
Location: Massachusetts, 5a, flat 4 acres; 40" year-round fairly even
306
5
I like...
kids purity trees urban writing
posted 1 year ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Oops--wood stove glue, not wood glue.  I'll try another search engine

Joshua Myrvaagnes wrote:Thanks team.

I have not found any wood glue that is pure sodium silicate.  Any brand recommendations? I could order some from a lab supplies place but it won't arrive before the work day (Saturday).

Community Building 2.0: ask me about drL, the rotational-mob-grazing format for human interactions.


Fox James
Rocket Scientist
Posts: 820
Location: Guernsey a small island near France.
319
posted 1 year ago
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
You should be able to buy  adhesive from the same place you bough you ceramic fiber?
Any stove shop will have high temp adhesive, most are clay based and cheap to purchase in a mastic gun tube size, my supplier has lots on offer like stove pipe sealer, water glass based glues and purpose ceramic fiber glues.
All of them set rock hard with no give or movement, so not particularly good for most jobs, as a rule refractory products crack or break because there is no room for expansion so adhesives that set hard dont always work very well.
However ceramic fibre is not so prone to expansion but it does become brittle and weak and crumbly once heated.

You might get the best results by simply pushing the parts together without any glue but of course without actually handling the piece it is difficult for me to say!

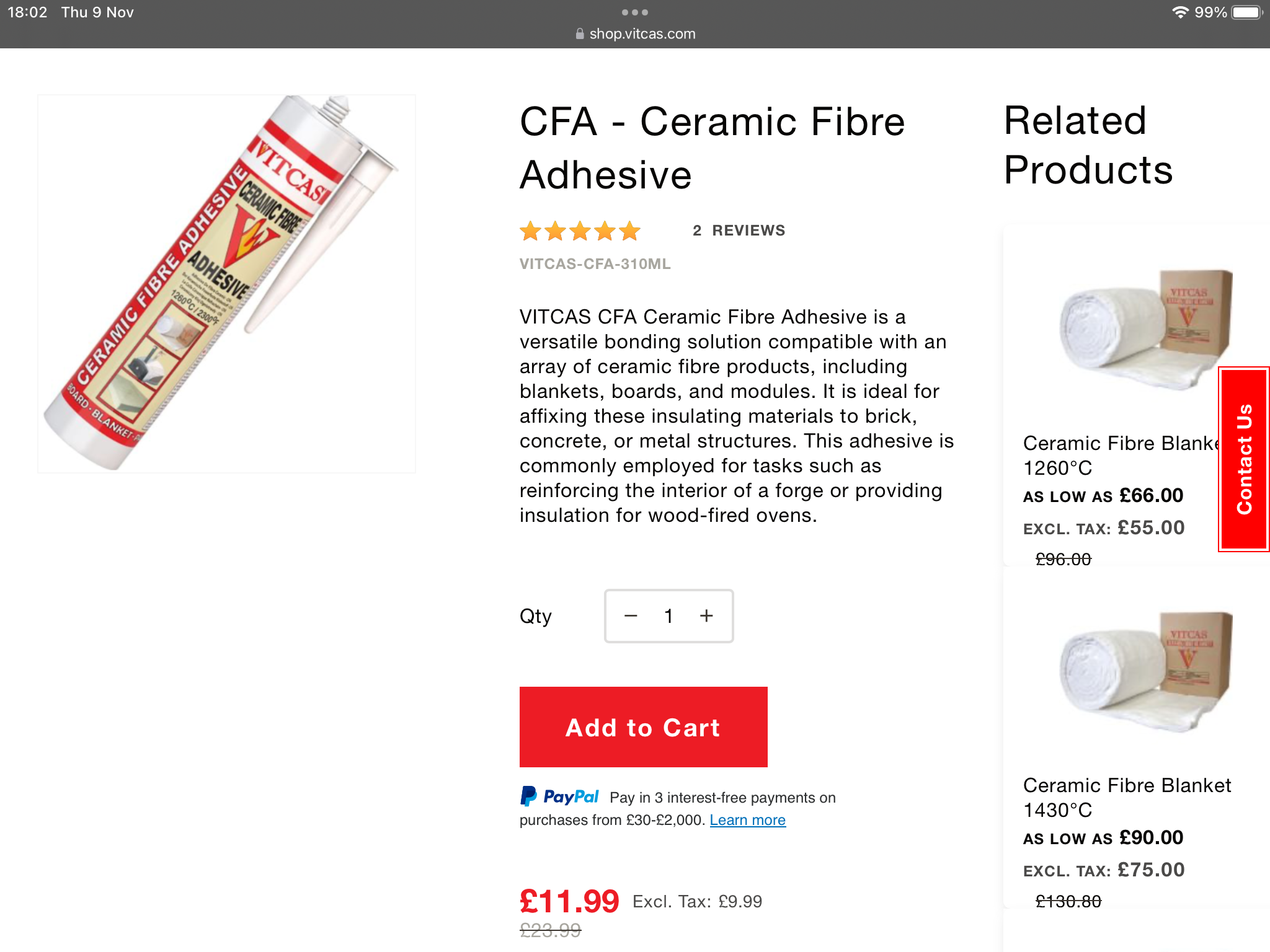

I live near France but but mainly but from the UK, this is the sort of stuff you want…..
[Thumbnail for IMG_8775.png]

Joshua Myrvaagnes
pollinator
Posts: 2211
Location: Massachusetts, 5a, flat 4 acres; 40" year-round fairly even
306
5
I like...
kids purity trees urban writing
posted 1 year ago
  • Likes 6
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
update--I ignored everyone's good advice to start over and to buy a ceramic adhesive, and just using cob got the thing cobbled together again. It works pretty darn well, though it smokes a bit sometimes.  I need to finish the cob all the way to the top up a few more inches, but it often flames so high it's going up the sides of the pot.  It also melted the handle of the instant pot lid when I put that on there with lid to reheat something...which I will put on my long list of Joshua's mistakes

Community Building 2.0: ask me about drL, the rotational-mob-grazing format for human interactions.
