I live in New Mexico at 9300 feet elevation. In the fall the early mornings are pretty chilly but the days often warm up nicely. I am about to construct my first RMH and am wanting to install a bypass in my system so that I can light a quick fire in the morning and not overheat the house all day. My exit pipe will will come up very close to the bell. Is it better to install the bypass in the ducting inside the mass or would it be ok to come out the side of the top of the bell and tee directly into the exit pipe? Any thoughts and or design ideas/pictures/drawings would be very appreciated! Thanks in advance!

Rocket Scientist
Posts: 4574
Location: Upstate NY, zone 5
599
5
  • Likes 6
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
With your situation, the option of a quick fire that does not heat the mass sounds good. What you would want is a bypass from near the bottom of the barrel to the chimney, so that the whole barrel gets hot. Exiting from the top of the barrel would leave much of it cold. The high bypass idea is strictly for difficult starting situations.

A bypass inside the mass from near the barrel straight to the chimney connection would also work fine, if your layout makes that easy.

Posts: 59
8
  • Likes 7
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

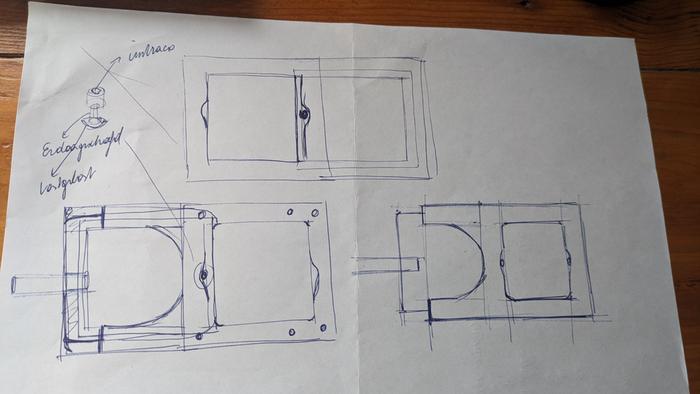

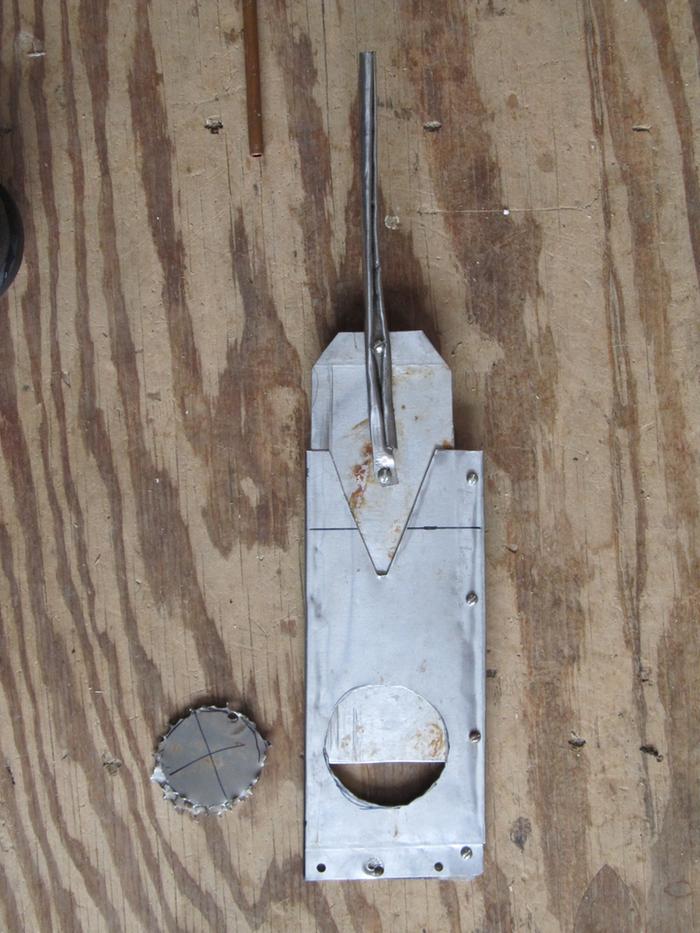

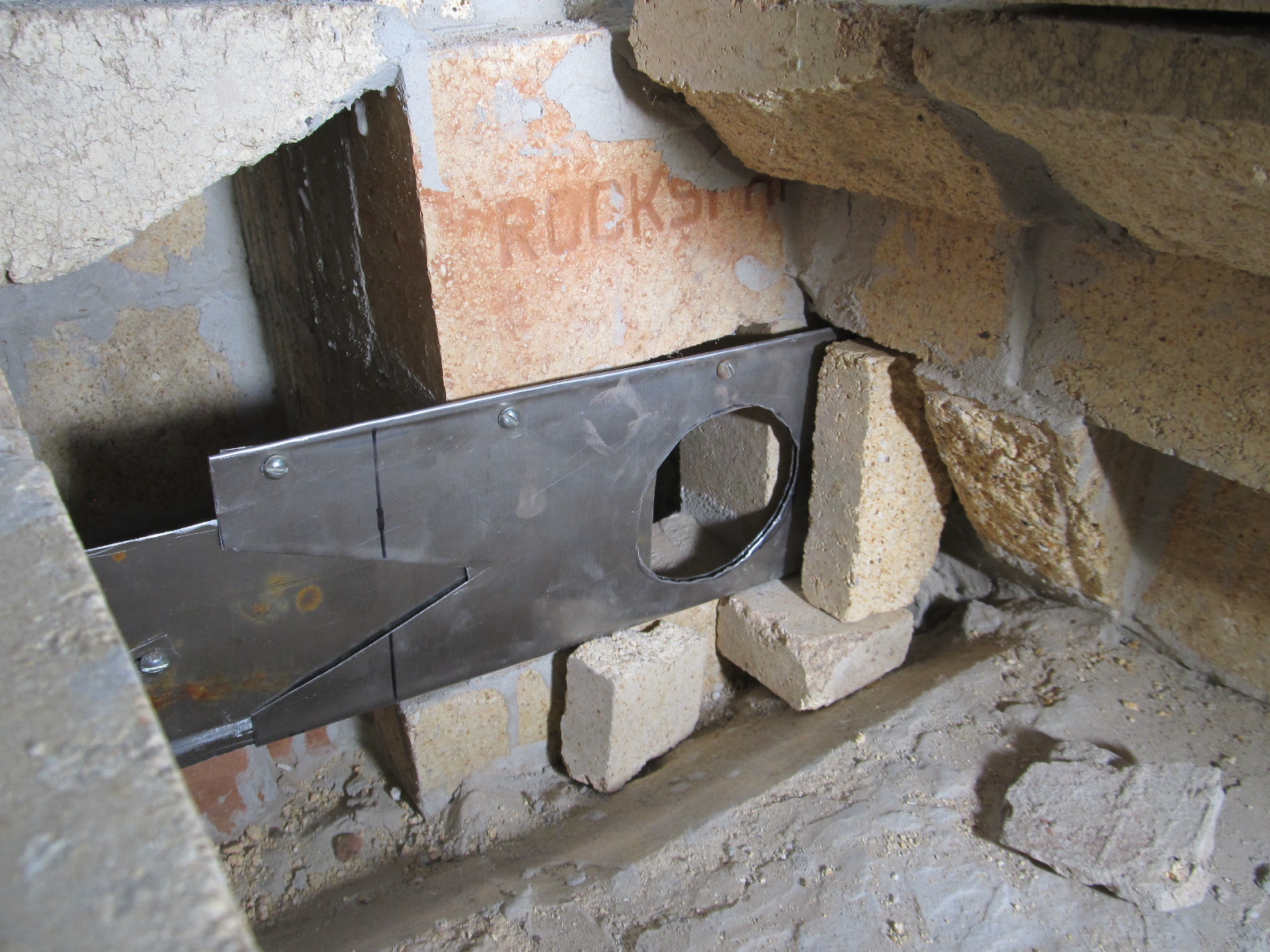

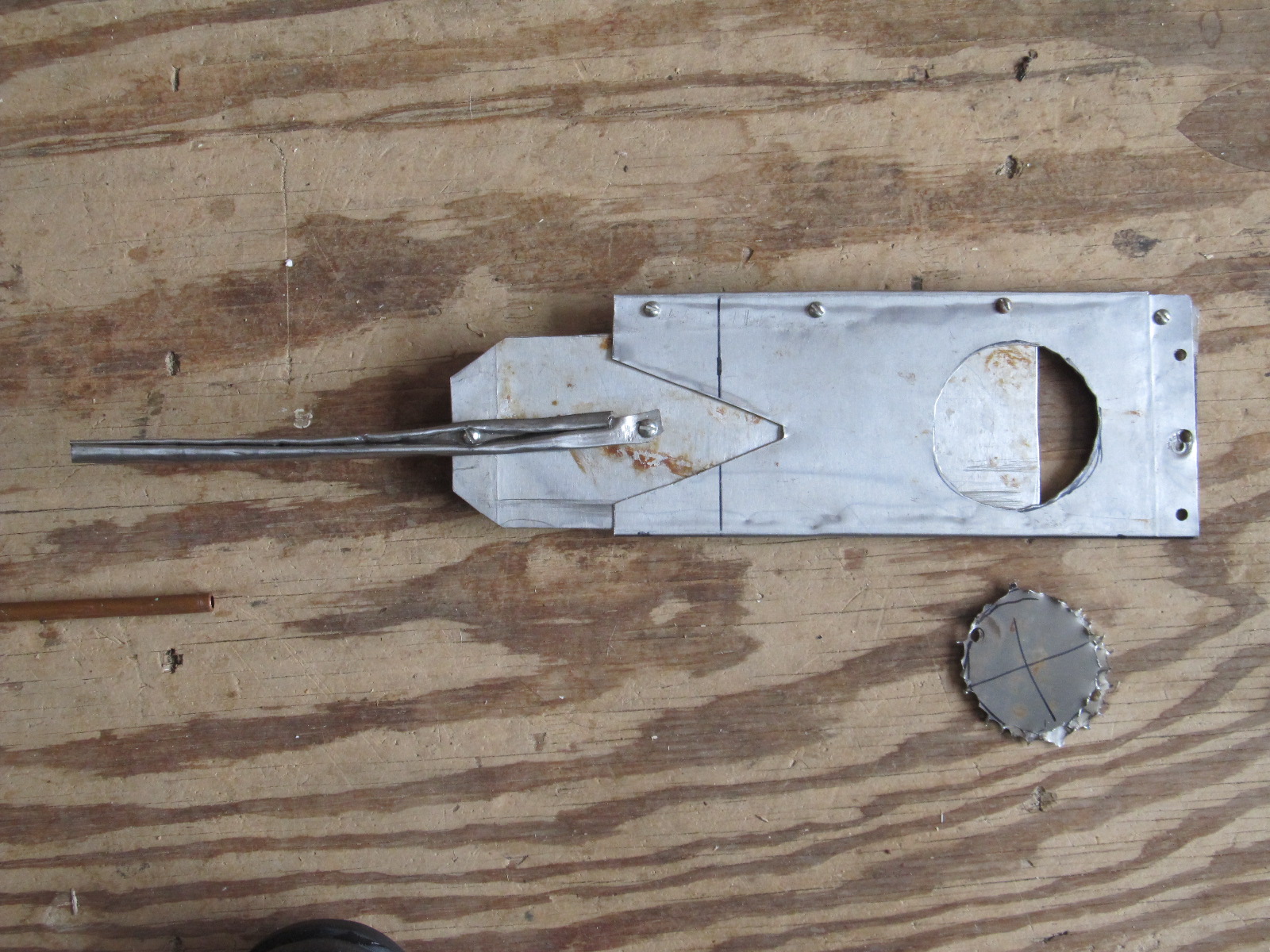

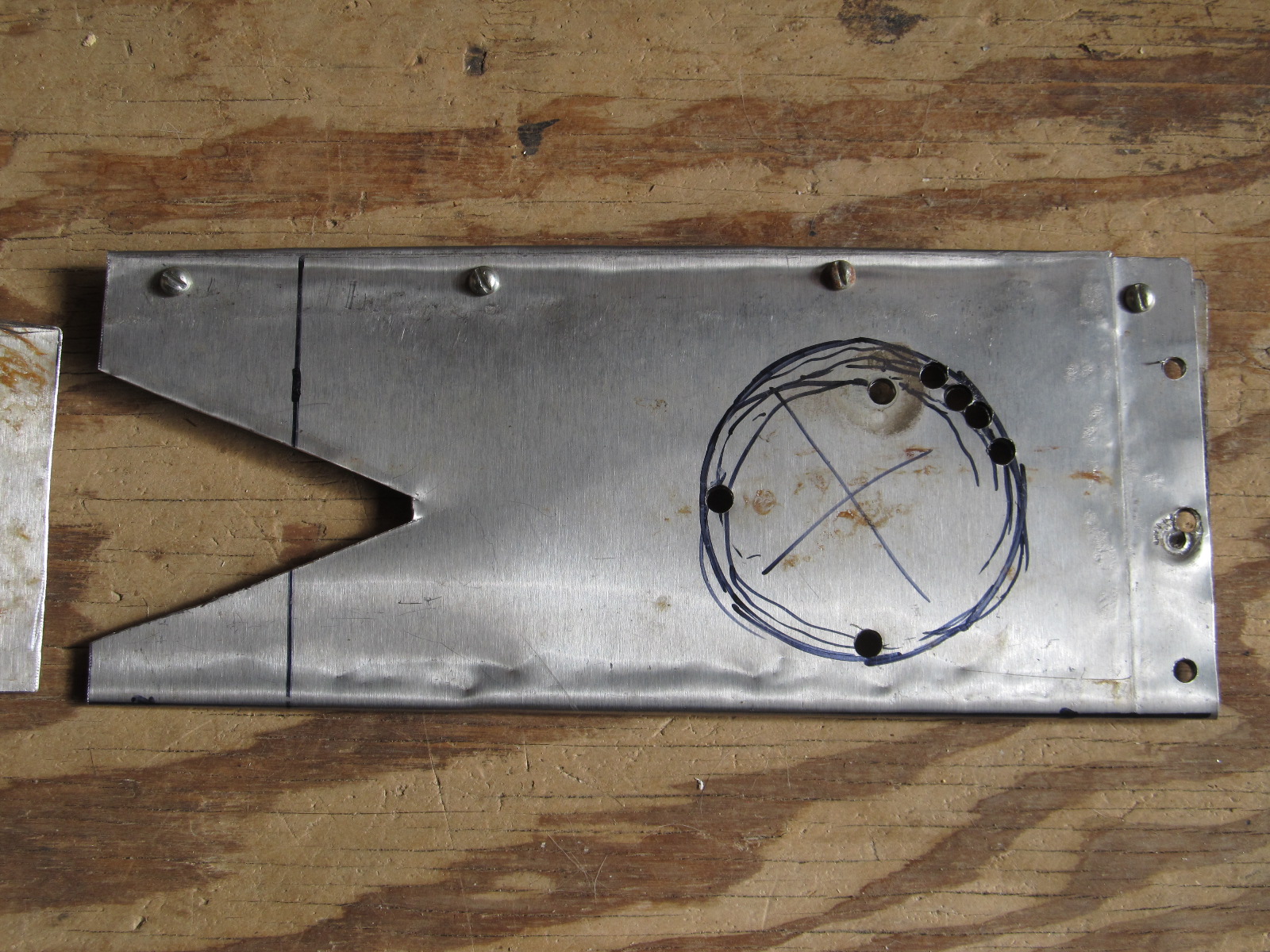

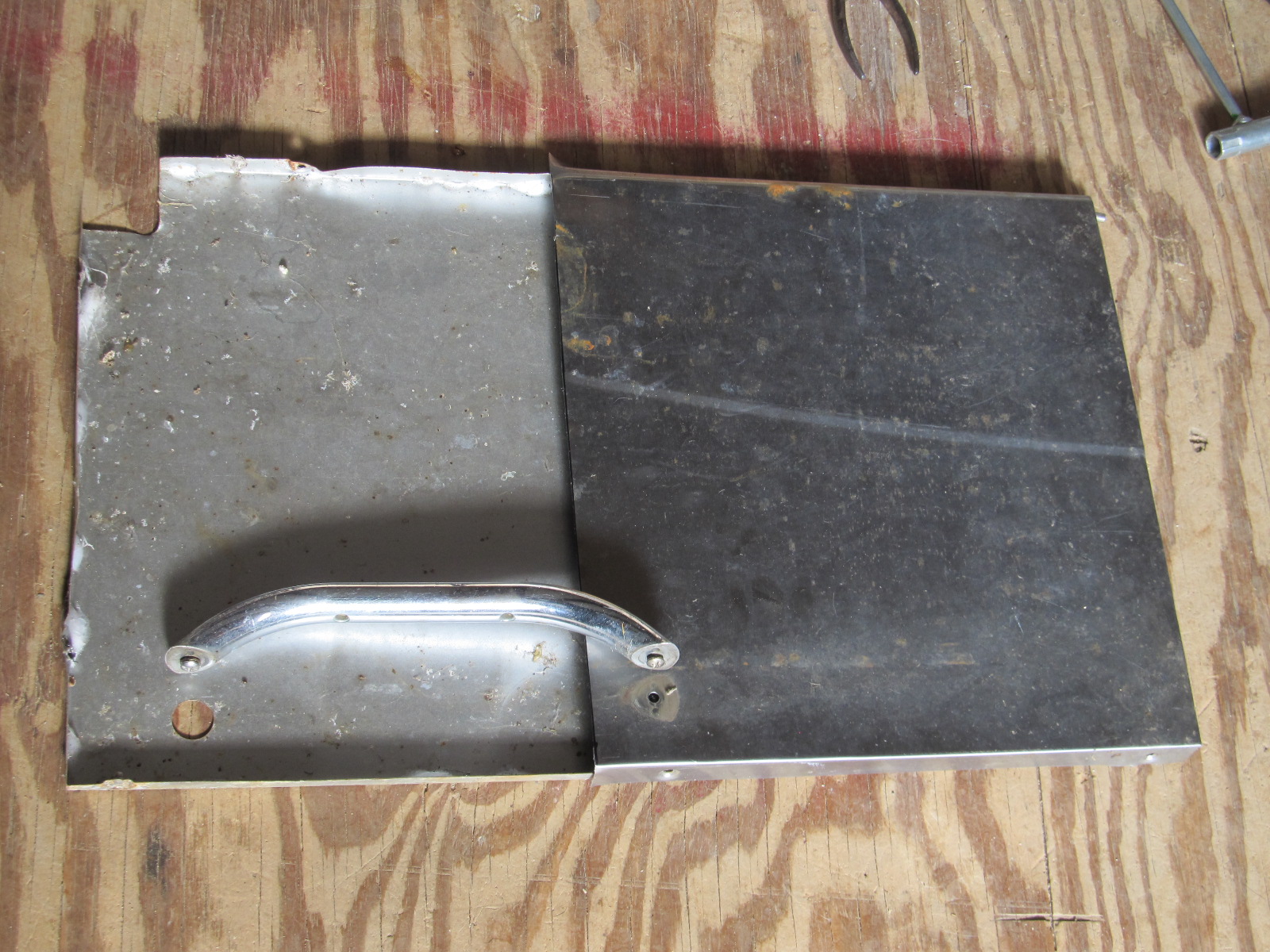

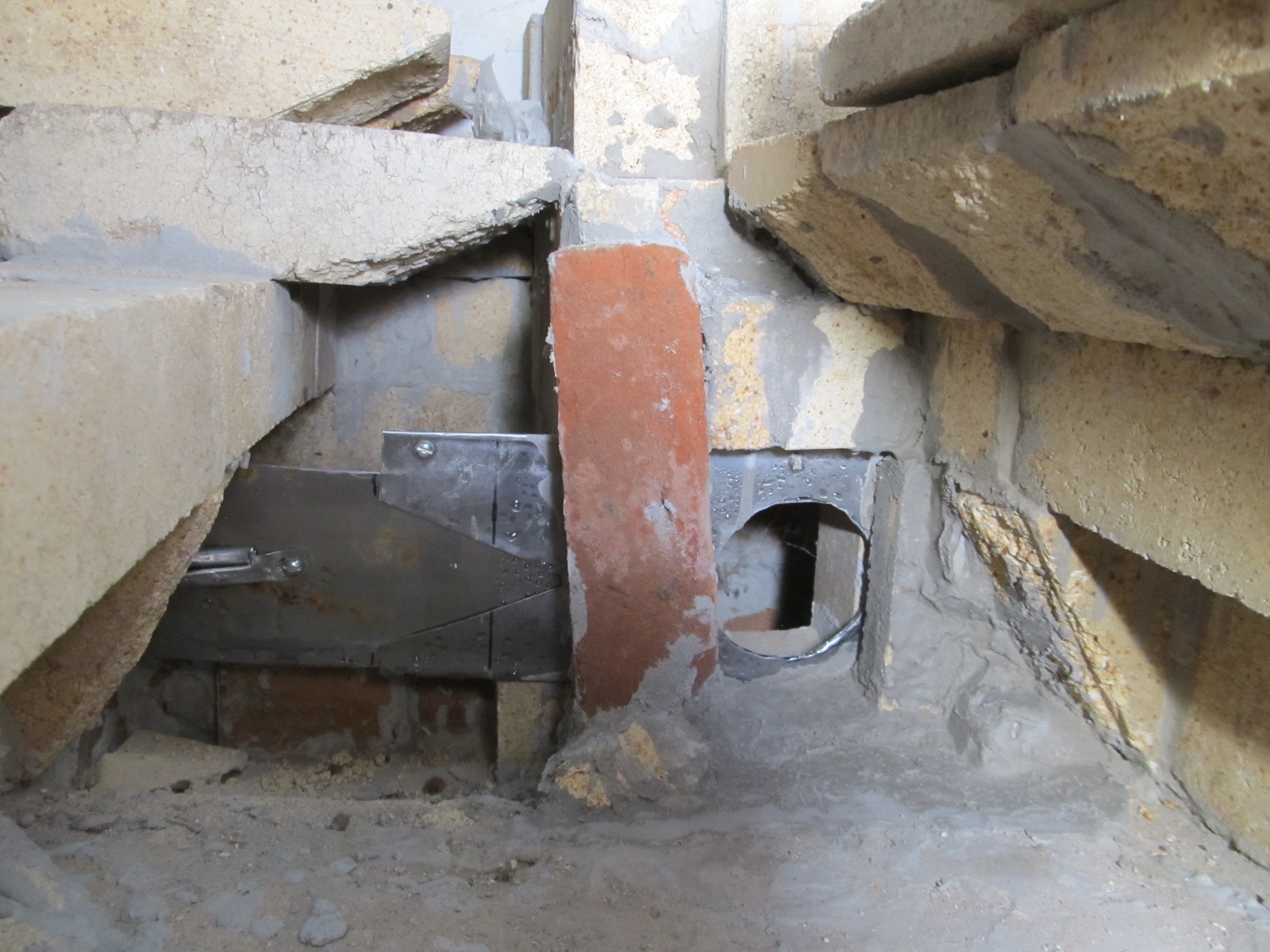

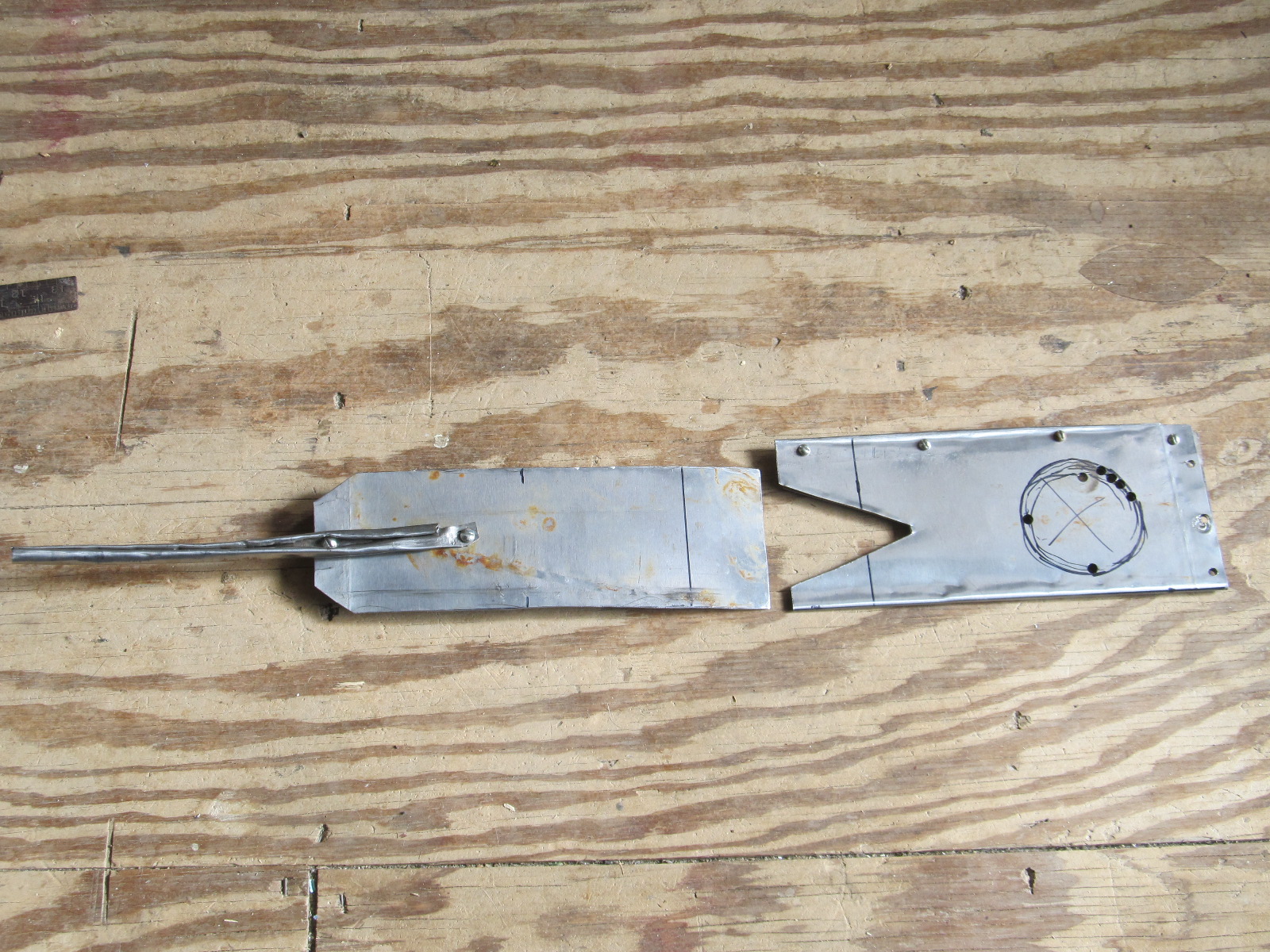

For my build, I'll weld up a sliding damper. Concept sketch attached. Will use same design for closing off the mass to the chimney. In the latter case, I believe the advantage over a rotating damper is that it will not form an obstruction for sweeping the chimney / the damper is not constantly in the flue gas flow.
Never welded so will see how it works out. This design could just be bolted as well, but as Peter has mentioned, you have to avoid your bypass being the weak link in your system (it's the only internal mechanical part).
I will be using thick (3-4mm) plates.
[Thumbnail for PXL_20241025_091111260.jpg]

Salem Posey
Posts: 6
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Glenn Herbert wrote:With your situation, the option of a quick fire that does not heat the mass sounds good. What you would want is a bypass from near the bottom of the barrel to the chimney, so that the whole barrel gets hot. Exiting from the top of the barrel would leave much of it cold. The high bypass idea is strictly for difficult starting situations.

A bypass inside the mass from near the barrel straight to the chimney connection would also work fine, if your layout makes that easy.



Glenn, if I put the bypass at the bottom of the barrel with a damper in it, would I still need a damper in the pipe where it enters the mass after exiting the manifold?

Glenn Herbert
Rocket Scientist
Posts: 4574
Location: Upstate NY, zone 5
599
5
  • Likes 6
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
No, the usefulness of a bypass is that it gives a lower-friction path. A bit of air might still go through the bench, but it would be negligible, especially if the bench is cold.

People have tried multiple-duct routing, and reportedly found that even if you try to make them identical, one path will hog much of the flow. A bypass compared to a whole bench run will be no contest.

Salem Posey
Posts: 6
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Glenn Herbert wrote:No, the usefulness of a bypass is that it gives a lower-friction path. A bit of air might still go through the bench, but it would be negligible, especially if the bench is cold.

People have tried multiple-duct routing, and reportedly found that even if you try to make them identical, one path will hog much of the flow. A bypass compared to a whole bench run will be no contest.




Ok. Thank you for the help. I have another question. I was about to start building my firebox and heat riser with clay slip. I just checked the weather and we are supposed to have freezing temperatures starting tonight. Will it cause a problem if that clay slip sealing off the firebrick isn’t completely dry and it freezes?

Glenn Herbert
Rocket Scientist
Posts: 4574
Location: Upstate NY, zone 5
599
5
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Freezing would compromise damp clay. If it is just at night, I would simply put a couple old blankets or whatever you have over it. A light bulb or the equivalent under the blankets would help.

Glenn Herbert
Rocket Scientist
Posts: 4574
Location: Upstate NY, zone 5
599
5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I merged your stuff with the following thread. I hope that is okay by you.

Salem Posey
Posts: 6
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I am wanting to start erecting my firebrick “J” tube using clay slip as sealer/mortar. Freezing temps are expected overnight for the next few nights. Will this have a negative affect on the clay slip? Do I need to try to keep it from reaching freezing temps in my little cabin?
Never worked with clay slip so any help would be appreciated!

Posts: 622
Location: Sierra Nevada foothills, 350 m, USDA 8b, sunset zone 7
108
  • Likes 6
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Salem,

Any mortar that is water based and allowed to freeze when wet will have structure damaged and microscopic bonds between the mortar and the material cracked and weakened to the extent depending on freeze penetration depth and time.
I would suggest the following:
-add 10 % portland cement to accelerate drying
or/and
-preheat the bricks in some fire pit - they will hold enough heat to prevent any freeze damage
On top of that you can cover entire structure with a blanket.

When I was building a brick vault in my barn and temperatures were below freezing at night, I filled 5 gal buckets with hot water and put under the structure and also covered the vault with blankets on the outside.

I think I'll just lie down here for a second. And ponder this tiny ad:
A PDC for cold climate homesteaders
http://permaculture-design-course.com
reply
