the first wofati - allerton abbey- version 0.7  RSS feed


Posts: 7
Location: Seattle, Washington
12
  • Likes 8
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
here's a picture taken at the end of today!
[Thumbnail for 20131002_181525.jpg]

Posts: 18
13
  • Likes 4
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Just got to the land this week. Thank you uncle sam for the free time. Anyhow been peeling logs like crazy for this lincoln log house. Progress as of Friday, Oct 4th.

[Thumbnail for DSC06923.JPG]

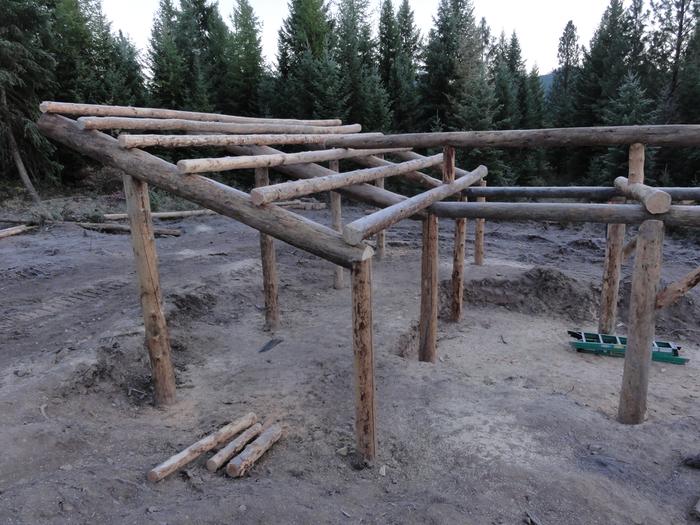

Wofati 0.7 Beta Side
[Thumbnail for DSC06927.JPG]

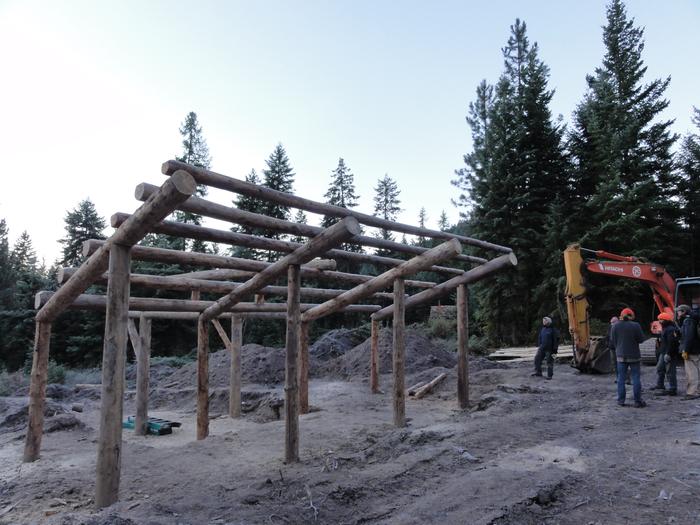

Wofati 0.7 Beta Front
[Thumbnail for DSC06935.JPG]
Wofati 0.7 Beta Back

pollinator
Posts: 1471
Location: Vancouver Island
31
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Ah, great pictures. These are the first ones that (to me) show the land as being anything besides flat. I can see some grade here. Has anyone actually measured that or have a good guess as to what the grade is? (edit... just looked closer at the drawings, looks like 3 in 10 rise to run in the drawings... still "looks" less to me in the pics)

I had read that this is quite small. It looks small, but then I have lived in an RV before and think it is big enough. Time will tell how many "indoor" activities are possible under the overhang on the uphill side (I am thinking words like front or back or side don't apply).

Posts: 6
Location: On the West Coast...Eureka, Ca.
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Good work...that's one nice looking frame ;o)

Anthony Aiuppa
Posts: 18
13
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Had to go cut some trees, here are the rest showing some of the joinery.
[Thumbnail for DSC06928.JPG]
[Thumbnail for DSC06930.JPG]
[Thumbnail for DSC06932.JPG]

Anthony Aiuppa
Posts: 18
13
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
more...
[Thumbnail for DSC06933.JPG]
[Thumbnail for DSC06934.JPG]
[Thumbnail for DSC06936.JPG]

Anthony Aiuppa
Posts: 18
13
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
more...
[Thumbnail for DSC06937.JPG]

Anthony Aiuppa
Posts: 18
13
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
more photos
[Thumbnail for DSC06945.JPG]

Anthony Aiuppa
Posts: 18
13
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
more joints
[Thumbnail for DSC06947.JPG]
[Thumbnail for DSC06951.JPG]
[Thumbnail for DSC06952.JPG]

steward
Posts: 2948
Location: Moved from south central WI to Portland, OR
517
bee bike chicken food preservation hugelkultur urban
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Wow.

Just wow.

gardener
Posts: 333
38
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Absolutely the most awesome thing I have seen this year!

Posts: 138
Location: montana
29
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
progress on the wofati today (october 7, 2013). The walls going up:
[Thumbnail for IMG_2764.JPG]
wofati walls
[Thumbnail for IMG_2767.JPG]
wofati walls
[Thumbnail for IMG_2769.JPG]

Emily Aaston
Posts: 138
Location: montana
29
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
more walls and a storm brewing:
[Thumbnail for IMG_2771.JPG]
[Thumbnail for IMG_2774.JPG]
[Thumbnail for IMG_2775.JPG]

Emily Aaston
Posts: 138
Location: montana
29
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
more angles:
[Thumbnail for IMG_2776.JPG]
[Thumbnail for IMG_2778.JPG]
[Thumbnail for IMG_2780.JPG]
untrimmed walls

Emily Aaston
Posts: 138
Location: montana
29
  • Likes 4
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
finishing up for the day:
[Thumbnail for IMG_2779.JPG]
[Thumbnail for IMG_2782.JPG]
cameron and tim placing the last log of the day (5 walls today!)
[Thumbnail for IMG_2783.JPG]

Alex Ojeda
gardener
Posts: 333
38
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Do you guys have Dick Proenneke running around up there?! Beautiful stuff!

Posts: 41
Location: New Jersey Shore
9
chicken forest garden urban
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Hi,
I have a question. I am curious to know how the logs that form the walls are being held in place.

My guess would be that you are using like a giant 80d nail or commonly called a dock spike, but that is just a guess.

-Kevin

Posts: 32
Location: Ohio
1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

Alex Ojeda wrote:Do you guys have Dick Proenneke running around up there?! Beautiful stuff!



Dick Proenneke what a badass! I could watch that documentary over and over.

This is really greatly inspiring to see as it progresses. Looking to buy 5-20 acres in the next couple years and get a rough cabin on site to start working on a permanent home. Sort of the grub steak concept but leaning more toward a get away cabin than a permanent living structure.

There appears to be quite a bit of jointing going on, how solid is this thing? Say if someone were to goof and back the track hoe into it, would it budge?

Anthony Aiuppa
Posts: 18
13
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Kevin, since speed is currently of utmost importance large 8" timberlock screws are being used as fasteners. They are however expensive in quanity. In future construction the hope is to find alternative solutions that trade time skill and ingenuity for expense.

Posts: 24
1
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
My name is matt beckman, and I have been running the wofati project. The structure is very solid. I put the excavator bucket on the Perlines to give it a nudge. And the structure stood strong. this structure as long at the umbrella is done right will last for many years.

Emily Aaston
Posts: 138
Location: montana
29
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
some photos from today: roof going up!
[Thumbnail for IMG_2785.JPG]
charging the bad boy buggie
[Thumbnail for IMG_2787.JPG]
peeling logs
[Thumbnail for IMG_2793.JPG]
preparing roof logs

Emily Aaston
Posts: 138
Location: montana
29
  • Likes 5
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
more logs going up
[Thumbnail for IMG_2792.JPG]
first few logs up
[Thumbnail for IMG_2800.JPG]
untrimmed roof logs
[Thumbnail for IMG_2804.JPG]
logs dropping

Posts: 13
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Wow is that thing looking good. And definitely living up to the "Freaky Fast" in it's name.

Posts: 1442
Location: Fennville MI
40
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Question- where is the annualized solar part? When I think about this stuff, I always see doing that part first.

gardener
Posts: 213
Location: 40N 112W On the Edge Between the High Steppe and High Desert
48
forest garden greening the desert hugelkultur solar tiny house wofati woodworking
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
If I understand correctly, it's not annualized solar but annualized thermal inertia (the ATI in WOFATI). It has to do with using an "umbrella" to make use of the earth's more constant temperature. http://paulwheaton12.wordpress.com/2012/11/28/passive-annual-heat-storage-2/ So it would be addressed later with the layers of poly/newspaper/etc.

Peter Ellis
Posts: 1442
Location: Fennville MI
40
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Jesse, the "umbrella" is part of passive annualized solar. The naming variations just lend to confusion, when the same principles are applied using similar, or identical techniques.
Since so much of the mechanism for making it work is underground, it seems like something you do when you lay your foundation, not after you have structure in place that can be destabilized if you dig too close.

Posts: 25
Location: Central Maine (Zone 4b)
3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Wow you guys are fast! Things look great so far. I'm paying close attention to this one.

Posts: 76
Location: Missoula,MT
1
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Nice work guys. Walls look great. There has been a lot of progress since I left.
[Thumbnail for image.jpg]
[Thumbnail for image.jpg]
[Thumbnail for image.jpg]

Caleb Larson
Posts: 76
Location: Missoula,MT
1
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
And a few more pics from my phone.
[Thumbnail for image.jpg]
[Thumbnail for image.jpg]
[Thumbnail for image.jpg]

Emily Aaston
Posts: 138
Location: montana
29
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
retaining walls are up, and mostly cut!
[Thumbnail for IMG_2836.JPG]
back retaining walls
[Thumbnail for IMG_2837.JPG]
[Thumbnail for IMG_2818.JPG]

Emily Aaston
Posts: 138
Location: montana
29
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
more retaining wall photos
[Thumbnail for IMG_2813.JPG]
installing the walls
[Thumbnail for IMG_2840.JPG]

Emily Aaston
Posts: 138
Location: montana
29
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
gable roof going up too!
[Thumbnail for IMG_2838.JPG]
[Thumbnail for IMG_2839.JPG]

Emily Aaston
Posts: 138
Location: montana
29
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
today: lots of fine tuning and preping the wofati to take the first tarp layer.
[Thumbnail for IMG_2841.JPG]
[Thumbnail for IMG_2845.JPG]
first tarp up!

Posts: 151
Location: Hudson Valley, NY
13
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I know its not done yet, but so far has it been harder than expected, easier than expected, or is this a dumb question because you guys had no expectations to begin with?

And its inspiring to see. Awesome job guys.

Posts: 58
1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

paul wheaton wrote:Yes! Looks good!



It looks like a lot of tough angles when fitting together the beams, but I assume you can notch and miter. You might not know that Boyce Lumber (in Missoula)- gives us contractor prices on things we buy a ton of (torque screws, mounting brackets) and, they give free advice. They have a computer they can enter support beams and distances into to calculate loads. There are tables I can give you to look that stuff up online, but I've found going in to give them numbers and sketches saves a ton of time. There's another company you can free advice at too in Missoula, but I like the guys at Boyce.

Noah Jackson
Posts: 58
1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

Noah Jackson wrote:

paul wheaton wrote:Yes! Looks good!



It looks like a lot of tough angles when fitting together the beams, but I assume you can notch and miter. You might not know that Boyce Lumber (in Missoula)- gives us contractor prices on things we buy a ton of (torque screws, mounting brackets) and, they give free advice. They have a computer they can enter support beams and distances into to calculate loads. There are tables I can give you to look that stuff up online, but I've found going in to give them numbers and sketches saves a ton of time. There's another company you can free advice at too in Missoula, but I like the guys at Boyce.



Great to see the photos. Nice work for sharing; we know how much extra time and passion this takes!

Lab Ant
Posts: 753
Location: ephemeral space
588
greening the desert
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Beautiful! Inspiring!

Question: How deeply are those posts buried? Or are they just sitting on the surface of compressed earth? Also, what, if anything, was used to protect them from rot?

Thank you.

Emily Aaston
Posts: 138
Location: montana
29
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
after a lull in wofati-building while the workshops happened, we're back at it and there is some dirt on the roof!
[Thumbnail for IMG_3117.JPG]
gable roof going up
[Thumbnail for IMG_3121.JPG]
many layers of tarps on the roof and walls!
[Thumbnail for IMG_3136.JPG]
gable roof

Emily Aaston
Posts: 138
Location: montana
29
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
more shots from today:
[Thumbnail for IMG_3124.JPG]
dirt on the roof!
[Thumbnail for IMG_3130.JPG]
[Thumbnail for IMG_3133.JPG]
is there a house there?
