Will my thin horizontal beam not break down the middle under a heavy load?


pollinator
Posts: 138
Location: Lithuania 55ºN
28
5
forest garden foraging writing
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I didn't have enough thick logs for the front of my house, so I used the thickest I had, a ~12cm (4.75in) spruce, and last fall I made the joint. I recently disconnected the mortise because I forgot to drill peg holes last season and I see the wood has split down the middle a considerable bit (see the photos). I'm worried it could crack in half with enough weight, especially as it supports the roof. Will an oak peg suffice to keep the log together no matter the load? or should I bite the bullet and redo the horizontal beam with something thicker? The roof will be on a 55º angle and can I get away with pegging it together and inserting a vertical beam down the center and two wind braces to make up for the thin beam?

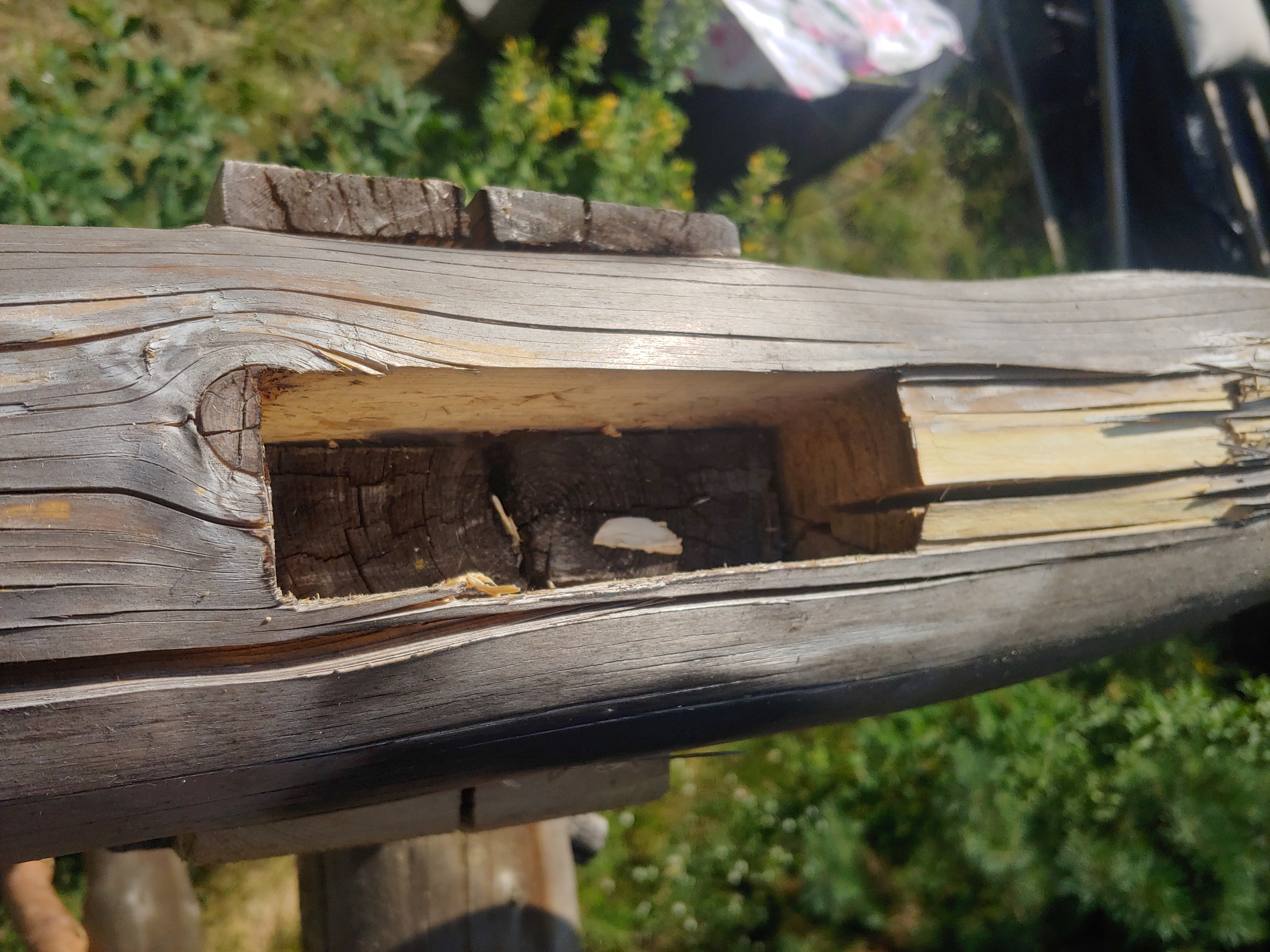

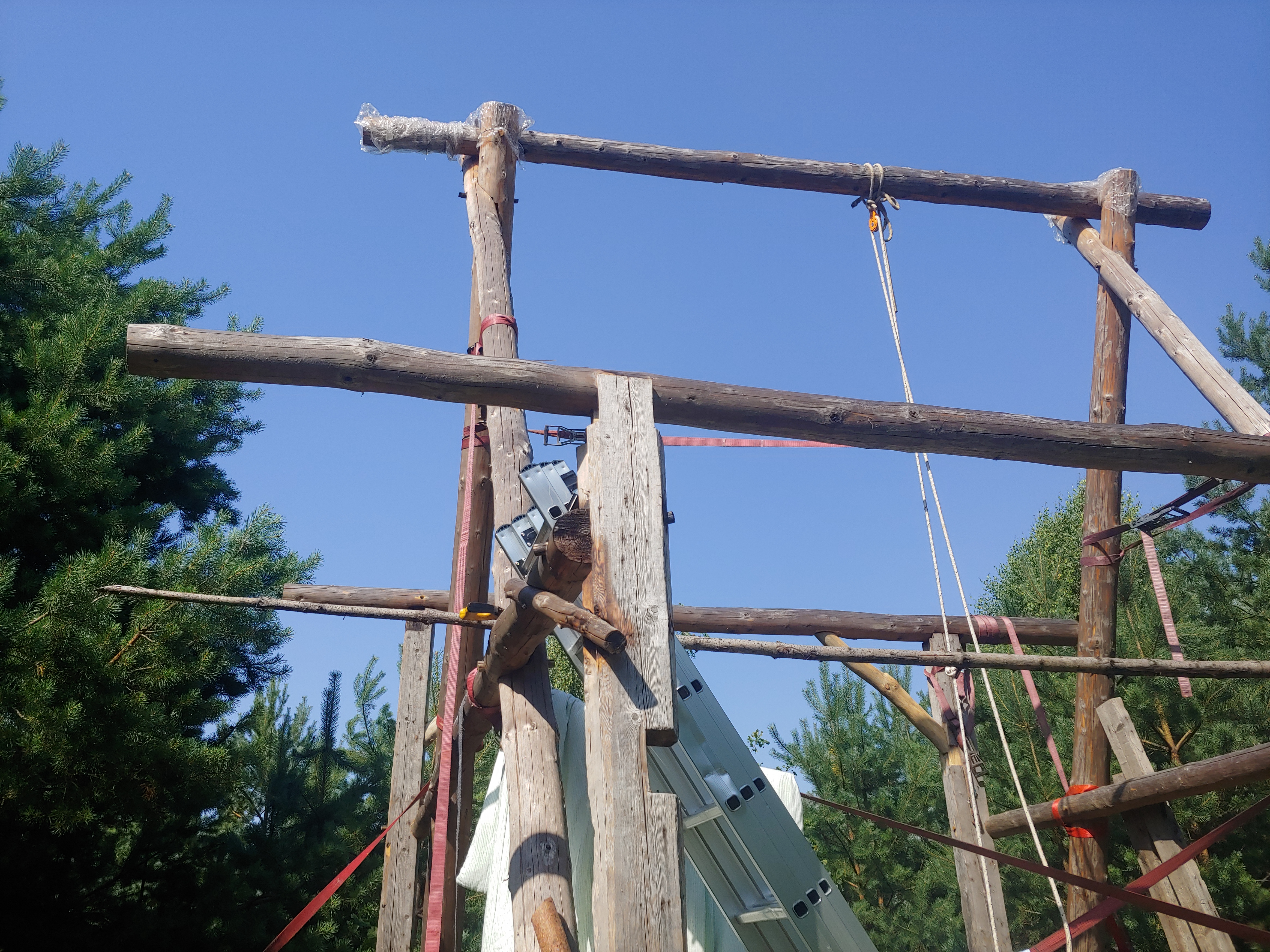

Front corner of the house in question
Front corner of the house in question

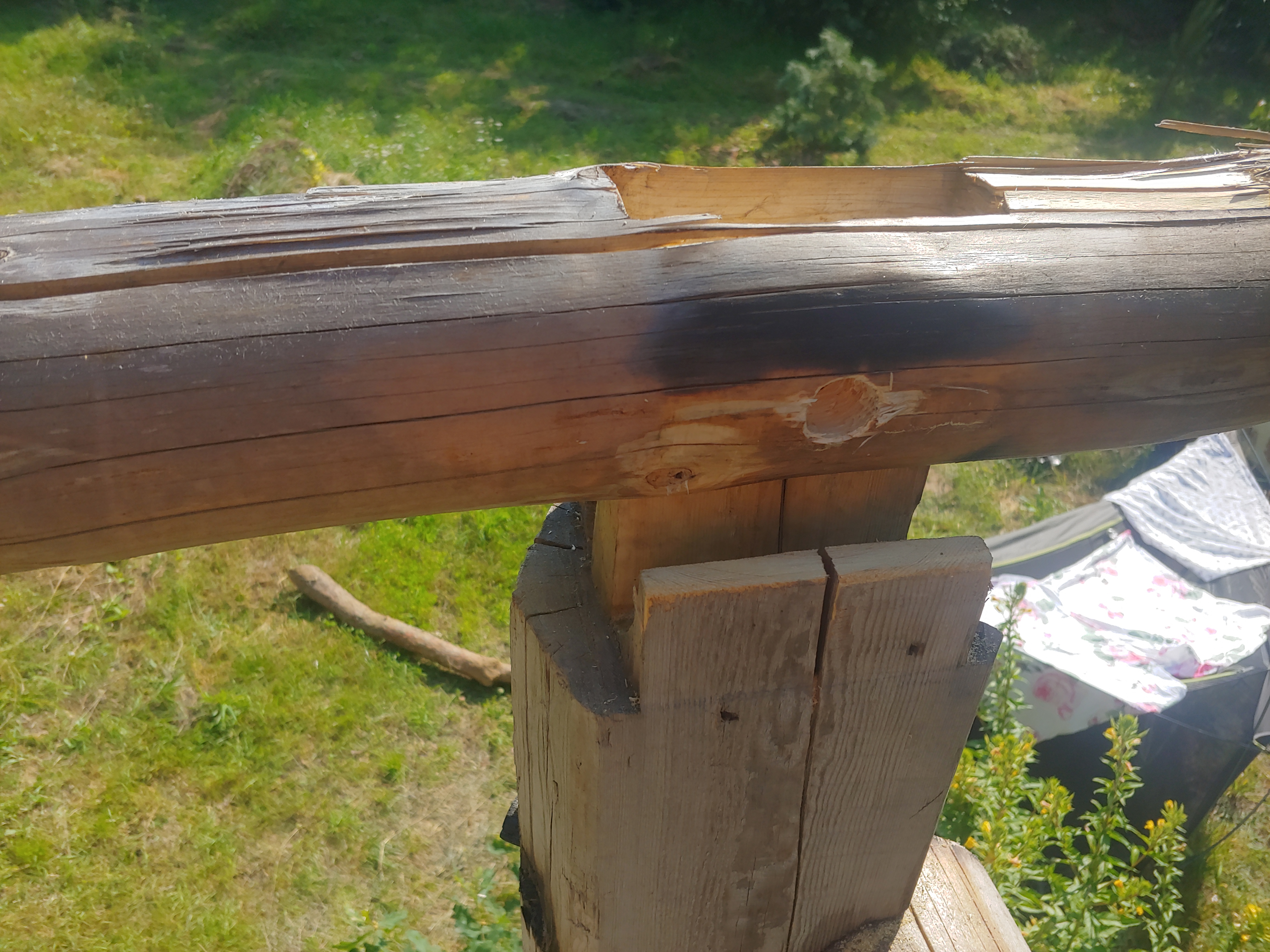

The joint looks flimsy
The joint looks flimsy

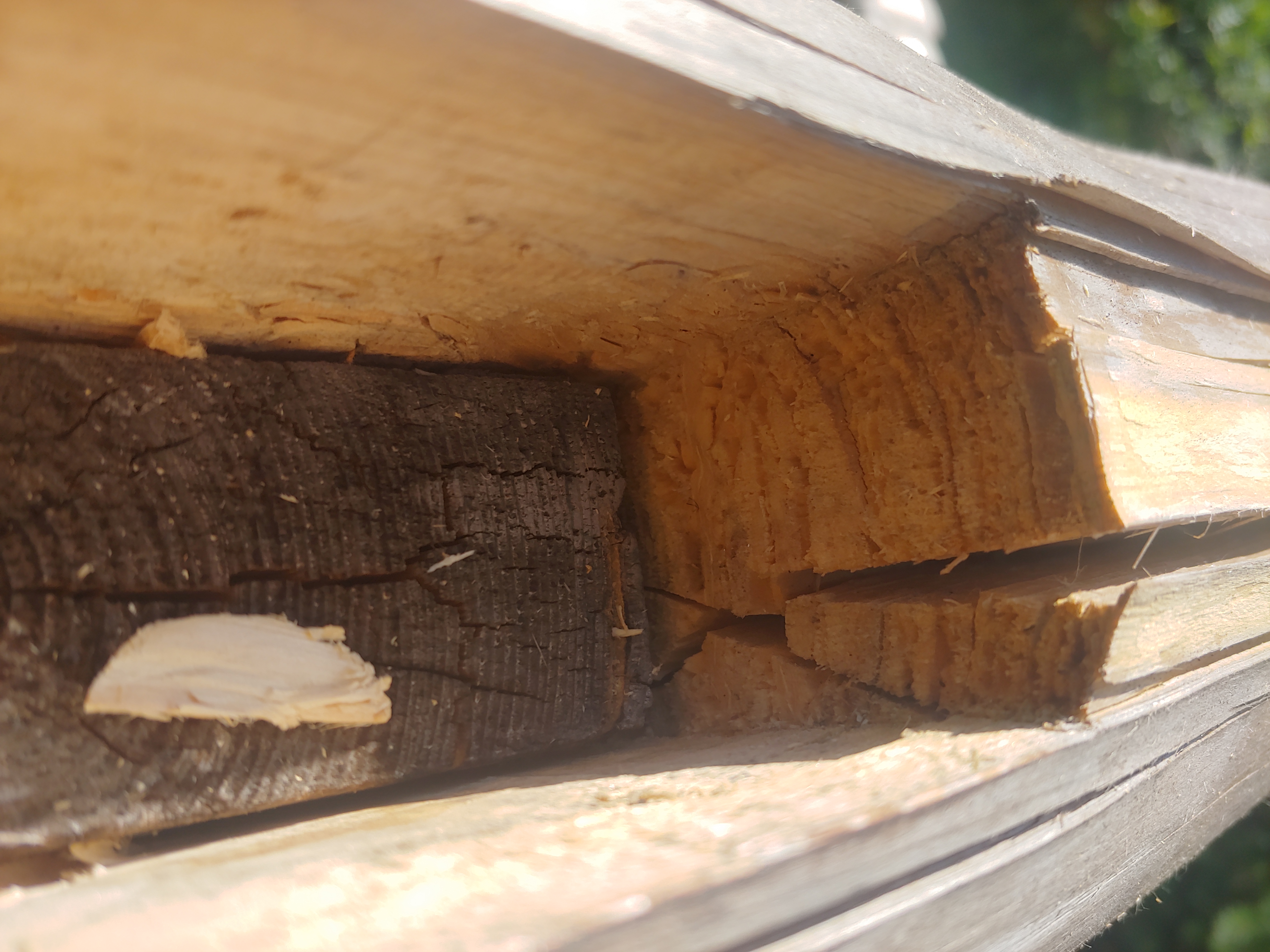

3.6cm (1.4in) mortise on a ~12cm (4.75in) beam
3.6cm (1.4in) mortise on a ~12cm (4.75in) beam

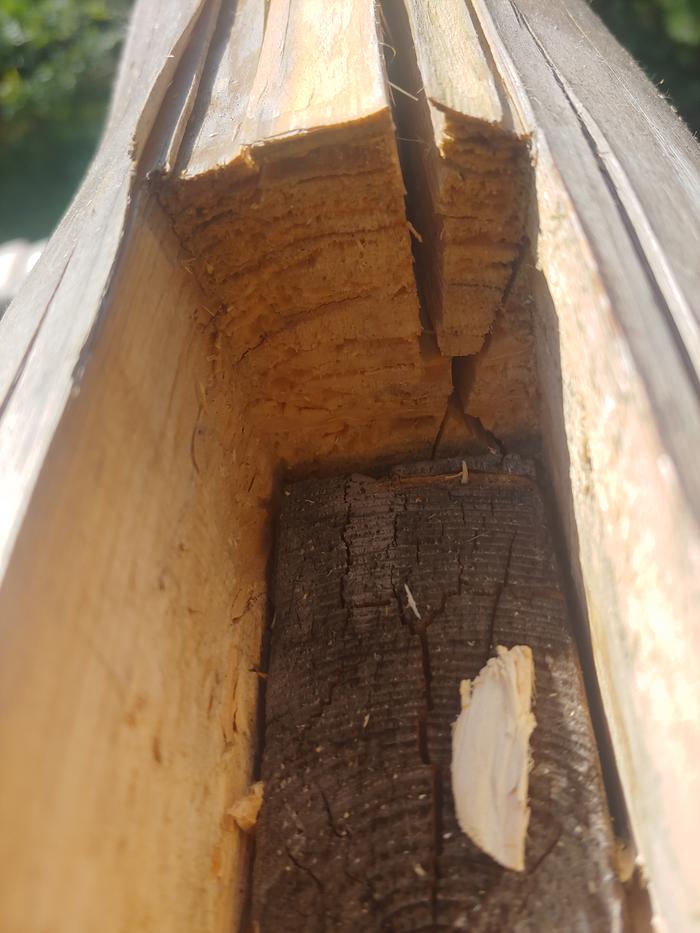

[Thumbnail for 20220722_162903_HDR.jpg]

master steward
Posts: 7629
Location: southern Illinois, USA
2818
goat cat dog chicken composting toilet food preservation pig solar wood heat homestead composting
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I would replace it .

master rocket scientist
Posts: 6748
Location: latitude 47 N.W. montana zone 6A
3621
cat pig rocket stoves
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi Maruf;
I'm only a part time wood worker so my opinion is of limited value at best.

Your right, that joint looks a bit flimsy but, its job is not to support weight but to stabilize the structure.
Once seated that joint will bear weight over the size of your vertical post.
Adding two diagonal braces from the vertical up to the horizontal will strengthen and stabilize the roof.
You can always put a steel band around the cracking part of the log if it concerns you at a later date.

55 degree roof is an A frame structure  you will not have any snow buildup up high at all  so the only weight up there will be the roofing materials and the roofers while installing.

It is always best to over build a structure but sometimes you work with what you have.

In a perfect world you would replace that beam.
If you do replace it, you will still want diagonal braces from the vertical log to the horizontal.
If you have the room then diagonals AND a vertical post in the middle would be ultra strong (over kill)

Maruf Miliunas
pollinator
Posts: 138
Location: Lithuania 55ºN
28
5
forest garden foraging writing
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Thank you for your detailed insight Thomas. Your response makes sense, hence I would prefer not to replace it, but instead to overbuild supports because thicker wood is not so easy to come by.

John, do you have any further reasoning to support your reply?

John F Dean
master steward
Posts: 7629
Location: southern Illinois, USA
2818
goat cat dog chicken composting toilet food preservation pig solar wood heat homestead composting
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
If the pictures reflect where the project stands now, I would replace it rather than to have regrets in the future.  If the project was further along, I would probably leave it in place.

pollinator
Posts: 5676
Location: Bendigo , Australia
514
plumbing earthworks bee building homestead greening the desert
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Can you drill holes horizontally through the log and install some metal plates [ horror!! ] on both sides to reinforce it?

pollinator
Posts: 1455
Location: BC Interior, Zone 6-7
516
forest garden tiny house books
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I don't have a lot of experience, but that looks sketchy as hell to me. I'm with John on this one. It's not so hard to replace at this point.

If you are going to use it, I think a bunch of 1/4" bolts with big washers on either end might work better than a steel band to stabilize the split. I'm not sure how you'd get the band good and tight.

What are you going to use for roofing? Even at that angle, wet snow could build up on something like shingles. And wet snow is heeeaavy. Every January, the roof collapses start happening here, and we build for snow.

Jan White
pollinator
Posts: 1455
Location: BC Interior, Zone 6-7
516
forest garden tiny house books
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Oh, sorry, John. I started my reply a while ago, got busy with something else, then just hit submit without seeing your last reply. Steel plates might be better than bolts.

Maruf Miliunas
pollinator
Posts: 138
Location: Lithuania 55ºN
28
5
forest garden foraging writing
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Thank you for the replies. I decided I will bite the bullet and I managed to find a tree with twice the diameter (overkill) that fell this past season.

Maruf Miliunas
pollinator
Posts: 138
Location: Lithuania 55ºN
28
5
forest garden foraging writing
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

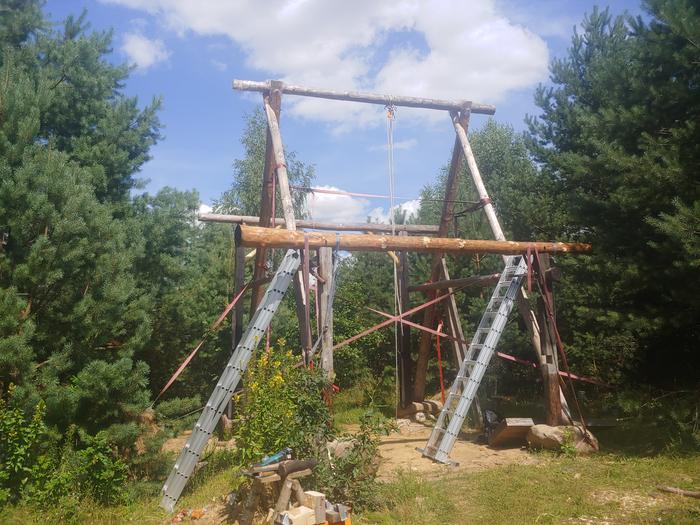

I ended up replacing it with a hulk.
[Thumbnail for 16591789870567128185687412767039.jpg]
