Is dovetail joinery for greenwood timber frame a good joinery style? Any difference joineries sugges


Posts: 35
2
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Logs are going to be like 8 x 8. I suppose dovetail would work for all joinery and I believe the simplest. Any other joinery better? Would a male / female connector joinery with pegs be superior?

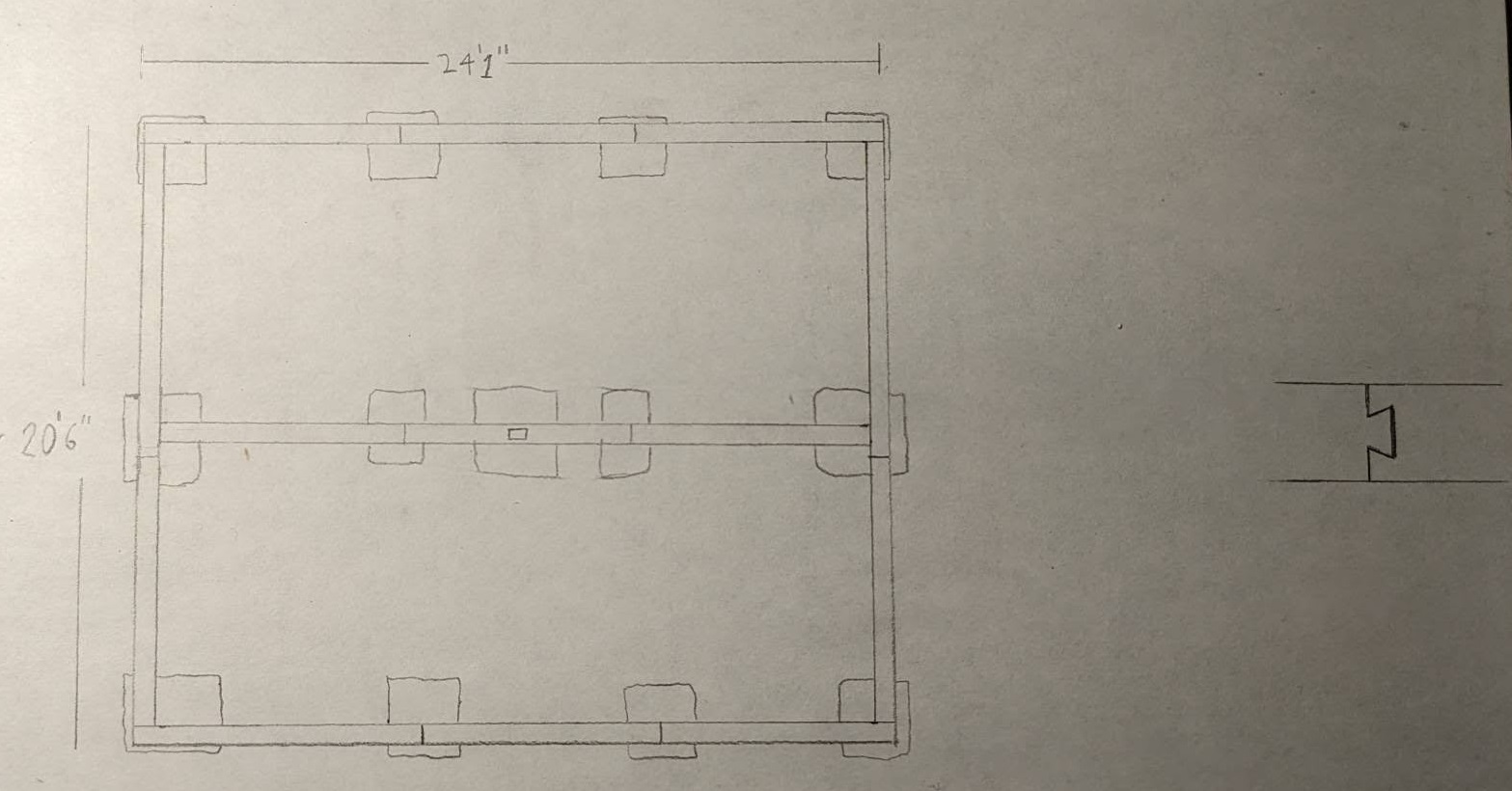

The picture is a birdseyeview of a 20' x 24' foundation (stone pillars) and the woodenbeams which will be joined together with joinery. The beams will be acting as a sill plate for the joists.
[Thumbnail for is-dovetail-joinery-for-greenwood-timber-frame-a-good-v0-s1dlambq7c0b1.jpg]

Posts: 720
153
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
You can, but most timber frames use mortise and tenon joinery. They do use dovetails on the joists, but your plan does not show them.

I also noticed you have a lot of joinery in your plan. At only 24 feet, why not just get 24 ft beams, do your corners and then mortise in your center carting beam. You would reduce your jointers work by 2/3 and have a much more ridged structure? With a frame that is kind of required.

steward
Posts: 15977
Location: Northern WI (zone 4)
5097
8
hunting trees books food preservation solar woodworking
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I've tried a bit of dovetail joinery on greenwood and it failed.  The green wood just wasn't strong enough to hold when stress was applied.  I'm guessing if I let it sit for a year and then stressed it, it would've been fine.

gardener
Posts: 1883
Location: Trochu, near Calgary, Canada
272
2
homeschooling forest garden books
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Beau and the PTJ crew built this grape arbor and he demonstrated using a dovetail joint in this video:


But I'm not totally sure if the timber is greenwood or cured.
