Tent in a high tunnel with wood burning stove


Charolett Knapic
Posts: 41
13
posted 2 months ago
  • Likes 8
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
My friend is living in a year round tent on an 11 acre pasture from her family and is gradually building a homestead. She was donated a high tunnel and I suggested that she put her tent inside the tunnel for the winter, since last winter was so cold that the mini wood burning stove couldn't stay stoked enough to get much sleep. She got a little bigger stove and we're working out details for the chimney without melting the plastic but has anyone experienced this? You can see the tent inside and we're setting up the stove chimney.

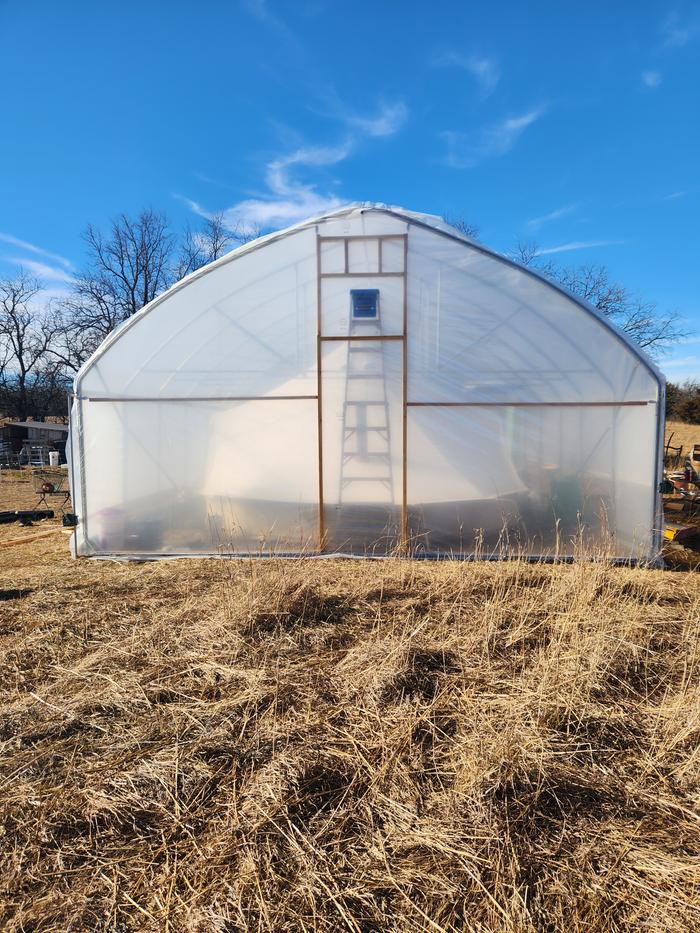

east side
east side
outer chimney frame
outer chimney frame

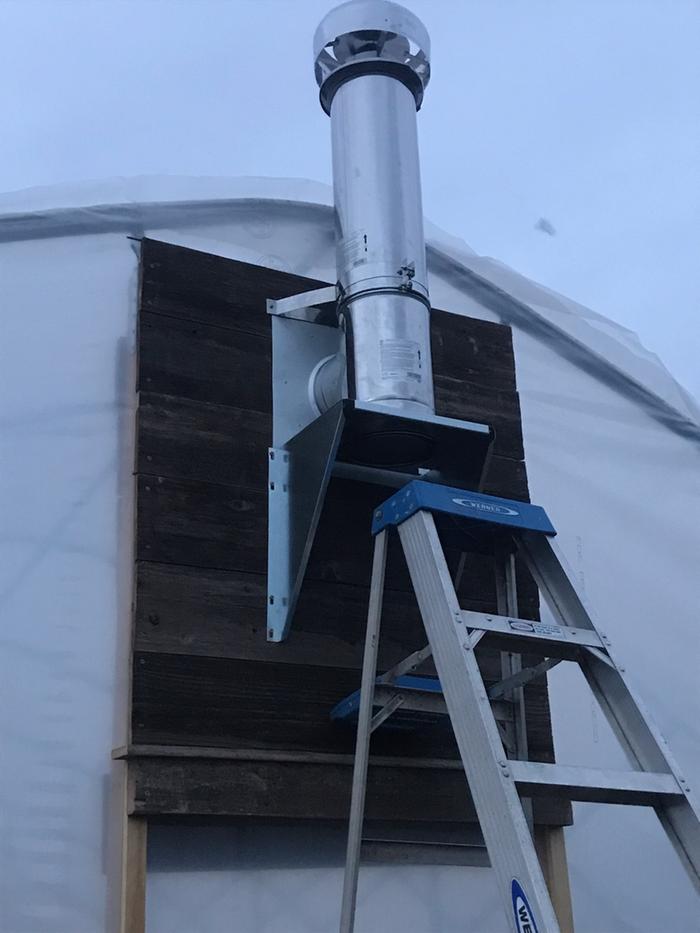

outer chimney
outer chimney

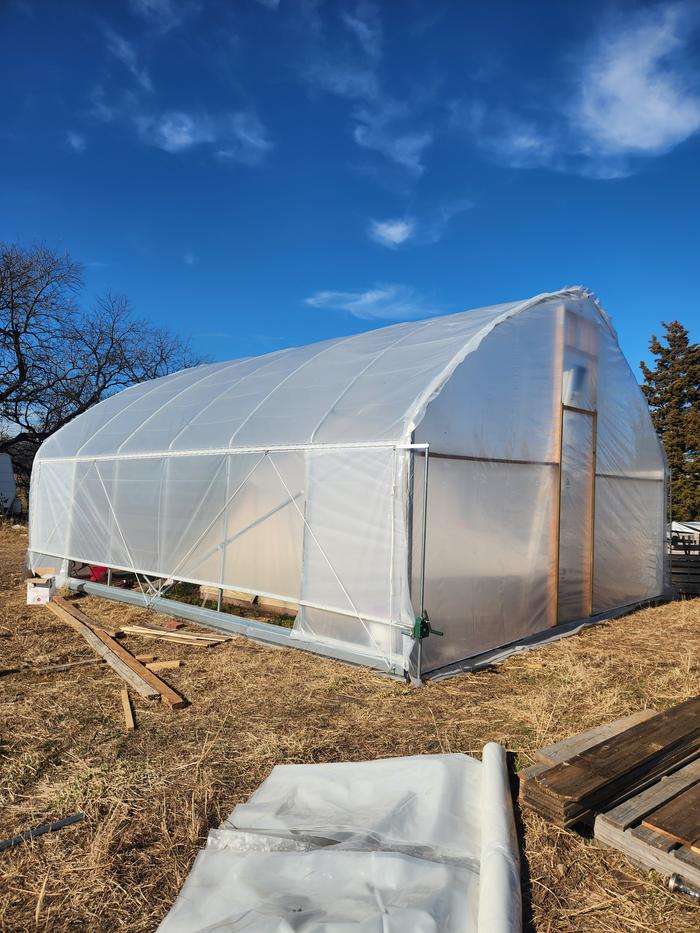

S/E corner
S/E corner

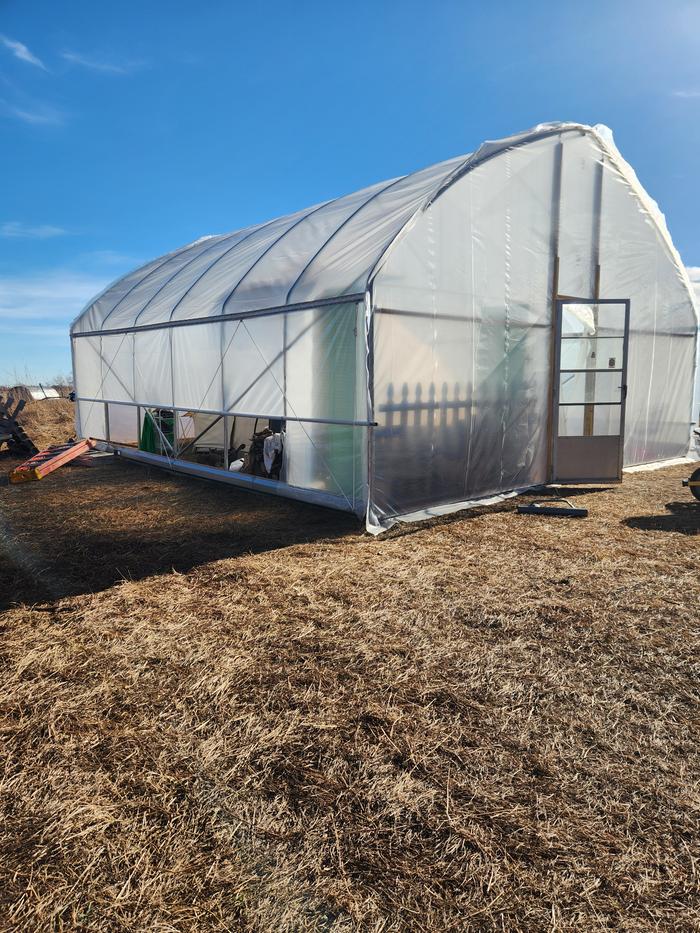

N/W corner
N/W corner

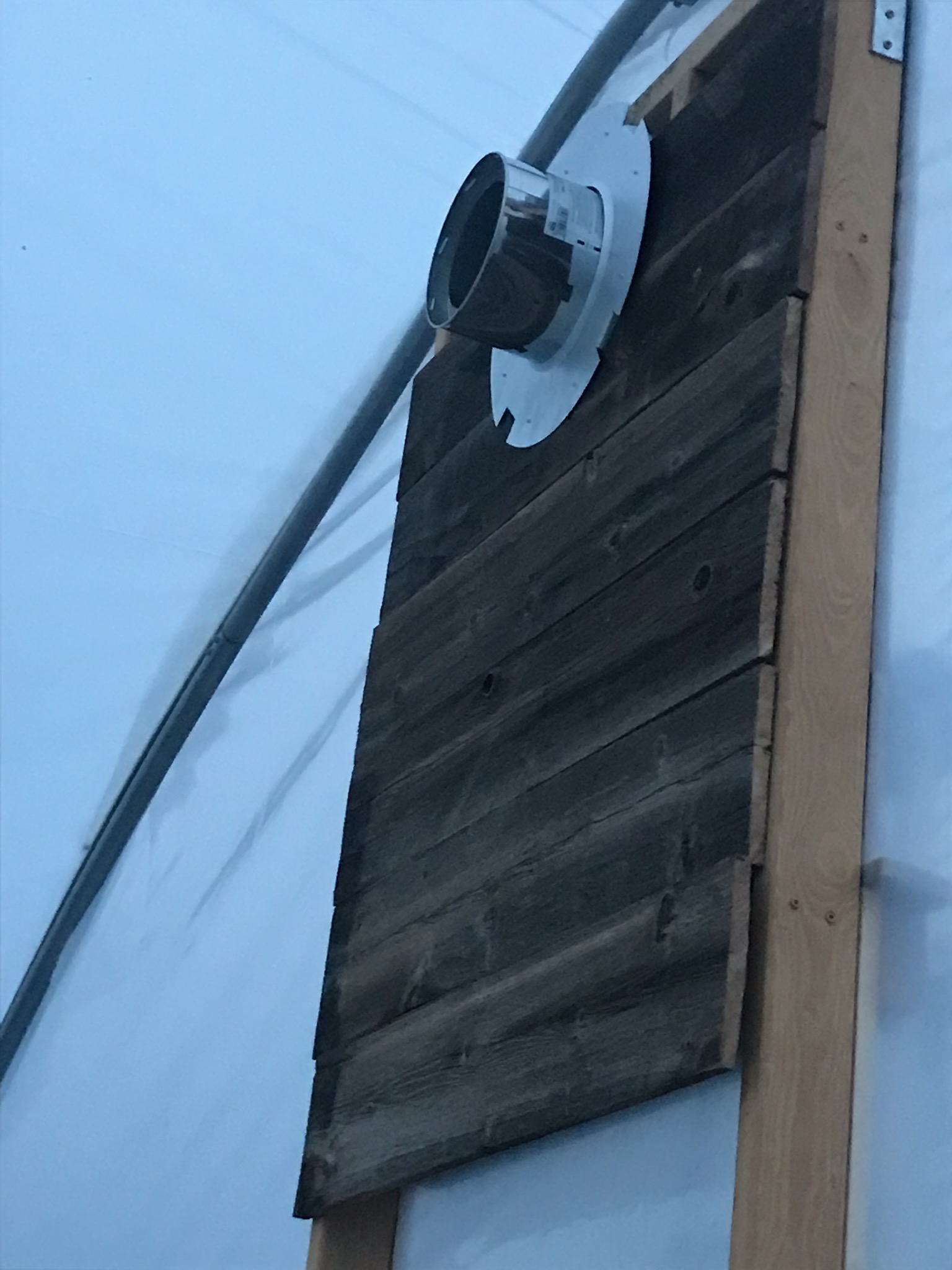

inner chimney support
inner chimney support

R Scott
pollinator
Posts: 4245
Location: Tennessee 7b
353
posted 2 months ago
  • Likes 15
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Glad to see you are using proper insulated chimney. One possible issue I see (not sure, hard to tell from the photos) is your horizontal run inside the tunnel may be a little high—too close to the peak plastic. I would add a metal heat shield between the plastic and that pipe. It can be a scrap of metal siding, just something to block the radiant heat from going directly to the plastic.

Humidity/condensation control is a learning curve. Don’t be afraid to open vents even when it’s cold, it’s better to be cold and dry than cool and wet.

"You must be the change you want to see in the world." "First they ignore you, then they laugh at you, then they fight you, then you win." --Mahatma Gandhi
"Preach the Gospel always, and if necessary, use words." --Francis of Assisi.
"Family farms work when the whole family works the farm." -- Adam Klaus


John F Dean
master steward
Posts: 8344
Location: southern Illinois, USA
3264
I like...
goat cat dog chicken composting toilet food preservation pig solar wood heat homestead composting
posted 2 months ago
  • Likes 13
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
I installed a wood burning stove in my high tunnel by buiding a concrete block L cove for it.  The pipe stays 4’ away from the plastic … and even then the high tunnel is protected by a sheet of plywood.  I have a screened chimney cap to deal with any stray sparks.

I want to be 15 again …so I can ruin my life differently.


Jay Angler
master steward
Posts: 14902
Location: Pacific Wet Coast
9234
I like...
duck books chicken cooking food preservation ungarbage
posted 2 months ago
  • Likes 10
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
The issue I see is the lack of thermal mass to help smooth temperature changes. Buckets of water, dirt, rocks/gravel, stacked used bricks placed so they will absorb some of the winter sun or woodstove heat, and give it off gradually when the sun sets or fire goes out, will improve the comfort a lot.

I also suggest for extra safety, you get appropriate battery sensors - smoke detector and Carbon monoxide detector are the two common ones I see in tent trailers, but there may be others nowadays.

Visit Redhawk's soil series: https://permies.com/wiki/redhawk-soil
How permies.com works: https://permies.com/wiki/34193/permies-works-links-threads


craig howard
pollinator
Posts: 468
Location: zone 5-5
163
posted 2 months ago
  • Likes 11
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
I have a chimney cap just like that.
I used to put a screen on the inside, lining the pipe.
But it kept getting clogged.
Now I put the screen in the area around the central pipe but still inside the cap.
Larger surface area keeps it from clogging and the wind hits it so on windy days some of the build-up gets knocked off.
Also keeps birds from nesting there or curious birds from falling down the chimney.

Pics from the inside are next right?

John F Dean
master steward
Posts: 8344
Location: southern Illinois, USA
3264
I like...
goat cat dog chicken composting toilet food preservation pig solar wood heat homestead composting
posted 2 months ago
  • Likes 9
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Regarding venting, I have installed older metal storm windows at each end of my high tunnel.  It gives me a little better control in the venting process than only having the option of raising the skirting.

I want to be 15 again …so I can ruin my life differently.


C. Letellier
pollinator
Posts: 1149
Location: Greybull WY north central WY zone 4 bordering on 3
351
I like...
hugelkultur trees solar woodworking composting homestead
posted 2 months ago
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Mass, mass, phase change mass.

Country oriented nerd with primary interests in alternate energy in particular solar. Dabble in gardening, trees, cob, soil building and a host of others.


John F Dean
master steward
Posts: 8344
Location: southern Illinois, USA
3264
I like...
goat cat dog chicken composting toilet food preservation pig solar wood heat homestead composting
posted 2 months ago
  • Likes 8
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Regarding the plastic going to the ground, I have a wainscoting of old boards about a foot high going around the outside. It provides  substantial protection from animals, lawnmowers, weed wackers, etc.  I attached it to the metal frame.  In hindsight, I am wondering if I should have driven in wooden stakes and attached the boards to those. This would have made it easier to tuck the plastic all the way to the ground behind the boards.

I want to be 15 again …so I can ruin my life differently.


Charolett Knapic
Posts: 41
13
posted 1 month ago
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator

R Scott wrote:Glad to see you are using proper insulated chimney. One possible issue I see (not sure, hard to tell from the photos) is your horizontal run inside the tunnel may be a little high—too close to the peak plastic. I would add a metal heat shield between the plastic and that pipe. It can be a scrap of metal siding, just something to block the radiant heat from going directly to the plastic.


Yes, thank you! We've been thinking about that too. Instructions said to leave 2' and we are a little closer even than that.


Charolett Knapic
Posts: 41
13
posted 1 month ago
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator

craig howard wrote:I have a chimney cap just like that.

Pics from the inside are next right?



Thanks for the screening experience!

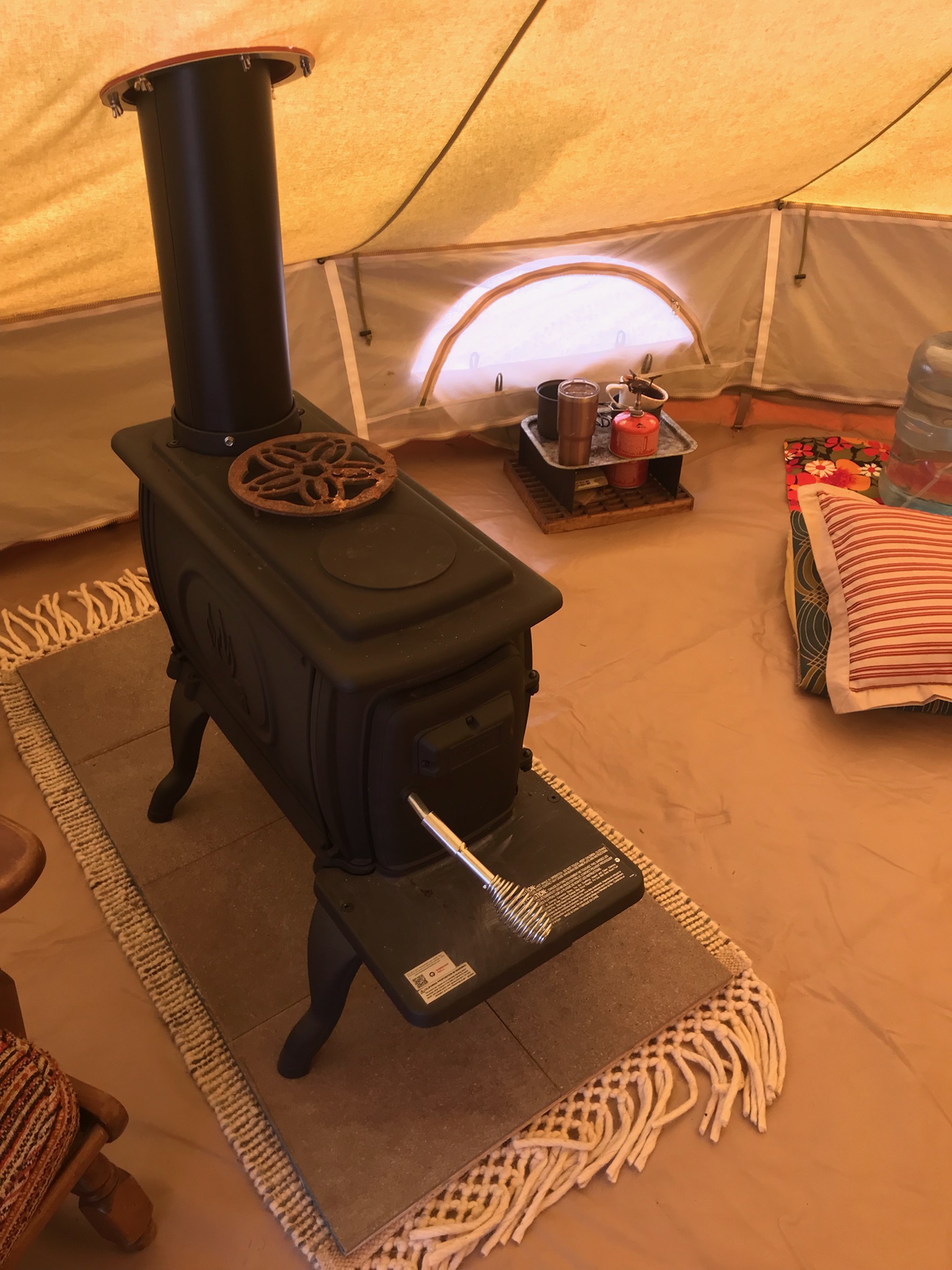

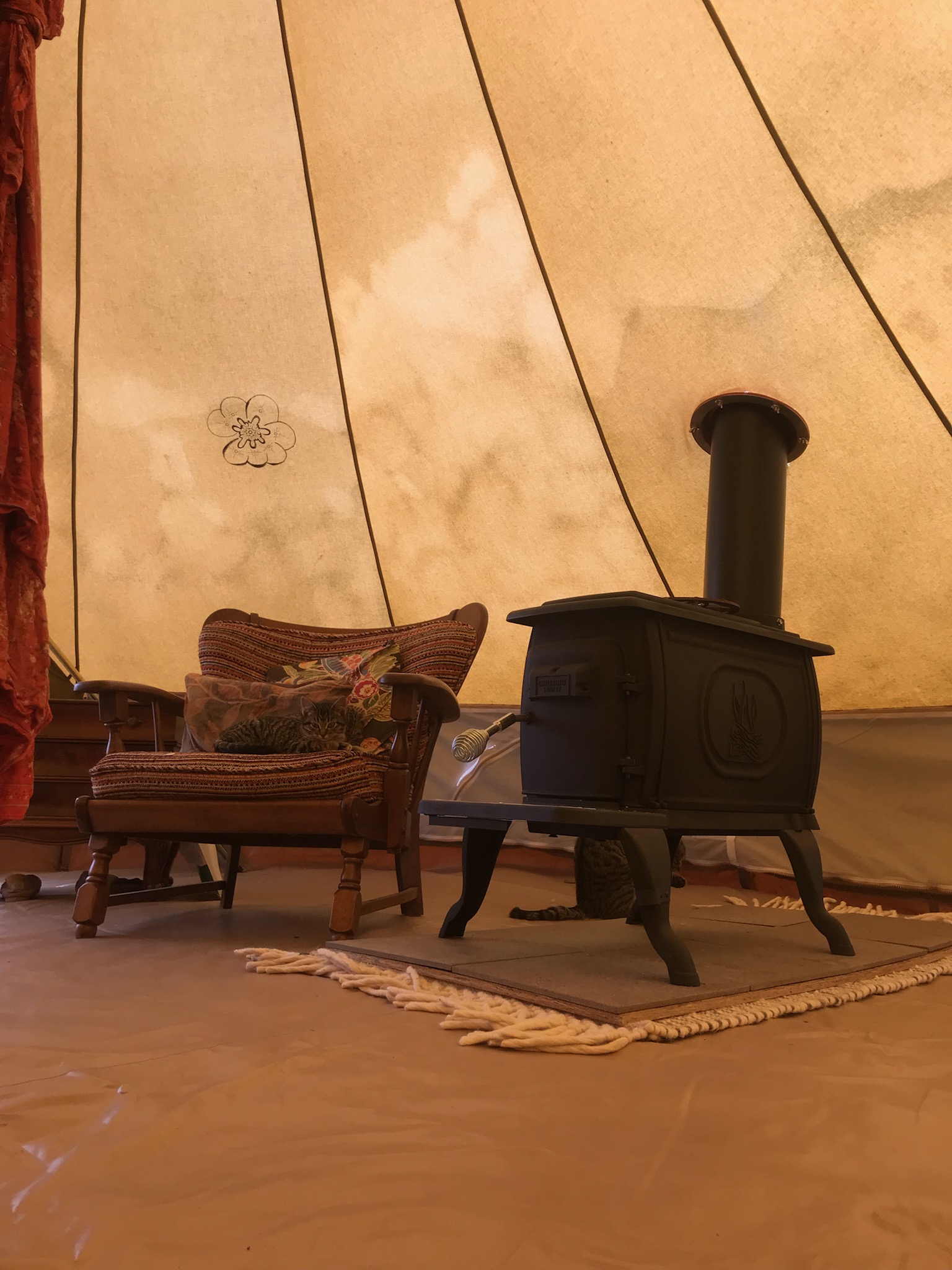

Here are a couple of photos from inside the tent.
[Thumbnail for 1000015466.jpg]
[Thumbnail for 1000015467.jpg]

Charolett Knapic
Posts: 41
13
posted 1 month ago
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator

John F Dean wrote:Regarding the plastic going to the ground, I have a wainscoting of old boards about a foot high going around the outside. It provides  substantial protection from animals, lawnmowers, weed wackers, etc.  I attached it to the metal frame.  In hindsight, I am wondering if I should have driven in wooden stakes and attached the boards to those. This would have made it easier to tuck the plastic all the way to the ground behind the boards.



Good idea, John. We've been wondering what to do to prevent cat and goat damages. I think we need to do something similar. Thank you!
