This is a badge bit (BB) that is part of the PEP curriculum. Completing this BB is part of getting the straw badge in Rocket.

This BB requires you to start and operate a rocket mass heater for one week.


(source)

To get certified for this BB, you must heat a space with a RMH for one week and meet the following criteria:
- use two temperature logging thermometers (one indoor, one outdoors)
- at least 5 days the low temp outside got below 32 degrees F
- indoor temp was kept at least 65 degrees F, averaging at least 70 degrees F or more
- one week is 7 consecutive days

To get certified for this Badge Bit you must provide:
  - provide graphs of logs
     - take three data points (one at morning, noon, and evening) at about the same times each day
  - provide pics of the space being heated and the rocket mass heater
  - provide a few paragraphs about the experience
COMMENTS:

gardener
Posts: 569
Location: 6a; BSk; Suburbia; 0.35 acres
238
6
kids forest garden foraging bike medical herbs rocket stoves
  • Likes 6
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
I stayed in the fisher price house at WL with my kids to complete this BB. The temps were colder and wetter than they had been for the past month so I ran the rocket until the wall temp readings met or exceeded 80degF. I figured this was necessary because of how often my kids like to open exterior doors.  I also didn't do as much cooking during the day as I had over the past month so I needed to account for that. I had a routine of running the rocket as I make coffee in the morning and then I stay nearby for about 3hrs to monitor and feed it before the embers go out.

On day 3, I took note of the time and temperature readings:
at time 0mins - 68degF - scoop out the ash, ignite cardboard and kindling
10 mins later  - 68degF - first load of mostly small pieces
31 mins later  - 70degF - second load of mixed size pieces
37 mins later  - 72degF - third load of mixed size pieces
23 mins later  - 74degF - fourth load of mixed size pieces
19 mins later  - 77degF - fifth load of mixed size pieces
26 mins later  - 79degF - sixth load of mostly large pieces
47 mins later  - 80degF - shift the bricks to dampen and closeup the system
40 mins later  - 80degF - cork the air intake
From ignition to putting the cork on to fully close the system took 3.9hrs; granted, this wasn't optimized. I set a 20min timer in between loads but sometimes it wouldn't quite be ready for a new load and I'd get sidetracked. I also didn't pay too close attention to the embers dying after the last load to move the bricks/cork the system

My goal this week was to not use the bricks or the cork to dampen the air intake. It seems to me that the rocket performs most optimally when the air isn't dampened - based on how relatively hot the stratification chamber radiates heat and how quickly the feed turns to embers. I think that the logs that I split a month ago were actually too skinny so I separated the wood so that the skinniest pieces get used for the rocket oven instead of the fisher price RMH.

Everything was running smooth and routine most of the week. However, on day six, I used too many skinny pieces and had a competing chimney effect so I used the bricks to increase the air velocity to prevent smoke back. After having this experience and discussing it with Paul, I decided to change the method for how I was placing the sticks. I was previously putting the largest part of the stick down because I was concerned about the sticks not dropping properly. However, I found that by putting the skinnier side down, the burn tunnel wasn't getting as blocked and I found that I could fill the belly more.

On day 7, the last day, I continued to use the fat side of the stick up method and the effect was dramatic. I planned on not running the rocket for as long because I knew that there was going to be a lot of warm air escaping out the front door (moving things into my car) so I planned on running the rocket again in the evening. What ended up happening was that the RMH retained heat far better with this method even when I had wet laundry to dry. I didn't end up needing to run the RMH that evening and the house was still very warm by the next morning.

Now, after having returned home, I miss being able to watch the sideways fire and feel the radiant heat. It's so mesmerizing.

The temps dropped below freezing outside every day. I began recording data for the one week operate a rocket BB immediately after completing the one month operate a rocket BB.
[Thumbnail for Panoramic-view-1.JPG]
[Thumbnail for Panoramic-view-2.JPG]
[Thumbnail for location-of-indoor-sensor.jpg]
[Thumbnail for location-of-outdoor-sensor.jpg]
[Thumbnail for Temperature-Data-Recorded-OUTSIDE-Fisher-Price-House-for-1-week.png]
[Thumbnail for Temperature-Data-Recorded-INSIDE-Fisher-Price-House-for-1-week.png]
Staff note (gir bot) :

Someone approved this submission.


Apprentice Rocket Scientist
Posts: 1067
Location: 4a, high mountain dessert
514
4
kids foraging rabbit fiber arts medical herbs bee
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
I heated my greenhouse for 1 week with the RMH I build there. I used two thermometers to track my progress: one outside, hanging on a shed, the other in the greenhouse, hanging on a post. For the 7 days I tracked my heating, March 2nd 2025 through March 7th 2025, the temperature went below 32 degrees 6 nights outside. In the greenhouse, the temp never got below 65 degrees.  I set an alarm for 68 degrees, so I would be notified if the greenhouse needed another burn to stay above 65F.
There are many more than the required 3 temperature logs a day: midnight, 2am, 4am, 6am, 8am, 11am, 1pm, 4pm, 6pm, and 9pm.

I retrofitted an old barn with greenhouse panels three years ago. The first season, I heated it with a home made barrel stove. Rabbits I had staying out there died when temperatures went below 0F!
Last year, I found a camp stove which I thought would be more efficient. It wasn't. It wasn't even close to possible to keep the greenhouse above freezing in March with these stoves. Stuffing it full of wood before bedtime with wood, getting out there before dawn to stuff it again still didn't keep plants from freezing.
The rocket mass heather, on the other hand, made it possible for me to keep the temps well above freezing, with some work. I believe that, with one burn each evening, it wouldn't be a hassle to keep temperatures in the 40s at night, but that's an experiment for another week!
For about two weeks, I've been improving the insulation and making adjustments to see if keeping the greenhouse above 65F at night was even possible! I did things like stuff the walls, which were bare studs, full of old clothes and odds and ends, enclose the studs, chink any holes with clay mud, cover the upper windows with baby blankets, even cover the exterior greenhouse panels with blankets at night. By March first, I was ready.

Most evenings, I burned in the rocket from 6ish to 9ishpm. Then again when I woke up between 5 and 6am.
Three nights out of the week, I had to burn between 2am and 4am: the first night I was still getting used to my rocket. One other night, my exterior blankets blew off, and the third time, it was just really cold outside. But I don't disparage the wee hours awake. I was privileged to see a brilliant big dipper, hear a coyote's song for the first time, and cuddle a purring kitty.
In my hours of splitting wood and keeping the greenhouse running, I kept improving the greenhouse, got two beds ready for growing, and spun yarn on a drop spindle. The time was never wasted. Instead, I would say it was peaceful and productive.

One night, carrying milk crates of firewood, I felt the wood I needed to run the rocket in the greenhouse was too much! So to compare, I weighed all the wood I used inside my house, in a regular wood-burning, cast iron fireplace to heat my home for one day. It took 73.5 lbs. In the greenhouse, burning twice in a day, it took 46 lbs. Were the rocket in a conventional building, and I only needed to burn once a day, it might only take 20 lbs of wood, a third of the wood my conventional wood stove uses. Not part of the bb, just an interesting comparison!
On this chart, showing temperatures on the vertical axis and times of the 7 days on the horizontal axis
These graphs show indoor and outdoor temps side by side for easy comparison, since greenhouse temps were heavily dependent on weather

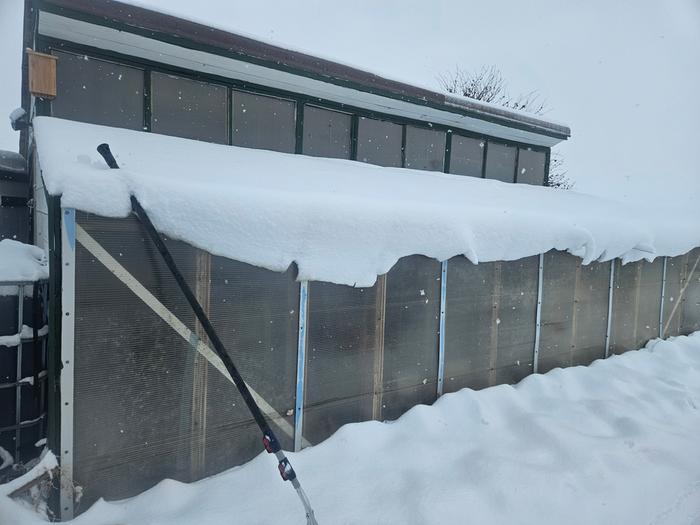

[Thumbnail for greenhouse.jpg]
My geeenhouse

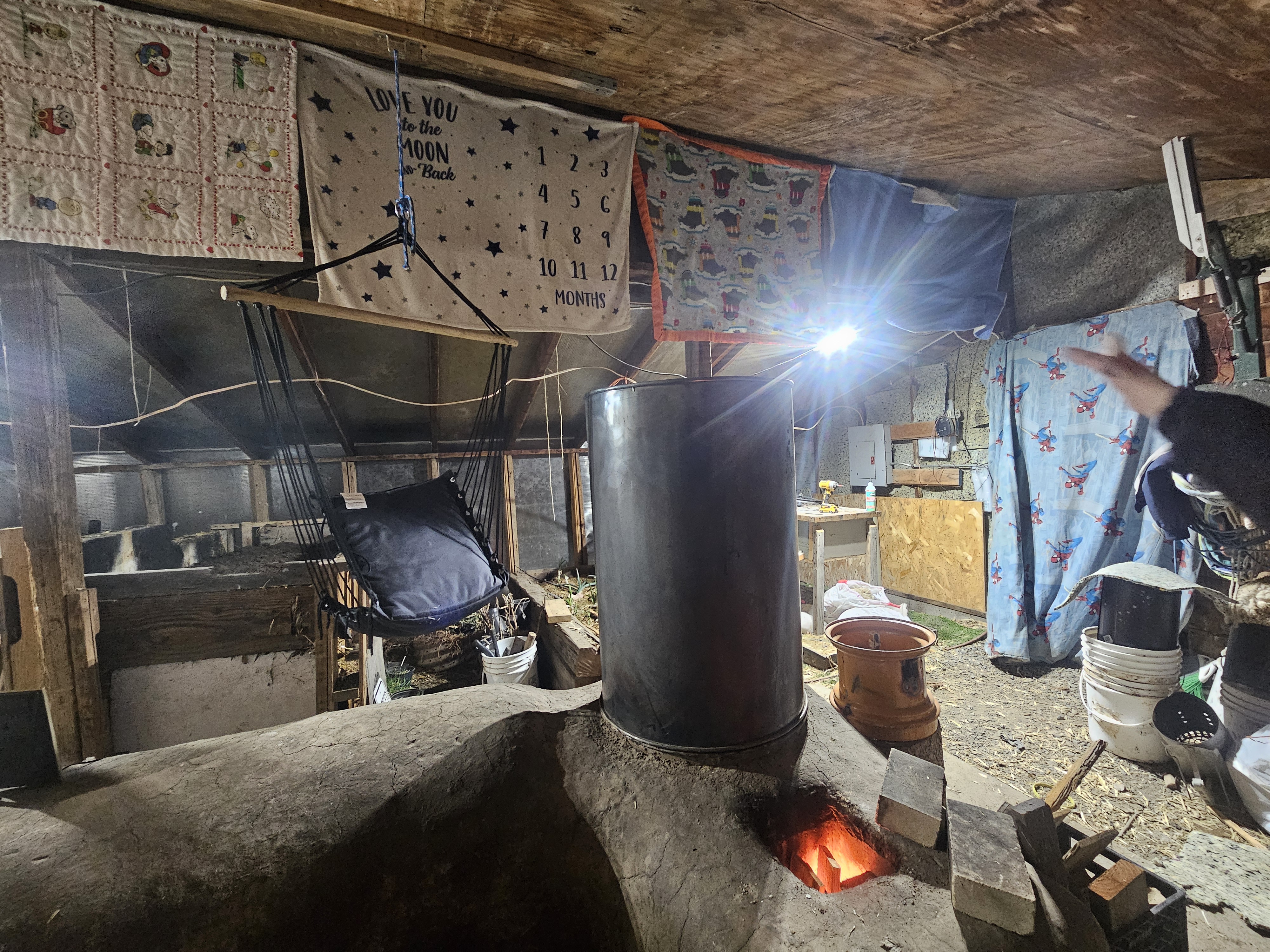

Blankets on the upper windows, wall studs exposed
Blankets on the upper windows, wall studs exposed

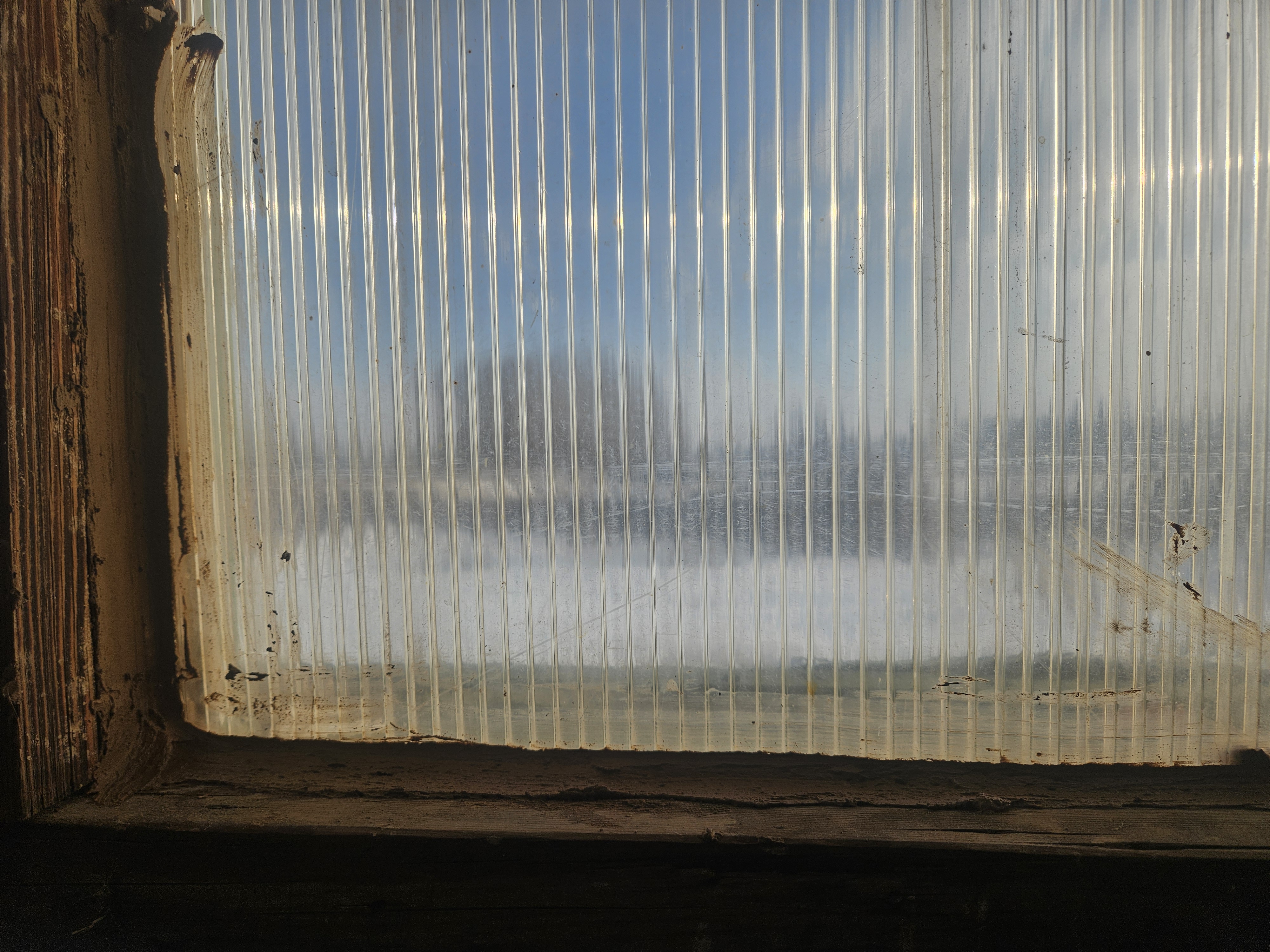

Windows with air gaps
Windows with air gaps
Clay fingers
Clay fingers

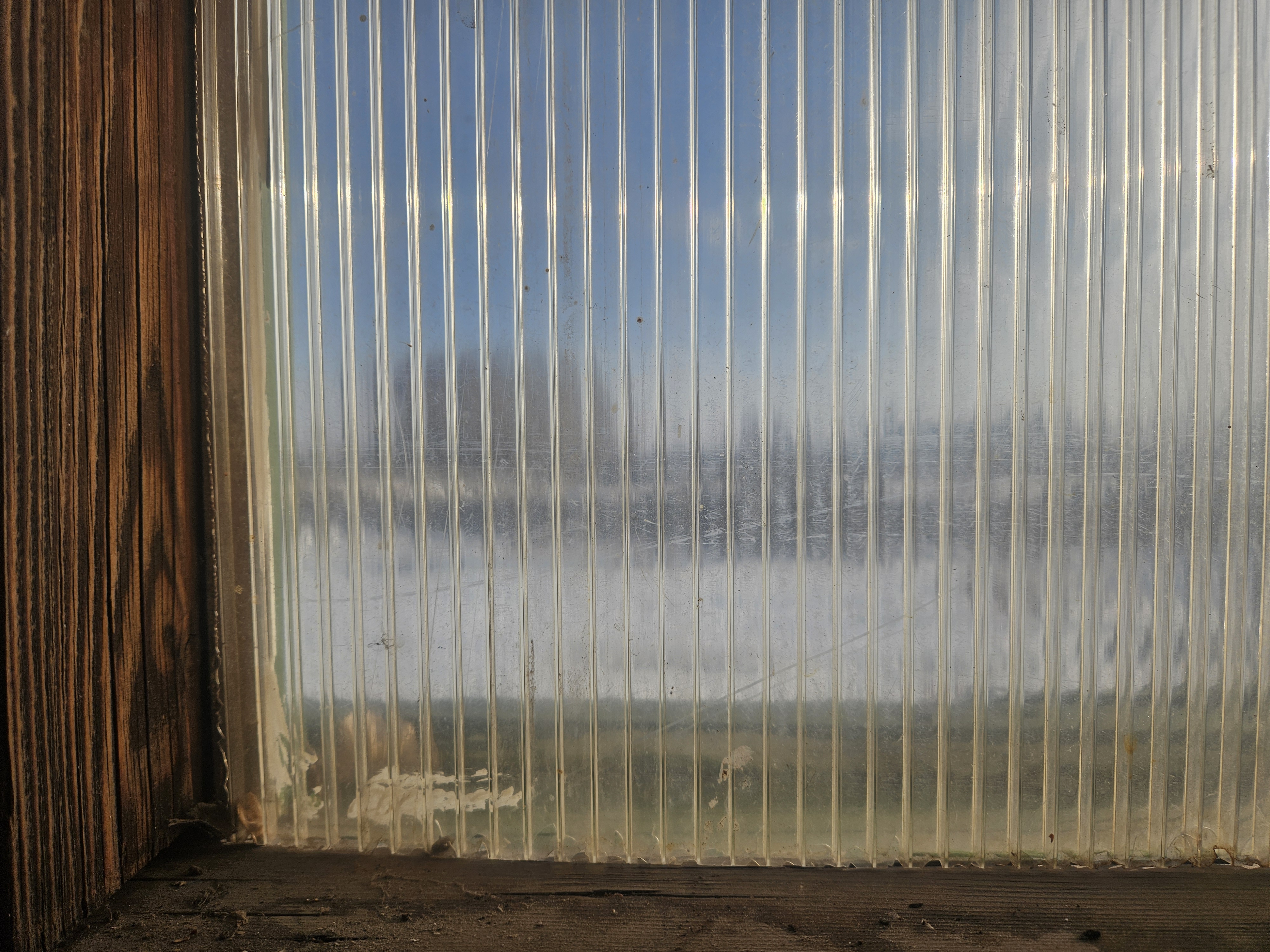

Windows more air tight
Windows more air tight

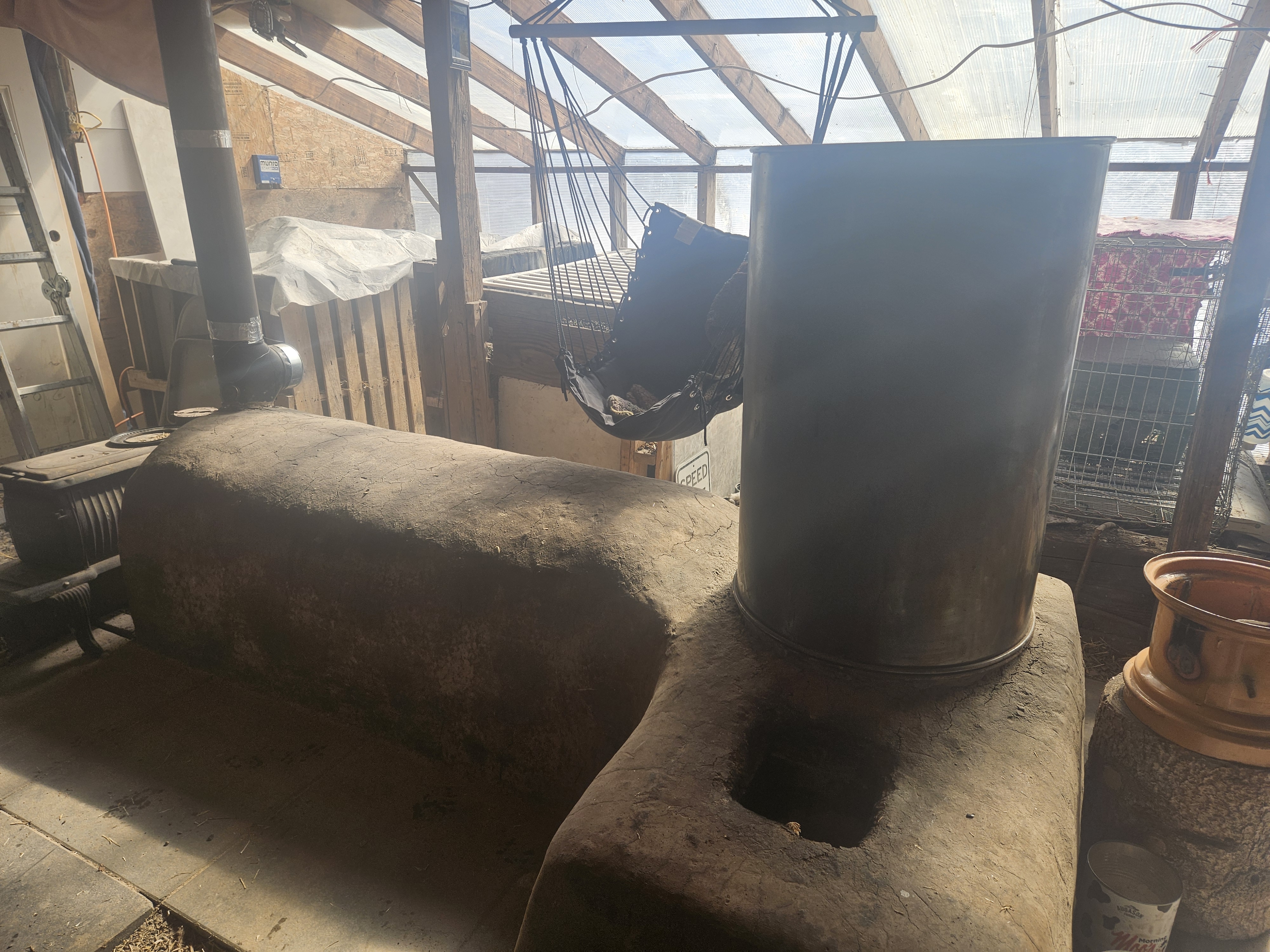

My RMH, with my swing above the mass. The walls in the background are covered in, instead of bare studs.mass
My RMH, with my swing above the mass. The walls in the background are covered in, instead of bare studs.mass
Greenhouse sprouts arise!
Greenhouse sprouts arise!
Staff note (gir bot) :

Jeremy VanGelder approved this submission.
Note: Good job! I love the positivity!
