here is a list of all the rocket mass heaters and rocket stoves at wheaton labs. there are links to their individual threads as well, some of them have great, super-detailed threads, some of them don't. feel free to start a thread about an individual one if you think it necessary and post a think to it in this thread. and there are some videos too!

pebble style rocket mass heater in fisher price house





You can see the build of this one in the better wood heat videos


________________________________

rocket mass heater in a tipi





You can see the build of this one in the better wood heat videos

___________________________________


cyclone heater in the red cabin






______________________________


pebble style rocket mass heater in 'the library'




You can see the build of this one in the better wood heat videos


__________________________________



8" batch box rocket mass heater in the shop/classroom


You can see the build of this one in the better wood heat videos


__________________________________


minnie mouse heater for tiny houses





You can see the build of this one in the better wood heat videos


______________________________

rocket mass heater in cooper cabin




You can see the build of this one in the better wood heat videos


________________________________


rocket mass heater cooker/smoker



You can see the build of this one in the better wood heat videos


__________________________________


bun warmer




______________________________



season extender




______________________________


The cottage rocket mass heater as it is being constructed:



It has now been fully installed and tested - we just need to take some pics!


______________________________


the new double shoebox



The double shoebox has been reworked and installed. It still needs a bit of polish and proper pics/video




______________________________



Rockety Things
(that are not rocket mass heaters)


______________________________



rocket oven




_________________________________


rocket stove kiln




_______________________________


lasse's rocket cook stove




______________________________




Rockety things that are currently not installed



_________________________________


fat rabbit batch box rocket heater




_______________________________






Rockety things that are no longer here




_________________________________



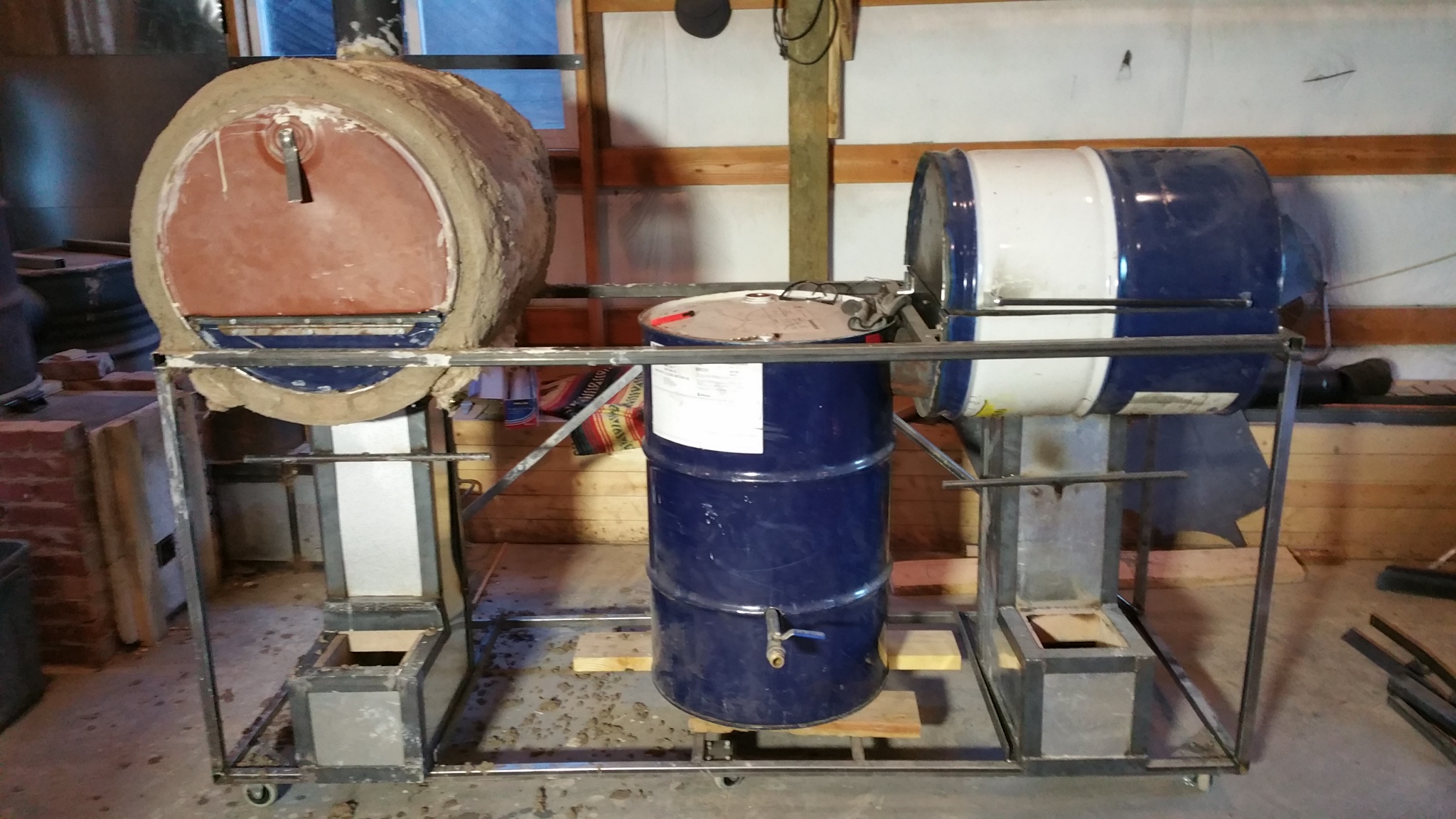

rocket oven, griddle and water heater (cockit-lockit-rocket)



Tim Barker scavanged this to create ....
You can see the build of this one in the better wood heat videos


_________________________________


the barker's baker: a rocket oven, griddle and hot water heater



Tim scavanged this to create the stand alone rocket oven and the standalone vertical rocket hot water heater.

_______________________________



rocket mass heater in allerton abbey (first wofati)



The person that created this tried too many new things at once and ended up with something that didn't work. Peter van den Berg modified it to work in the short term as a "rocket heater" but then created the double shoe box rocket cook stove to replace it.



________________________________





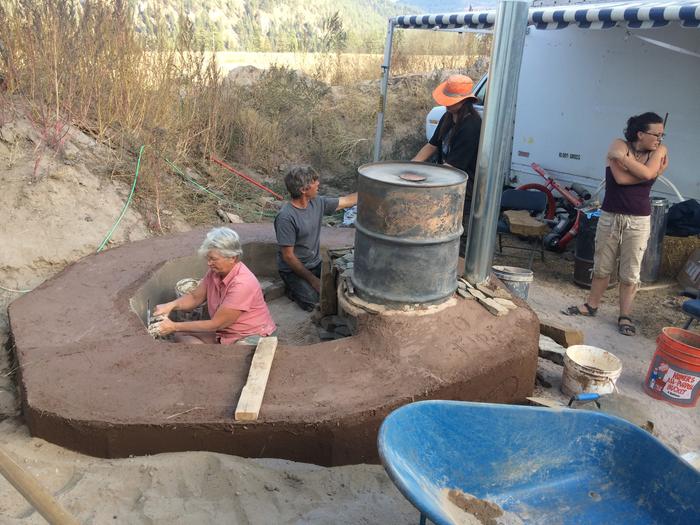

ring of fire rocket mass heater



This lasted several years. It was built quickly and because it was exposed to the elements, it wasn't expected to last terribly long. It's parts were reclaimed for other projects in 2017.

You can see the build of this one in the better wood heat videos


__________________________________

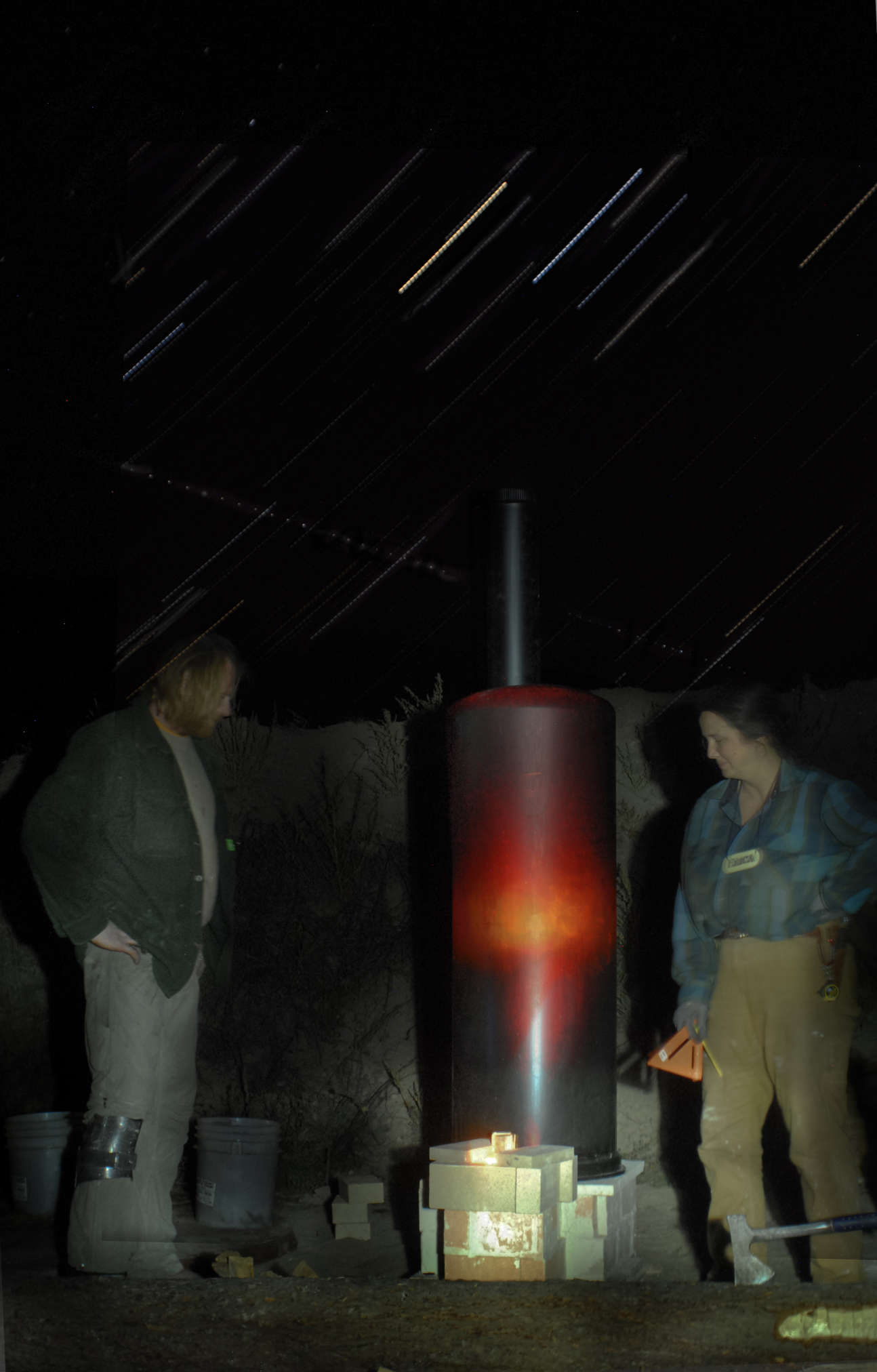

quartz barrel rocket mass heater



This was a one time thing so we could what it looked like inside the barrel.


_______________________________



2 inch system




______________________________


COMMENTS:

master steward
Posts: 25050
Location: missoula, montana (zone 4)
bee chicken hugelkultur trees wofati woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Evan is putting on some low cost workshops here - like $50 for a week - where you can try out heaps of rocket mass heaters:

http://www.permies.com/t/52318//PEA-Workshops-Permaculture-Experience-Ava



Or, you can just come out and, say, stay in the tipi for a few days, or one of the other buildings with a rocket mass heater:

http://www.permies.com/t/52814/labs/rent-tipi-cabin-wofati-wheaton


Posts: 568
Location: ontario, canada
fungi tiny house transportation
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I've seen about 7 or 8 of these online already. I've been all over the highway, like horse tracks .

I really like the 8" batch box, near the top of your list.

Is your lab here in Canada?

gardener
Posts: 2581
Location: Upstate NY, zone 5
92
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
wheaton labs is in Montana, near Missoula.
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
So I bought the dvd sets and Love the info off of them.
As I'm going through these i don't see something that I'm  curious if anyone has tried. Most of the piping runs on an incline then to the stack.
And all the pipes run in a mass for sitting on , etc. Has anyone tried to do a vertical mass against a wall?
My thinking is if someone had a basement like a dirt floor basement, running the pipes so they zig zag up the sides of the wall, then packed in with cob, masonary work or what have you creating a radiant heat in the basement that warms the floor above or something to that effect.

Posts: 3
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Brian - check this out - http://www.heatkit.com/research/2009/lopez-rocket.htm
(sorry for temporarily hijacking the thread.  back to your regularly scheduled RMH tour at Wheaton Labs)

Brian Clugston
Posts: 2
hugelkultur trees woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
kinda....but i was thinking with the duct work starting at the bottom and winding its way up to the top inside kinda like an old wooden marble machine toy, then filling in the wall with stone or something. instead of an giant open center.

pollinator
Posts: 1108
Location: Big Island, Hawaii (2300' elevation, 60" avg. annual rainfall, temp range 55-80 degrees F)
163
books forest garden rabbit solar tiny house woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Every turn in the chimney is like adding feet to the length. After a few turns the chimney is in danger of not drawing. Thus the stove develops an airlock and the fire goes out (or smokes into the room). I don't know the formula for determining the maximum amount of chimney the stove could support, but in my early years of heating my home with a wood stove I made the mistake of putting too many bends in the stove pipe.

paul wheaton
master steward
Posts: 25050
Location: missoula, montana (zone 4)
bee chicken hugelkultur trees wofati woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Tracy and I updated the first post a lot.   Anything we left out?  Any mistakes?

I'm gonna add this image to a few ...
[Thumbnail for wood-heat-videos-220.png]

steward
Posts: 3546
Location: Kingston, Canada (USDA zone 5a)
346
chicken dog food preservation forest garden fungi tiny house purity trees woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
any more pictures of the cottage rocket mass heater? Some people are having difficulties to visualize it from the discussion in this thread

paul wheaton
master steward
Posts: 25050
Location: missoula, montana (zone 4)
bee chicken hugelkultur trees wofati woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

Adrien Lapointe wrote:any more pictures of the cottage rocket mass heater? Some people are having difficulties to visualize it from the discussion in this thread



I think there are a few more pics in the jamboree thread.


Posts: 43
9
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Adrien,
Cottage Rocket, Workshop Model
Here you go, thanks to Attilio.
[Thumbnail for Cottage-Rocket-Workshop-Model-(short)-Wheaton-Labs-October-2017-Jamboree.jpg]
[Thumbnail for Cottage-Rocket-Workshop-Model-(short)-Wheaton-Labs-October-2017-Jamboree-3.jpg]
