This is a badge bit (BB) that is part of the PEM curriculum.  Completing this BB is part of getting the sand badge in Earthworks.

Swales are an excellent way to Slow, Sink and Spread water on the landscape.  Let's get out the shovel and make one happen!




Here's a video of what we're after:


Minimum requirements:
  - Create 36 feet of swales on sloped land
      - Can be two swales that add up to 36 feet
  - On contour
  - Deep enough so when completely full of water it's at least 8" deep
  - Level berm on downhill side
  - Immediately seeded and mulched
  - Has a spillway

Provide proof of the following as pictures or video (<2 min):

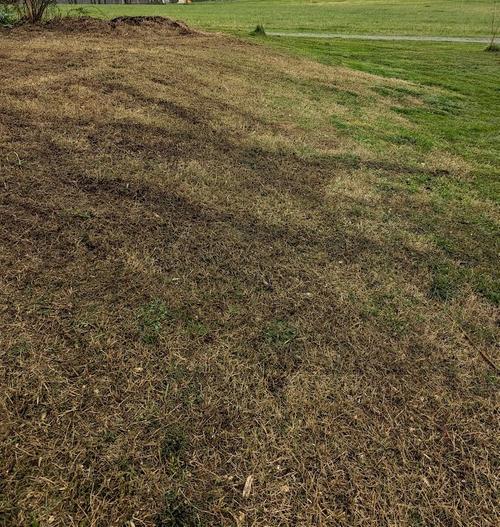

  - Landscape you're starting with

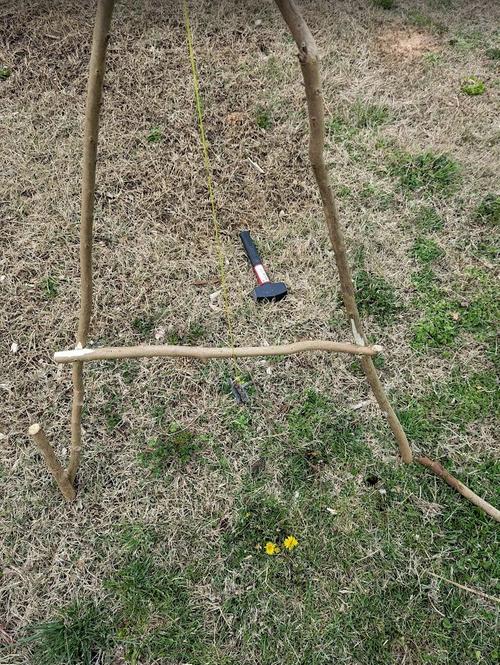

  - Contour marked out with the device you used to ensure it's on contour

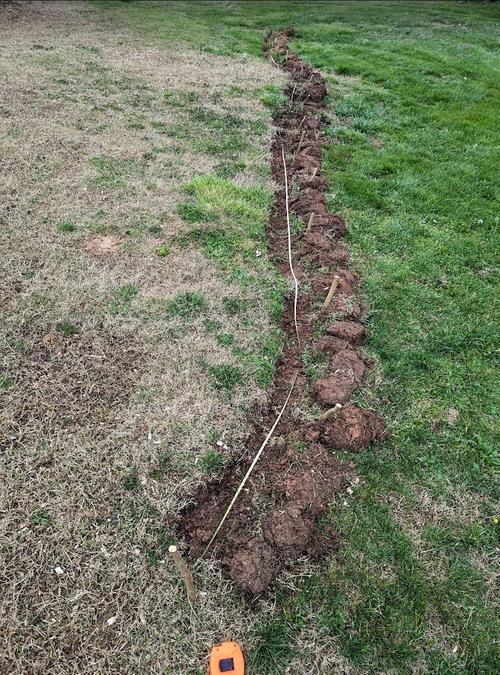

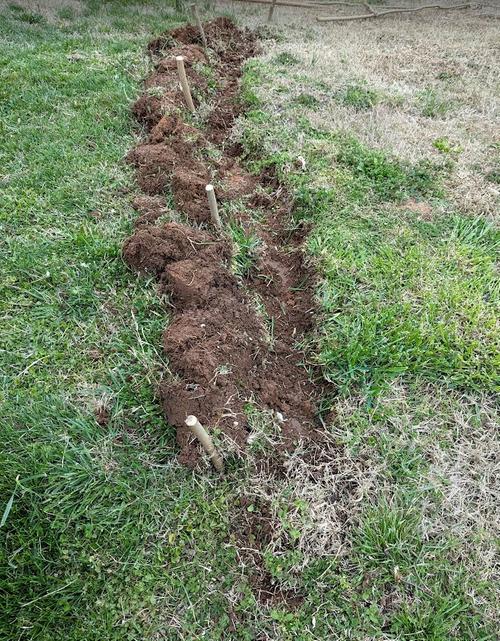

  - Excavation underway

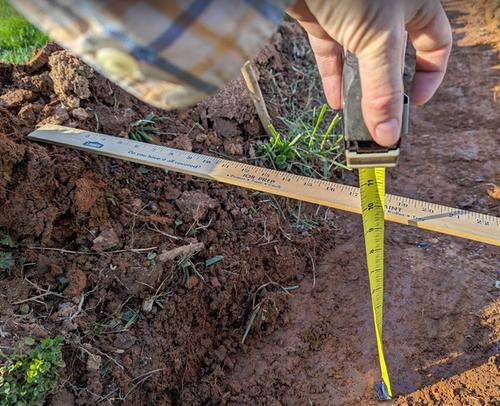

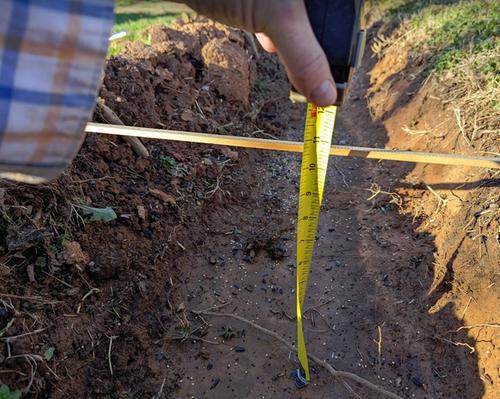

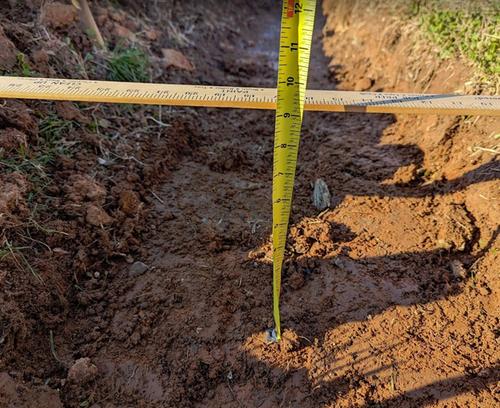

  - Depth of excavation (perhaps a level resting on the berm at one end and a tape measure showing depth)

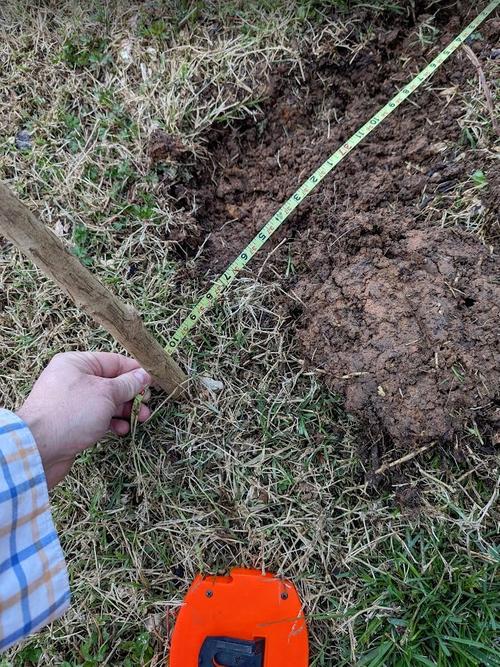

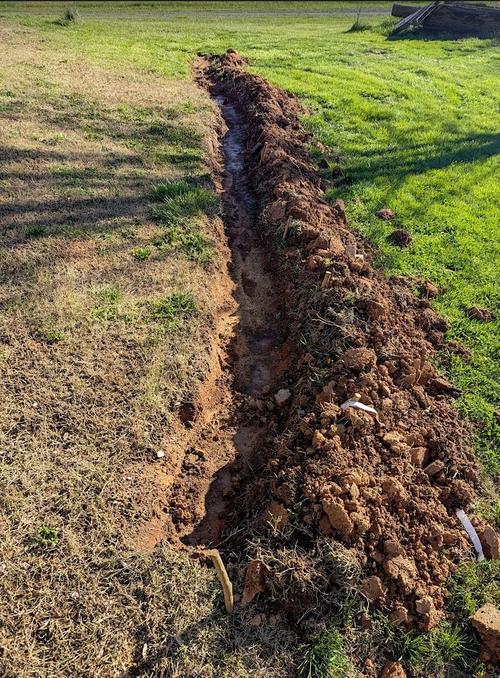

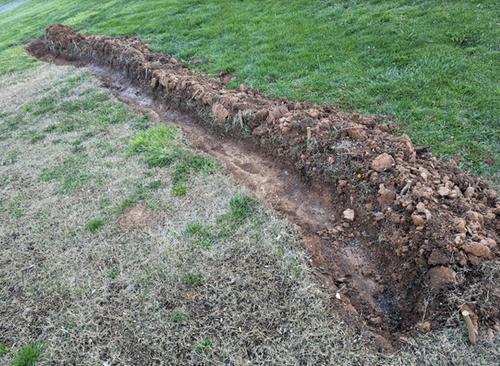

  - Finished swale(s) showing length is at least 36'

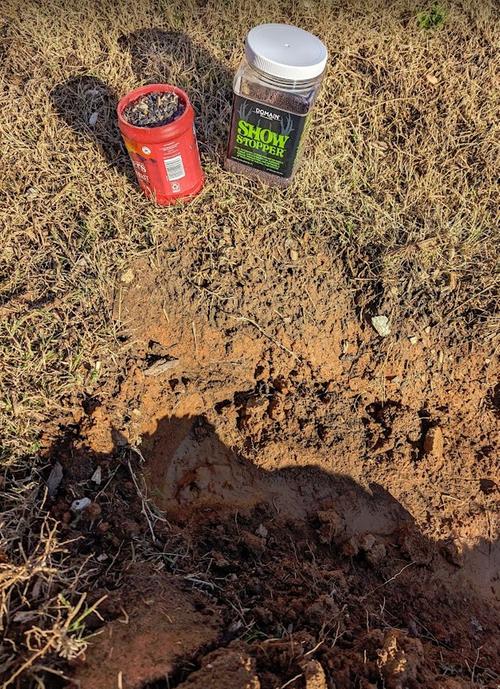

  - Seeding the swale and berm

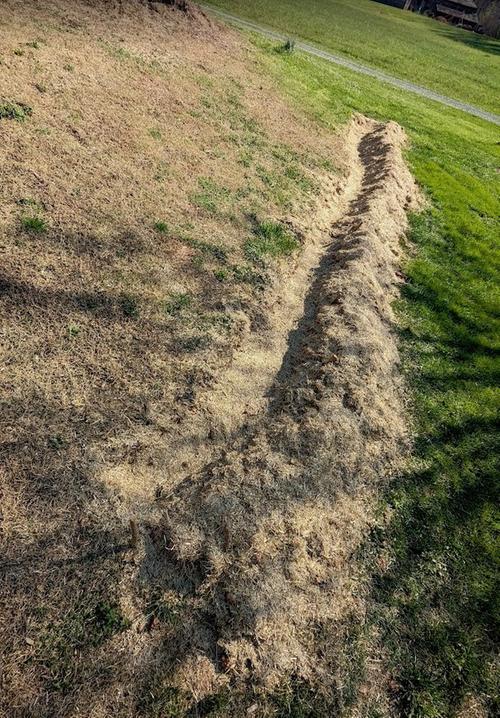

  - Mulching the swale and berm
  - Spillway
COMMENTS:

gardener
Posts: 388
Location: Zone 7a
264
6
kids rabbit chicken food preservation fiber arts
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I watched both of Matt Power's videos on swales and I'm still note sure how to measure the 8" depth. Can you draw something simple so I can get the gist?

steward
Posts: 15518
Location: Northern WI (zone 4)
4853
7
hunting trees books food preservation solar woodworking
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Good question Kevin, I'll change the wording on that to make more sense.  What I meant (or maybe what I mean now) is that when the swale is totally full, the water is at least 8" deep.

[Thumbnail for Swale.png]

Kevin Harbin
gardener
Posts: 388
Location: Zone 7a
264
6
kids rabbit chicken food preservation fiber arts
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Perfect! That makes sense.
