Forum:

wood burning stoves

Smoke

John F Dean

master steward

Posts: 8741

Location: southern Illinois, USA

3627

I like...

posted 2 years ago

6
Number of slices to send:

Optional 'thank-you' note:

Send

I have two massive fireplaces... one is the basement and other directly above it in the LR. The basement has an insert. The chimneys are side by side in a common structure with a common concrete rain cap. If both are burning, life is good. If only one is burning, smoke travels out of one outlet and gets drawn down the other and into the house.

My plan in to raise the height of the cap by about 8 inches to allow more space for the smoke to escape.

And, to build a “wall” between the two outlets to impede the path of the smoke from traveling back into the house.

Opinions?

I figure if someone from the future hasn’t tried to stop me, I can’t be messing up that bad.

Jim Fry

Posts: 624

Location: Stone Garden Farm Richfield Twp., Ohio

posted 2 years ago

4
Number of slices to send:

Optional 'thank-you' note:

Send

As an obvious first question, did you close the damper on the unused chimney?

Creating sustainable life, beauty & food (with lots of kids and fun)

thomas rubino

master rocket scientist

Posts: 7136

Location: latitude 47 N.W. montana zone 6A

4285

I like...

posted 2 years ago

11
Number of slices to send:

Optional 'thank-you' note:

Send

Good Morning John;
An unusual problem that I have never heard of before.
I assume it only happens with a low-pressure system when your smoke wants to move down.
I have to wonder if an 8" rise and a stub wall are enough to convince the smoke to vacate rather than return inside the house.
Perhaps a 2' section of steel stove pipe and coolie cap could extend up through your current rain cap?
Might look kinda hillbillyish but if it works, who cares?
Put on your bib overalls, load up your corn cob pipe with some tobacky, and practice your fiddle playing on the front porch!

For all your Montana Masonry Heater parts (also known as) Rocket Mass heater parts.
Visit me at
dragontechrmh.com Once you go brick you will never go back!

John F Dean

master steward

Posts: 8741

Location: southern Illinois, USA

3627

I like...

posted 2 years ago

6
Number of slices to send:

Optional 'thank-you' note:

Send

Hi Thomas,

I have lived here well over 20 years, so obviously it is not a huge problem. Why fix it now? I just passed my 74 th birthday. While I get along quite well currently, there will be a day when roof climbing is not so good of an idea. So, the problem gets attacked this summer.

Probably replacing the current rain cap would be easier. That present one is about 4 inches thick and measures about 3 x 6’. The wind ain’t blowing it anywhere , and punching through it would be a pain.

So maybe placing the caps at different heights?

I figure if someone from the future hasn’t tried to stop me, I can’t be messing up that bad.

John F Dean

master steward

Posts: 8741

Location: southern Illinois, USA

3627

I like...

posted 2 years ago

4
Number of slices to send:

Optional 'thank-you' note:

Send

Hi Jim,

I should have volunteered that info. Yes they are closed. But, obviously I am questioning how well they close. The previous owner has the same problem. Their solution was to put a plug in the chimney that services the upstairs.

I figure if someone from the future hasn’t tried to stop me, I can’t be messing up that bad.

Christopher Weeks

master gardener

Posts: 6596

Location: Carlton County, Minnesota, USA: 3b; Dfb; sandy loam; in the woods

4014

I like...

posted 2 years ago

6
Number of slices to send:

Optional 'thank-you' note:

Send

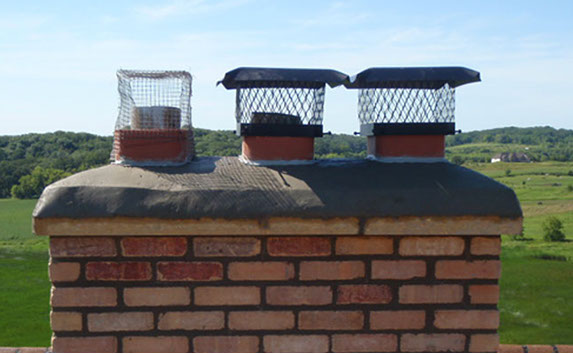

You have something like this, but with only two?

I wonder if extending just one of the two by a foot, to get some space between them would help.

PEP - BB100 Badge (verified skill)
Skill verified by gir bot

John F Dean

master steward

Posts: 8741

Location: southern Illinois, USA

3627

I like...

posted 2 years ago

6
Number of slices to send:

Optional 'thank-you' note:

Send

Hi Christopher,

Nope…..but close. Remove all the caps in the picture. Now imagine a single concrete slab covering all the chimneys and supported by bricks at the four corners. It is pretty overcast today, but I will try to get a picture up

I figure if someone from the future hasn’t tried to stop me, I can’t be messing up that bad.

Christopher Weeks

master gardener

Posts: 6596

Location: Carlton County, Minnesota, USA: 3b; Dfb; sandy loam; in the woods

4014

I like...

posted 2 years ago

9
Number of slices to send:

Optional 'thank-you' note:

Send

Oh, I get it -- not quite what this picture looks like, but almost. Yeah, that seems harder to work out. I guess I'd be inclined to cut a hole in the cap for one of the two, but it'll be interesting to hear if your cap-raising solution works. I guess one worry about raising the cap too far is admitting side-blowing rain.


John F Dean

master steward

Posts: 8741

Location: southern Illinois, USA

3627

I like...

posted 2 years ago

4
Number of slices to send:

Optional 'thank-you' note:

Send

Yes

I figure if someone from the future hasn’t tried to stop me, I can’t be messing up that bad.

Dan Fish

pollinator

Posts: 703

Location: Sierra Nevada Foothills, Zone 7b

156

I like...

posted 2 years ago

9
Number of slices to send:

Optional 'thank-you' note:

Send

Huh. I guess if it was me I'd put the most often used chimney cap above the other by a good two feet and see what happens. Good luck. Please report back because this is a new one for me.

I live in a river valley and when it's cold the smoke pours almost straight down out of the chimney. If I had two I would surely have the same problem.

Fish heads fish heads roly poly fish heads

John F Dean

master steward

Posts: 8741

Location: southern Illinois, USA

3627

I like...

posted 2 years ago

7
Number of slices to send:

Optional 'thank-you' note:

Send

Hi Dan,

You approach some relevant points. I am near the top of a hill on the east side. The house is beautifully placed so that tornados coming from the west ( and they have always come from that direction) skip over us. But, I suspect that a wind that is a little less strong might come over the top if the hill and drop downward.

I figure if someone from the future hasn’t tried to stop me, I can’t be messing up that bad.

Carla Burke

Rusticator

Posts: 9896

Location: Missouri Ozarks

5472

I like...

posted 2 years ago

6
Number of slices to send:

Optional 'thank-you' note:

Send

John, is there a center divider in between the pipes, inside it? If not, maybe you could create one, then IF further division is needed, block off one escape route on one side and the other on the other side? (Not that I know, just a thought.)

"The only thing...more expensive than education is ignorance."~Ben Franklin. "We can easily forgive a child who is afraid of the dark; the real tragedy of life is when men are afraid of the light." ~ Plato

John F Dean

master steward

Posts: 8741

Location: southern Illinois, USA

3627

I like...

posted 2 years ago

5
Number of slices to send:

Optional 'thank-you' note:

Send

Hi Carla,

Good to have you back. In my first post I raised the question of putting in such a wall. Currently my plan is to put in the divider and raise the cap by a brick or two.

The added walls on opposing sides is a really interesting idea. Kind of a desperation move, but it does have my interest.

I figure if someone from the future hasn’t tried to stop me, I can’t be messing up that bad.

Carla Burke

Rusticator

Posts: 9896

Location: Missouri Ozarks

5472

I like...

posted 2 years ago

4
Number of slices to send:

Optional 'thank-you' note:

Send

John F Dean wrote:Hi Carla,

Good to have you back. In my first post I raised the question of putting in such a wall. Currently my plan is to put in the divider and raise the cap by a brick or two.

The added walls on opposing sides is a really interesting idea. Kind of a desperation move, but it does have my interest.

Thank you! I'm sorry I missed that - and yeh, I actually read it, it just didn't register in my head, for some reason. I hope you can get it worked out, quickly, effectively, - and safely!

John F Dean

master steward

Posts: 8741

Location: southern Illinois, USA

3627

I like...

posted 1 year ago

11
Number of slices to send:

Optional 'thank-you' note:

Send

As Carla and I discussed, I put in a partition between the two chimney outlets. I have a medium fire going upstairs and no smoke in the basement. So, it seems to be working.

I just noticed that Thomas mentioned the wall as well.

I figure if someone from the future hasn’t tried to stop me, I can’t be messing up that bad.

Joylynn Hardesty

master pollinator

Posts: 5435

Location: Due to winter mortality, I stubbornly state, zone 7a Tennessee

2407

I like...

posted 1 year ago

6
Number of slices to send:

Optional 'thank-you' note:

Send

Yay!

'What we do now echoes in eternity.' Marcus Aurelius
How Permies Works Dr. Redhawk's Epic Soil Series

Eugene Howard

pollinator

Posts: 112

Location: Missouri

posted 1 year ago

6
Number of slices to send:

Optional 'thank-you' note:

Send

To OP, what is your source of makeup air? The combustion air the heaters use? It has to come in from the outside somewhere. If you have none, perhaps second chimney is serving that roll?

John F Dean

master steward

Posts: 8741

Location: southern Illinois, USA

3627

I like...

posted 1 year ago

4
Number of slices to send:

Optional 'thank-you' note:

Send

Hi Eugene,

Excellent point. The house may be tighter than I thought leaving the O2 intake with few options.

I figure if someone from the future hasn’t tried to stop me, I can’t be messing up that bad.

Eugene Howard

pollinator

Posts: 112

Location: Missouri

posted 1 year ago

5
Number of slices to send:

Optional 'thank-you' note:

Send

One way to find out would be to get a good fire going in one, then check the other fireplace for big draft coming down the chimney. Or when you are drawing smoke down one, open a window near the one burning to see if that stops the smoke problem.

John F Dean

master steward

Posts: 8741

Location: southern Illinois, USA

3627

I like...

posted 1 year ago

2
Number of slices to send:

Optional 'thank-you' note:

Send

Hi Eugene,

It appears the problem was resolved when I built the wall between the two smoke outlets on the chimney.

I figure if someone from the future hasn’t tried to stop me, I can’t be messing up that bad.

Glenn Herbert

Rocket Scientist

Posts: 4784

Location: Upstate NY, zone 5

739

posted 1 year ago

7
Number of slices to send:

Optional 'thank-you' note:

Send

Commercial stove pipe dampers are (I think required to be?) built with a small hole so they can't be closed 100%. I believe this is to prevent a closed damper from forcing carbon monoxide from a coaling-out fire out into the room.

John F Dean

master steward

Posts: 8741

Location: southern Illinois, USA

3627

I like...

posted 7 months ago

5
Number of slices to send:

Optional 'thank-you' note:

Send

The pony wall between the chimneys seems to be effective. We have been able to largely heat with wood with minimal smoke being drawn into the house. I suspect if I bothered to light even a small fire in the basement the problem would be 100% addressed.

I figure if someone from the future hasn’t tried to stop me, I can’t be messing up that bad.
