Ingenious scrap metal firewood splitter (video)


Posts: 10
3
  • Likes 9
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hello! This is my first real post on permies. Firstly I intend to present myself. You can of course skip this to go straight to firewood splitting!!
I have been self studying permaculture and stayed at permaculture farms for years now. Soon it is time for me to take on some land suffering from unsustainable practices and turn it into a permaculture oasis and eventually a demonstration center. I am based in mid/south Sweden at the west coast, and my dream is to start a permaculture research institute. I am 21 yr old and work as a carpenter and have done natural building, i.e. straw bale and cordwood.
For more than a year i volunteered and lived with natural builder Simon Dale (famous for his hobbit-like house in Wales), before taking on other projects. I love this forum and think it is crucial to the movement and a wonderful and inspirational place where people allow their imagination and ideas to be discussed. Also the behaviour is very social and pleasant compared to other forums, and i have respect for Paul who dedicate so much of his time on this.

Cheers everyone!

And now for something completely different, a man with... a scrap metal splitter!

This contraption would make it easy to split your firewood, if it is of a decent quality (grainwise). I think he is splitting alder which can hardly be the most sought after firewood. It is safe to operate because the axe head hits the same spot everytime and cannot move sideways. Also, it will never reach contact/impact with chopping block as the car-spring stops it at the right height making sure hands wont get crushed (unless between head and firewood - doh!). At least I reckon it could be adjusted so. Make sure you weld it well. The axe head weighs more than 38 kg!


Just thought i would share the concept.. maybe it has even been shared here already. What do I know. I have more detailed info on this if you are interested..

steward
Posts: 7926
Location: Currently in Lake Stevens, WA. Home in Spokane
329
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Simplicity at its finest.

That seems to work better and faster than some of the $1-2,000 units I have seen.


Posts: 196
Location: Perkinston Mississippi zone 9a
23
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I was just at lowes and refused to pay 1200 bucks for a splitter. PM me more details or post here, I'm interested.
Thanks for sharing the video.

Asbjoern Rohde
Posts: 10
3
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
So for some more details:

Firstly go to this website. It is in swedish, but contains a lot of photographs. Also an improved version of the one in the video is featured. Also another type where a spring works with tensional force instead of compressive (as the suspension spring does). http://www.pidia.se/ingmarsklyv.html

Materials and dimensions are:

- The spring comes from a car suspension. It is 43 (~17 in) cm long unloaded, and 29 cm (~11½ in). The steel diameter is 13 mm (33/64 in) and the whole spring is 16 cm (6 19⁄64 in) diameter. The part of the spring that moves comprises 5 1/3 winds. Trial and error would make other springs work too.. The splitter that uses tension springs (pulling the spring) are easier as you can combine several springs.
The spring sits in place only by means of the weight on top of it and by the aid of small blocks welded as seen on this picture:


- The shaft on which the axe head and weights are welded used was from an old harrow and is a square (hollow) steel bar with the measurements 75x75x4 mm (2 61⁄64 x 2 61⁄64 x 5⁄32 in) and 128 cm (50 25⁄64 in) long from one end to where the axe and weights are welded onto it.

As you can see the shaft has been hightened approx 8 cm (3 5⁄32 in) at the hinch to leave more space for the spring.
The weights and axe head are quite long (62 cm or 24 13⁄32 in) , and the handle has been placed fairly high to avoid having it in the way of the splitting wood. Among other scrap steel, hydraulic arms from a tractor were used for weight and welding the axe head onto.
These weigh 38 kg (83.8 lbs) alltogether.

The Axe head and weights should be welded to the shaft with a bit of an angle towards the hinch in order to direct the force directly from above onto the firewood log. Otherwise the axe head will be pointing slightly towards the operator as it travels in a circular motion.

The tip of the axe should be hovering an inch or so above the firewood log you intend to split when resting on the spring. Otherwise you have to lift the axe to place a log on the chopping block. A tip is to keep the cleaving surfaces that come in contact with the wood clean from rust to limit friction. Keeping the axe sharp is also important as this allows for the axe to cut through knots etc. This is of course optional. It can also function with a round edge for minimal risk of cutting injuries. Height of the axe position can be adjusted by moving spring closer or further away from the hinch.

- For a handle you can pretty much choose whatever you think will work for you. Don't go too thin as this may be uncomfortable.

- The hinch needs to be very robust and the one used here is from an old 'grip' from a small forestry tractor.

Be creative and find some steel bars etc for the rest of the construction.

To give a rough idea of the remaining measurements I will comment on the following picture:


The long steel bar on which the hinch and lower spring platform are welded onto measures approximately 155 cm (61 1⁄32 in).
The lower components in the frame forming a 'V' measures: The right side pair: 95 cm (37 13⁄32 in) and the left side pair: approx 75 cm (29 17⁄32 in).
Distance between the 'legs' comprised of the 'v' frame is 100 cm (39 3⁄8 in).
Lower spring platform sits approx 92 cm (36 7⁄32 in) above ground/feet.
Distance between where the 'v' frame joins onto the longer steel bar is approx 115 cm (45 9⁄32 in).

The left side of the 'v' is cast/imbedded in a block of concrete. Alternative would be another frame construction, bolting it to a floor etc.




The sturdier it is, the safer and more precisely it is, too.
Here he is making kindling using this big contraption, showing it is versatile.


If you keep the hinch well greased it should function without making much noise allowing you to enjoy the birdsong or a trickle of water while splitting wood

Cheers

pollinator
Posts: 3285
Location: Massachusetts, Zone:6/7 AHS:4 GDD:3000 Rainfall:48in even Soil:SandyLoam pH6 Flat
392
2
forest garden solar
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
So simply its beautiful. Love the video.
I also went to the website. google translated it for me. It was a good read.

John Redman
Posts: 196
Location: Perkinston Mississippi zone 9a
23
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Looks like art work, and with such precision.
Thanks for sharing this.

Posts: 9002
Location: Victoria British Columbia-Canada
689
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
There are electrically powered blacksmith hammers that work in the same way. They are often made from scrap metal. With interchangable heads, I could see one machine serving both functions. With a flat plate attached, it might be possible to pack forms with adobe or to make compressed earth blocks or to soften your muckluks ... or punish tresspassers...

Posts: 13
Location: noth western michigan, petoskey
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I want to mark this since we need something like that.

pollinator
Posts: 490
Location: Englehart, Ontario, Canada
2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Nice. For those of us without the metalworking tools or experience I could see this being framed up with 4x4's and just the head being metal. Neat ides!

pollinator
Posts: 4154
Location: Northern New York Zone4-5 the OUTER 'RONDACs percip 36''
61
hugelkultur fungi books wofati solar woodworking
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
WOW THIS NEEDS TO BE CO-LOCATED IN BOTH WOOD STOVES AND ROCKET STOVES ------ HOW DO WE GIVE THIS GUY THE APPLE ? ! ! ! ! BIG AL

Posts: 58
Location: Surrey, British Columbia
3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
This splitter is excellent! I love that there is no gas needed to operate it, and that it is simple to make. I am definitely going to make one myself!

gardener
Posts: 3597
Location: Cincinnati, Ohio,Price Hill 45205
480
forest garden trees urban
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
https://permies.com/t/12286/green-building/Vertical-plunger-wood-splitter-converts


Bumping this as It relates to Dale's post above.

pollinator
Posts: 296
Location: Ozarks
70
homeschooling goat dog building wood heat homestead
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hmmm. I've got an engine hoist I rarely use that would be the perfect frame for this. I'll be putting new springs in the front of my truck soon too. Thanks for the thread.

Posts: 137
1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hmmm, I remember when I was younger and wanted to show off for a girl. I would get a bunch of Cedar or Straight dry Pine and split it so Easily. Sure made me look like Macho Man. My Wood is real wood now and it has a bunch of non straight areas in the wood. Some of my stuff fights me and just does not want to split no matter what.

Posts: 1578
Location: Fennville MI
66
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Combine one of these with the chain or bungie around the log and you could move through some wood in a hurry.

steward
Posts: 35157
Location: missoula, montana (zone 4)
hugelkultur trees chicken wofati bee woodworking
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

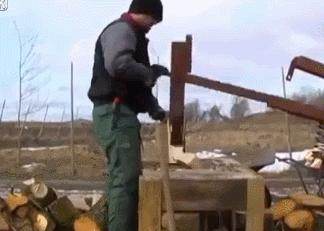

As a gif:


pollinator
Posts: 203
Location: Northern Ontario, Canada
94
goat dog gear books bike building
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I don't think I'll need something like this for a while yet, and I know I'm very late, but thank you for sharing this. I love this idea and the fact that it is put together with scrap parts. Definitely above my skill level currently but now I want to make one of these!!

pollinator
Posts: 365
98
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
We got the Logosol Smart Splitter (YouTube video) and I can attest it is excellent for easily splitting wood with minimal effort, effective safety and good ergonomics relative to other methods.


[Thumbnail for F70F773D-0710-4514-8EAE-BBE89FBDBFB2.jpeg]

Cam Haslehurst
pollinator
Posts: 203
Location: Northern Ontario, Canada
94
goat dog gear books bike building
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

James Whitelaw wrote:We got the Logosol Smart Splitter (YouTube video) and I can attest it is excellent for easily splitting wood with minimal effort, effective safety and good ergonomics relative to other methods.




I was skeptical when I first heard about that splitter, but it's neat to hear of your positive experiences with it. Thanks!

Cam Haslehurst
pollinator
Posts: 203
Location: Northern Ontario, Canada
94
goat dog gear books bike building
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I just wanted to add to this thread - I just found a 10 minute video of all sorts of variations of this design. The music may get annoying so just mute it if necessary.

Notes:

- it looks the most comfortable to use if you build it so you are standing straight up when operating it rather than bending down
- it looks the most efficient when there is some sort of surface to hold the split logs. Otherwise you use far too much energy bending down repeatedly to pick up pieces
- very few of the designs had a brake installed. This isn't as important if you're not using a lot of force, but if you're really reefing on it you want something to stop the head if you miss or the wood splits far easier than you thought
- brake is necessary especially if you are resting the log on concrete or metal to avoid damaging the splitting blade or the base


pollinator
Posts: 253
Location: USDA Zone 8b
43
monies foraging books medical herbs homestead
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I bet that setup is a lot safer than hydraulic wood splitters that can launch chunks at you.

Cam Haslehurst
pollinator
Posts: 203
Location: Northern Ontario, Canada
94
goat dog gear books bike building
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

T Simpson wrote:I bet that setup is a lot safer than hydraulic wood splitters that can launch chunks at you.



That's for sure. It takes some basic metalworking knowhow to make one but I think it'd be well-worth the effort.
