Moving a large rock.


Sheena Havens
Posts: 1
1
I like...
forest garden woodworking homestead
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
We have a very large boulder (roughly 1000lbs) in the middle of a road on our way out to our homestead. It hasn't been too much of a problem until recently after it started raining. Our problem is that we do not have the money to rent any equipment and are very limited on towing supplies. Since the picture attached was taken, the boulder was "spun" into a hole just a little more to the left of the rock to get my truck over it. And it has also rained making our current situation difficult.
[Thumbnail for 20180610_140442.jpg]

Steve Farmer
Posts: 571
Location: South Tenerife, Canary Islands (Spain)
7
I like...
forest garden trees greening the desert
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Have you got a hammer drill. Even a small 1kw drill running off the car battery with an inverter could smash that rock into several pieces in a few mins. Or hammer and chisel, try to make it crack in two

http://www.facebook.com/TFSForest


William Bronson
gardener
Posts: 3221
Location: Cincinnati, Ohio,Price Hill 45205
370
I like...
forest garden trees urban
posted 2 years ago
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Do you have a come along?
I have found them to be effective if tedious to use in situations where pulling with a vehicle isn't an option.

Eating Bindweed
Eating Buckwheat Greens
Paul explains why I spend time here,better than I could myself.


Tj Jefferson
pollinator
Posts: 1327
Location: Virginia USDA 7a/b
315
I like...
hugelkultur forest garden hunting chicken food preservation bee
posted 2 years ago
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
any trees uphill you could use a come-a-long and a tow strap to flip it?

Standing on the shoulders of giants. Giants with dirt under their nails


James Freyr
steward
Posts: 4183
Location: West Tennessee
1681
I like...
cattle cat purity fungi trees books chicken food preservation cooking building homestead
posted 2 years ago
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

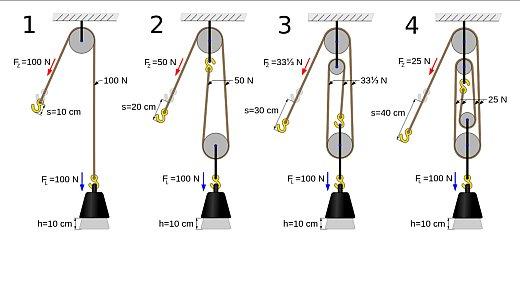

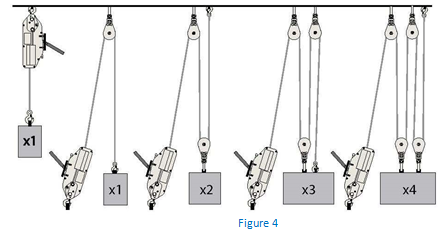

I think one good way to move that large rock is with compounding pulleys. I've included a couple graphics to show how they work. Essentially, when more and more pulleys are added in unison, it effectively reduces the force needed to move an object. I bet a sufficient length of rope, with a couple pulley's, tied to the rock and a couple trees off to the side of the drive there, and using that car, that rock can be dragged off to the side.







"Study books and observe nature; if they do not agree, throw away the books." ~ William A. Albrecht


Steve Mendez
Posts: 93
15
posted 2 years ago
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Sledge hammer, big chisel, leather gloves, eye protection. Bust that rock into movable pieces and you are good to go.

Travis Johnson
pollinator
Posts: 4958
1154
I like...
transportation duck trees rabbit tiny house chicken earthworks building woodworking
posted 2 years ago
  • Likes 6
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
There are a few no cost ways to deal with this, and many great ideas already given. But my suggestion would be via good old fashioned pick axe and shovel.

My ancestors often did this to rocks that were too big to move by oxen and stone boat. They just dug a hole next to the rock that was bigger than the rock was, then pushed the rock into the hole and covered it back over.

Brian Rodgers
pollinator
Posts: 324
Location: northeastern New Mexico
70
I like...
wood heat woodworking homestead
posted 2 years ago
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Yes all great ideas.Tried and true for me has been to cut six two foot long round logs to use as wheels. Get a nice big rock bar and try to get one corner of the rock up on one of the log rollers. Move it down hill and off the road. Beware on a hill the rock can get moving don't leave the truck or people below the rock. If it gets up on one roller use the rock bar on the opposite side of the rock to pry it downhill. As the rock moves up on the first roller add a second push it with leverage from the rock bar, repeat ...

I still don't understand all I know about this.


Peter VanDerWal
pollinator
Posts: 596
Location: Southern Arizona. Zone 8b
75
I like...
fish bike bee solar woodworking greening the desert
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
In the photo it looks like the ground slopes down on the right side.  Could you dig out the edge of the road there, add some water to make the mud slippery and then carefully push the rock off the road with the truck?

Other option, haul in a LOT of rock and gravel and bury the whole mess.

My opinions are barely worth the paper they are written on here, but hopefully they can spark some new ideas, or at least a different train of thought


Joshua Bertram
Posts: 412
Location: St. George, UT. Zone 8a Dry/arid. 8" of rain in a good year.
113
I like...
trees bike greening the desert
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
So my first thought is high lift jack and SAFETY!!!   It's what I'd try first.  I've slowly moved huge boulders by carefully flipping them end over end that way.......and I've almost lost a finger, so there's that.

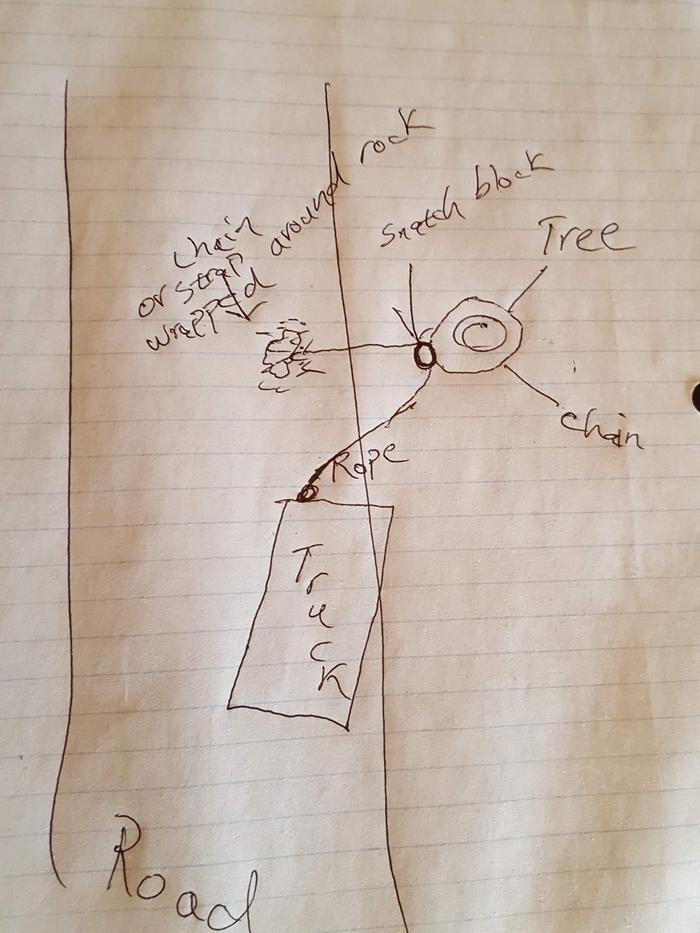

My second idea is probably easier to understand in a terrible illustration.  Basically you'd need a snatch block/pulley, some rope/wire that feeds over the pulley, a chain to wrap around a tree across from the rock, and another chain to wrap around the rock.  One end of the rope ties to the truck (and the truck should be pulling down hill with gravity), it threads through the pulley chained to the tree (or rock or whatever is heavier than what you're moving, and for the sake of kindness you really should be using a tree saving fabric strap around a living tree........but you got to do what you got to do) and ties off to the chained rock.
I think very slowly and methodically giving a quick yank, and then scooching with the highlift this could be done easily, but it would take a while especially done solo.

Good luck.  Fun stuff.

[Thumbnail for 20180707_094300.jpg]

I'm try'n. Rarely succeeding, but I'm try'n.


James Whitelaw
pollinator
Posts: 301
69
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
One approach would be to excavate on the side of the stone to the right in the pic that drops away from the road and use a lever to try worry the stone off the road. Advantage could be zero cost if a suitable pole is available nearby.

Another option would be to simply excavate the opposite side of the road and go around the rock.

Fredy Perlman
pollinator
Posts: 270
Location: Mason Cty, WA
34
I like...
hugelkultur forest garden fungi trees books earthworks cooking composting toilet food preservation writing homestead
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Got the time to build a biiig fire and a way to get water to it? Keep it surrounded by embers for a couple days, then suddenly douse it with quantities of the coldest water you can find. Make sure you're wearing goggles! It will quite probably crack, even shatter. Subsequent breaking it down is then much easier, if at all necessary.

What I would do, because of what I have, is use a 10k lb winch (about $240, and handy to have, though likely a friend has one to loan you) to move it out of the way. Chain winch to large tree, make a net of ropes, cable or chain, hook to winch and extract! If your car has a hitch you could attach winch to hitch too.

Michael Sohocki
pollinator
Posts: 148
37
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Yeah, Peter's got it. Dig under it. It likes going down.

Brian Jeffrey
pollinator
Posts: 156
Location: Rutland VT
31
I like...
dog forest garden foraging trees bike homestead
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I would second making a fire on the rock, for a while.  Can you have a cookout where the rock is?  Make it a fun event.  Then douse it in cooold water.  If there is no way to cool the water onsite, a few pounds of dry ice will help chill it a bit.  After you douse the hot stone, it should crack and be "easier" to hammer to pieces.

This is how people have dug their way into pyramids and other old stone vaults.  Looking up Egyptian rock mining or something similar should help illustrate this idea.

Another idea would be to use a cordless circular saw, cut a grid as deep as you can into the big face.  Sledge the chunks out and repeat.   Also this is sort of how people cut notches in wood if they only have a big saw and hammer.  It becomes fairly easy to knock out the smaller bits between the cuts, rather than just whacking away at solid rock face.



- Pancake


Cristo Balete
Posts: 826
Location: In the woods, West Coast USA
115
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Maybe I'm missing something, but why move it?  It looks quite flat, and if the rest of the driveway is covered with the layers of gravel- - I'm guessing, you will put on your driveway--  it actually becomes a solid surface.

Don't fall for the My-Place-Is-Special, It-Won't-Happen-Here Syndrome.


Joshua Bertram
Posts: 412
Location: St. George, UT. Zone 8a Dry/arid. 8" of rain in a good year.
113
I like...
trees bike greening the desert
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Seriously, these other replies are interesting, and would probably work, but really,
a hi-lift jack is all you need.  Or, it's all I'd need.  I know, because I've done it many, many, many, many, times.  It's great for pulling stumps out too!  It's two flips of that stone, and you're done.  One, if you're lazy, and swerve around it.
It's triangular from what I can see, giving it the perfect base, and tip to flip it from?  It's simple.

Here's an example of a rock probably half the mass of the one the op has.  It's all the same, though.

Safety.  Safety.  Safety.  Again, I barely got my finger pulled out from when the rock fell off the jack.  Yes, the rock will fall off the jack.  That handle will fly into your rib cage and break your bones if you're not paying attention.  There's a lot of force involved in this, but I think it is the simplest way to get this thing moved considering the op doesn't have a lot to work with.  It's a very valuable tool for less than $100.

[Thumbnail for 20180203_111041.jpg]
[Thumbnail for 20180203_155106.jpg]
[Thumbnail for 20180203_155132.jpg]

I'm try'n. Rarely succeeding, but I'm try'n.


Joshua Bertram
Posts: 412
Location: St. George, UT. Zone 8a Dry/arid. 8" of rain in a good year.
113
I like...
trees bike greening the desert
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
more.
[Thumbnail for 20180203_155733.jpg]
[Thumbnail for 20180203_160519.jpg]
[Thumbnail for 20180203_161457.jpg]

I'm try'n. Rarely succeeding, but I'm try'n.


Joshua Bertram
Posts: 412
Location: St. George, UT. Zone 8a Dry/arid. 8" of rain in a good year.
113
I like...
trees bike greening the desert
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
more.
[Thumbnail for 20180203_161933.jpg]
[Thumbnail for 20180203_162352.jpg]
[Thumbnail for 20180203_162542.jpg]

I'm try'n. Rarely succeeding, but I'm try'n.


Joshua Bertram
Posts: 412
Location: St. George, UT. Zone 8a Dry/arid. 8" of rain in a good year.
113
I like...
trees bike greening the desert
posted 2 years ago
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
more.

and now that otherwise useless rock has become a very nice seat for me to enjoy in my "sunflower" garden area.
[Thumbnail for 20180203_164653.jpg]
[Thumbnail for 20180203_173203.jpg]
[Thumbnail for 20180203_173250.jpg]

I'm try'n. Rarely succeeding, but I'm try'n.


John C Daley
pollinator
Posts: 1438
Location: Bendigo , Australia
90
I like...
dog gear plumbing earthworks bee building homestead
posted 2 years ago
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Was the beer used to clean the wound, before gluing the wound closed?

John Daley Bendigo, Australia
The Enemy of progress is the hope of a perfect plan

Benefits of rainfall collection https://permies.com/t/88043/benefits-rainfall-collection


Joshua Bertram
Posts: 412
Location: St. George, UT. Zone 8a Dry/arid. 8" of rain in a good year.
113
I like...
trees bike greening the desert
posted 2 years ago
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
The beer is always a constant, thus the injuries.

and I absolutely detest cleaning any wound.  I let my dogs do it for me.

I've not had so much as an aspirin in the last five years.

I'm try'n. Rarely succeeding, but I'm try'n.


Brian Rodgers
pollinator
Posts: 324
Location: northeastern New Mexico
70
I like...
wood heat woodworking homestead
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Curious if the original poster has seen all these "helpful ideas?"
Brian

I still don't understand all I know about this.


Travis Johnson
pollinator
Posts: 4958
1154
I like...
transportation duck trees rabbit tiny house chicken earthworks building woodworking
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

Travis Johnson wrote:There are a few no cost ways to deal with this, and many great ideas already given. But my suggestion would be via good old fashioned pick axe and shovel.

My ancestors often did this to rocks that were too big to move by oxen and stone boat. They just dug a hole next to the rock that was bigger than the rock was, then pushed the rock into the hole and covered it back over.



I was short on time when I wrote this so I did not elaborate on it, but for years we used to drive over this one rock in a field of ours. It was just enough so you had to pick the head of the chopper when we went over it. that was a pain, but seeing how big the rocks were on the rock wall, we knew it was big. (The rocks are always bigger on the down hill parts of a rock wall because Oxen could only pull them down hill).

One day I decided to remove this rock out of the field. It took a 34,000 pound excavator and a bulldozer working in unison to withdraw it from the hole. It was about the size of a small car. It was huge! But under it was the most beautiful topsoil. That was when I figured out how my ancesters had dealt with the rock. They had dug a hole and just buried it. frost had heaved it up over the last 200 years so that we could just feel it.


Travis Johnson
pollinator
Posts: 4958
1154
I like...
transportation duck trees rabbit tiny house chicken earthworks building woodworking
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

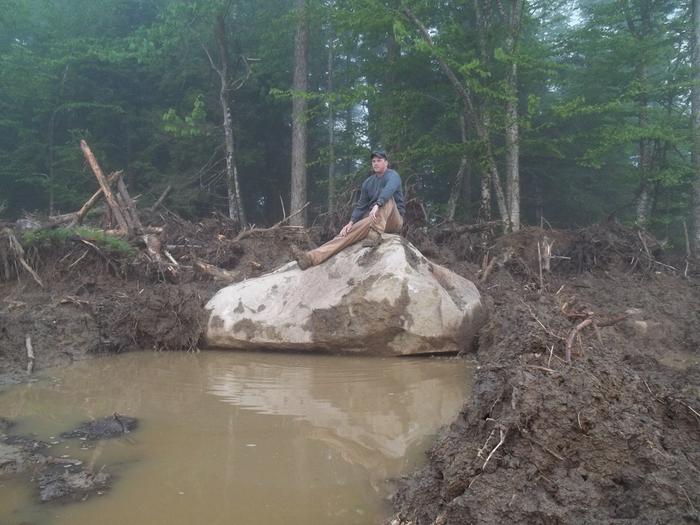

This rock is interesting.

It was the only one in this field cleared in 1838. It had a hole drilled into it for dynamite, but for one reason or another, was never blasted.

It took us 175 years, and ultimately 185 horse (horsepower) and one big bulldozer to get it to the edge of the field, but we do not give up easily! We are a patient family!

[Thumbnail for 100_1942.JPG]

Marco Banks
gardener
Posts: 1757
Location: Los Angeles, CA
485
I like...
hugelkultur forest garden books urban chicken food preservation
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

Fredy Perlman wrote:Got the time to build a biiig fire and a way to get water to it? Keep it surrounded by embers for a couple days, then suddenly douse it with quantities of the coldest water you can find. Make sure you're wearing goggles! It will quite probably crack, even shatter. Subsequent breaking it down is then much easier, if at all necessary.




^^^ THIS  ^^^

Build a HOT fire and heat that rock up to over 1000 degrees.  Hotter if you can.  If you've got old honey laying around, sugar burns at a very hot temperature.  Coal is also great for this task, as it burns tremendously hot and for a long time (albeit, it's a dirty burn).  Burn the fire all day and get that sucker good and hot.

While the fire is burning and heating up the rock, position a 55 gallon drum uphill from the rock.  After the fire has burned for many hours, fill the drum with 5  20 lb. bags of ice and equal amount of water.  Rake back the coals so the rock is exposed.  Dump to ice water down onto the rock.  It'll pop.

Sometimes the fire alone is enough to crack the rock.

https://www.youtube.com/watch?v=pslnI0IPEc8

"The rule of no realm is mine.  But all worthy things that are in peril as the world now stands, these are my care.  And for my part, I shall not wholly fail in my task if anything that passes through this night can still grow fairer or bear fruit and flower again in days to come.  For I too am a steward.  Did you not know?"    Gandolf


Marco Banks
gardener
Posts: 1757
Location: Los Angeles, CA
485
I like...
hugelkultur forest garden books urban chicken food preservation
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Or you could invest in some ecobust and let it do the job for you.

https://www.youtube.com/watch?v=E0uFoZ7das0

"The rule of no realm is mine.  But all worthy things that are in peril as the world now stands, these are my care.  And for my part, I shall not wholly fail in my task if anything that passes through this night can still grow fairer or bear fruit and flower again in days to come.  For I too am a steward.  Did you not know?"    Gandolf


Marco Banks
gardener
Posts: 1757
Location: Los Angeles, CA
485
I like...
hugelkultur forest garden books urban chicken food preservation
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Ecobust -- another example.

https://www.youtube.com/watch?v=gaAZNyisdOA

"The rule of no realm is mine.  But all worthy things that are in peril as the world now stands, these are my care.  And for my part, I shall not wholly fail in my task if anything that passes through this night can still grow fairer or bear fruit and flower again in days to come.  For I too am a steward.  Did you not know?"    Gandolf


Travis Johnson
pollinator
Posts: 4958
1154
I like...
transportation duck trees rabbit tiny house chicken earthworks building woodworking
posted 2 years ago
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Another way to split rock if a person lives where it gets cold enough, is to take a star drill, bore a hole down through the rock, then fill with water and plug with a wooden cork. When the temperature gets low enough, the water will freeze and shatter the rock since water expands by 9% when it is frozen.

Brian Rodgers
pollinator
Posts: 324
Location: northeastern New Mexico
70
I like...
wood heat woodworking homestead
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

Travis Johnson wrote:This rock is interesting.

It was the only one in this field cleared in 1838. It had a hole drilled into it for dynamite, but for one reason or another, was never blasted.

It took us 175 years, and ultimately 185 horse (horsepower) and one big bulldozer to get it to the edge of the field, but we do not give up easily! We are a patient family!


Now that's a nice rock.
Boy howdy I wish we had half that much moisture.
This year everything I do outside has a cloud of dust around it.
Come on rain!
I moved this rock across the yard and through the door to our earth-sheltered greenhouse using log rollers. This goes a lot quicker if there is a second person to help keep the leading edge on the rollers, but it still works, just slow like in this video.

Although it isn't shown in this video I also placed firewood in and around the flagstone steps of the sunken section of the greenhouse to protect the rock-work in case the rock got out of control. The rock  didn't hit anything somehow, but safety first matters. Getting it through a doorway shows how much control you can get using a rock bar to pry  the weight around.

I still don't understand all I know about this.


Michael Cox
pollinator
Posts: 2761
Location: Kent, UK - Zone 8
355
I like...
books composting toilet bee rocket stoves wood heat homestead
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Maybe split it first.

Moderator, Treatment Free Beekeepers group on Facebook.
https://www.facebook.com/groups/treatmentfreebeekeepers/


Mike Haasl
steward
Posts: 8897
Location: Northern WI (zone 4)
2549
I like...
hunting trees books food preservation solar woodworking
posted 2 years ago
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Notice how his coworker almost got squished at 2:25.  Be careful out there folks!

"Hundreds of years from now it will not matter what my bank account was, the sort of house I lived in or the type of car I drove... But the world may be different because I did something so bafflingly crazy that it becomes a tourist destination"

gift

Collection of 14 Permaculture/Homesteading Cheat-Sheets, Worksheets, and Guides
will be released to subscribers in: soon!
click here for details
reply
reply
    Bookmark Topic Watch Topic
  • New Topic
Boost this thread!
Similar Threads
More...
