Pallet Yurt.


pioneer
Posts: 167
Location: Herding farming god of travel and fast horses.Holy fool.
60
sheep greening the desert
  • Likes 21
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Pallet yurt design.8x8 foot sleeps 2 comfortably.7 pallets and a notched door.I'm trying to get the holes in the smokering right.I'd like to use  inch wooden poles or 1 inch conduit.Octagon smokerings our easier to make then wheels.I'm sewing a cover out of old blue jeans.What makes it a yurt is that it's temperary.It could be converted into a hogan if it is made more permanent.Make a foundation for it  put a tin roof on it and slipstraw walls would be awesome.Anyways hope this inspires somebody.Get out your seat.Get out there and try somethin.
[Thumbnail for palletyurtwalls.jpg]
[Thumbnail for palletyurtsmokering.jpg]

pollinator
Posts: 2363
Location: Canadian Prairies - Zone 3b
587
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Nice! The uses are endless. Except I have a hard time finding tall, good pallets all of the same size.

pollinator
Posts: 3844
Location: Marmora, Ontario
568
4
hugelkultur dog forest garden fungi trees rabbit urban wofati cooking bee homestead
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Really cool idea.

I was thinking of a barn-truss pallet structure, where the trusses were formed by the joined sides of pallets. Essentially, the roof would be assembled in barn truss arches of five pallets each, and set atop a box of pallet walls of appropriate size. At least a two-bedroom, maybe three with a loft.

Unfortunately, pallets in useable condition are becoming more expensive with the increased cost of lumber. You obviously found what you need. I would suggest deconstruction and reuse rather than demolition and burning when you're done with this iteration. Though by that time, pallet prices might have come down.

Great idea, though. I was considering a yurt recently, but the land we're buying has a cottage on it, so we'll work with that first.

-CK

master gardener
Posts: 6864
Location: Pacific Wet Coast
3084
duck books chicken cooking food preservation ungarbage
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Ben - how have you joined the pallets together - I think I can see a little wire in the picture, but it's not clear? If it's temporary, I find nails a pain to remove, so I'd want to use something else. Similarly, how are the "rafters" attached to the skids?

It would weaken the structure to rotate the roof so the one rafter wasn't in the center of the door, but maybe it could be shorter? Some yurt doors have a curve above them in the roof to redirect water. That said, many places that use yurts traditionally were not known for the kind of rain the Wet Coast gets!

I'm thinking the concept also might make a good temporary chicken coop?

gardener
Posts: 610
Location: Geraldton, Ontario -Zone 1b
224
hugelkultur forest garden foraging tiny house wood heat
  • Likes 7
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I thought it was cool until I read this part:

Ben Skiba wrote:I'm sewing a cover out of old blue jeans.



Now, I think it's awesome.

pollinator
Posts: 1032
Location: BC Interior, Zone 6-7
311
forest garden tiny house books
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I'm curious about your rafters, too. What keeps them from spreading and the roof flattening?

I like the idea very much. I'm often mulling over ideas for quick guest housing. Enticing family to visit would be easier if it wasn't a bring your own tent situation here.

pollinator
Posts: 200
Location: Saskatchewan
81
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I like this idea and design. Simple yet effective.

Ben Skiba
pioneer
Posts: 167
Location: Herding farming god of travel and fast horses.Holy fool.
60
sheep greening the desert
  • Likes 7
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
The Walls I used bailing wire to tie them together.There our 2x4's I drilled on top of the pallets.I feel like a plate where they join would be good.I'm Trying to make another smoke ring with 1 inch holes in using 1 inch round wood or conduit.I'm struggling with drilling the same angle everytime.I made a jig for it but they still seem to be off.I'm working on it.For the moment I used screws and toenailed it in just to see how it would work.You could use 2x4's or round or rough lumber for the walls instead of pallets I feel like.Yeh the rafter by the door can knock some common sense into you if your not paying attention.Could definitely shorten it. If it were more permanent I feel like a you could put a 8 foot porch ajoining off of the roof.A pallet shed's our great I built one at my dad's house 14 years ago it's still standing.Yeh it'd make an awesome chicken coop haha.

Posts: 37
21
  • Likes 11
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Quality pallets: try the large "flooring" stores in industrial parks. Often they come on pallets from the source country and made out of the same exotic woods. Let that sink in. Often the cheapest available wood for pallets in the areas where high end wooden flooring comes from are those same forests. The carbon foot print has already been done.  I floored a small (500 sq foot) house entirely with things like Teak, for the trouble of going, looking, asking about the stacks of pallets behind those huge industrial park buildings. They were grateful not to pay to haul it off to be burned (gasp!) and I drove off going "BwaaHaaHaa! Scored!"

leigh gates
Posts: 37
21
  • Likes 7
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Also, same industrial parks. Check the outfits who import large machinery.  They have huge , often odd shape pallets, out of heavy duty 4x8 & 8x10 lumber.

Posts: 114
6
3
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I can only work with the cards I am dealt with so this is a SPECULATIVE proposal
for the future me. I have lots of discarded umbrellas. The ribs and handle are
the weak spots but the fabric is still good and WATERPROOF. Sewn together, it
would make a decent roof. I have lots of discarded 3/4 inch tubing. If I heat the
tips then smash them flat, I can drill holes in them and screw together some
kind of geodesic frame. I haven't figured how to anchor this because the storms
are really powerful with rain driven at 45 degrees. Umbrellas won't help and
your pants will be soaking wet until the knees or even higher. Just yesterday
a window pane over a bucket solar dehydrator was blown unto the road. It
is now crushed glass.

Posts: 29
Location: Wasilla, United States
4
2
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
This looks incredible. We use recycled pallets for all kinds of projects. My greenhouse, the fence around the pig pen and after seeing this...Possibly a chicken Yurt. Need a couple new coops this year. This may be just the thing. Can't wait to show hubby in the morning. Thank you for sharing.

Posts: 83
Location: Manitoulin Island - in the middle of Lake Huron .Mindemoya,Ontario- Canadian zone 5
8
6
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I really like this idea.  The one change I would make if I build one of these myself  (an idea I am seriously considering)  is that I would make the roof out of round cedar poles, of which I have an abundance.

I  would place them tipi style, which will naturally create a smoke  hole. I would use metal straps screwed in place along with a few very  long screws to attach these poles to the top of the pallets.

Tall, good quality pallets like in your picture are indeed very hard to come by in my remote rural location, but I can source lots of 4 foot high pallets, so maybe I will make more of a tipi/yurt hybrid. This would still give more usable head space room inside.

As I am thinking of making this to house interns on my farm in the summer, I plan on placing the structure on a wooden platform built with simple concrete blocks on the ground as a foundation.  This will keep them dry and give them a bit of a mini patio to sit on when the sun is out.

Vickey McDonald
Posts: 29
Location: Wasilla, United States
4
2
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
One thing my husband pointed out was that for our location the roof ring being toe nailed together would not work. Our snow loads are much to heavy for this option. Will need to explore more sturdy options.

Posts: 4
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Yurts are cool. This design looks simple and ideal for our sheep or chickens, as we expand the flocks.

Equally good for guests staying a small time, and keeping their plans on track... a small time : )

gardener
Posts: 4001
Location: Cincinnati, Ohio,Price Hill 45205
595
forest garden trees urban
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I happen to belong to a bike coop, mostly for the gardening and the cool scrap.
I've been messing around with the rims for a couple of years now, looking for ways to reuse them.
I think they would make nice smoke holes, and they are strong enough to be through bolted.
A 16" rim at the very top could be followed with a second 29" rim beneath that.
I think such double construction would be very strong.
You could add more rims between each of the roof poles, for more strength.
You could even cut one into the face of one of the pallets as a window frame.

If I was using metal conduit for the roof poles, I might smash the ends flat to form the connection, but I think it would lose a lot of strength at that point.
An alternative would be to run wire, cable or paracord run through the center of the pole, through a hole in rim of the smoke ring and back through the pole to the bottom end where it could be twisted or tied onto the top of the yurt wall.
This could provide strong inexpensive joint that was only flexible where you wanted it to be.
We could connect the walls of the yurt to each other with hinges, wire, bits of car tire, plywood gussets or some combination of these.
I prefer T25 drive deck screws for almost all construction, because they are durable, easy to drive and relatively easy to remove.

Posts: 5
1
  • Likes 6
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
You need to run a cable on or near the end of your roof boards. notch the boards or drill holes near the end. If you don't the roof will push out and collapse.

William Bronson wrote:
I've been messing around with the rims for a couple of years now, looking for ways to reuse them.
I think they would make nice smoke holes, and they are strong enough to be through bolted.


Yea, bike rims work for a center hub. This is my hub on a 15 foot yurt. I wanted to mount a small wind turbine on the shaft but never got around to it. I built it to take to festivals. It's been to Bonnaroo, Burning Man and a bunch of other festivals. My son commandeered the yurt and has been living in it off and on for the last 16 years.

[Thumbnail for yurt-hub.jpg]
[Thumbnail for 1-yurt3.jpg]
[Thumbnail for 1yurt2.jpg]

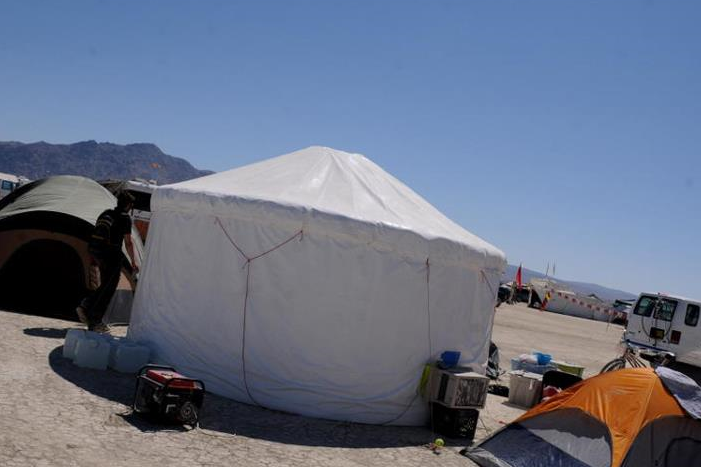

[Thumbnail for burning-Man.png]

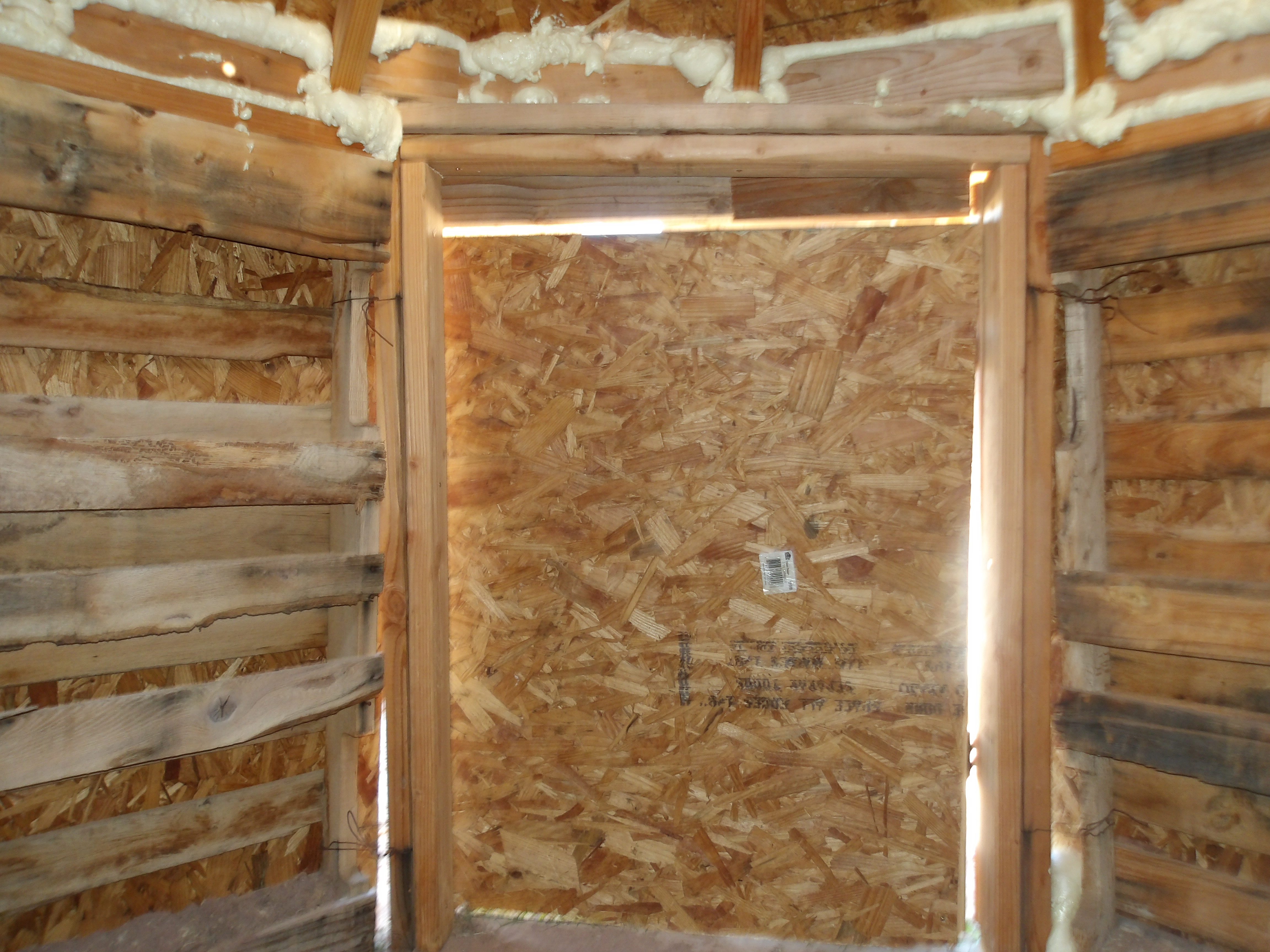

[Thumbnail for yurt-inside.jpg]
[Thumbnail for yurt4.jpg]
