PTJ Event 2022 - Bee Track! New Hive Designs

posted 3 years ago
  • Likes 6
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
This page is to discuss the new hive shelter & hive design at the PTJ this Summer!





In this track, artifacts include

- Build a Log Beehive
- Build a Warm Trap
- Extract Honey
- Build New Hives ( Langstroth, Warre, Comfort, Top-bar or another style )
- Building a new hive structure

Jacob Wustner will be the instructor for this track!

This thread is to share and discuss the designs for the new hives and shelter at Wheaton Labs!





Learn more about the Permaculture Technology Jamboree HERE
COMMENTS:

Paul Sofranko
Posts: 2035
Location: western NY (Erie County), USA; zone 6a.
404
2
I like...
hugelkultur monies cat forest garden tiny house books wofati bike medical herbs writing ungarbage
posted 3 years ago
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Here are some links for further information on beehives right here on permies:

https://permies.com/t/49655/Keeping-Bees-Colder-Climates-Warre

https://permies.com/t/24084/Converting-Langstroth-Warre-Style

https://permies.com/t/93788/Warre-Hive-Hut

https://permies.com/wiki/169305/pep-animal-care/Set-conventional-bee-hive-PEP

https://permies.com/t/19188/Warre

https://permies.com/t/9788/Bees-moving-Warre-box



Mike Haasl
steward
Posts: 15764
Location: Northern WI (zone 4)
4967
7
I like...
hunting trees books food preservation solar woodworking
posted 3 years ago
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator

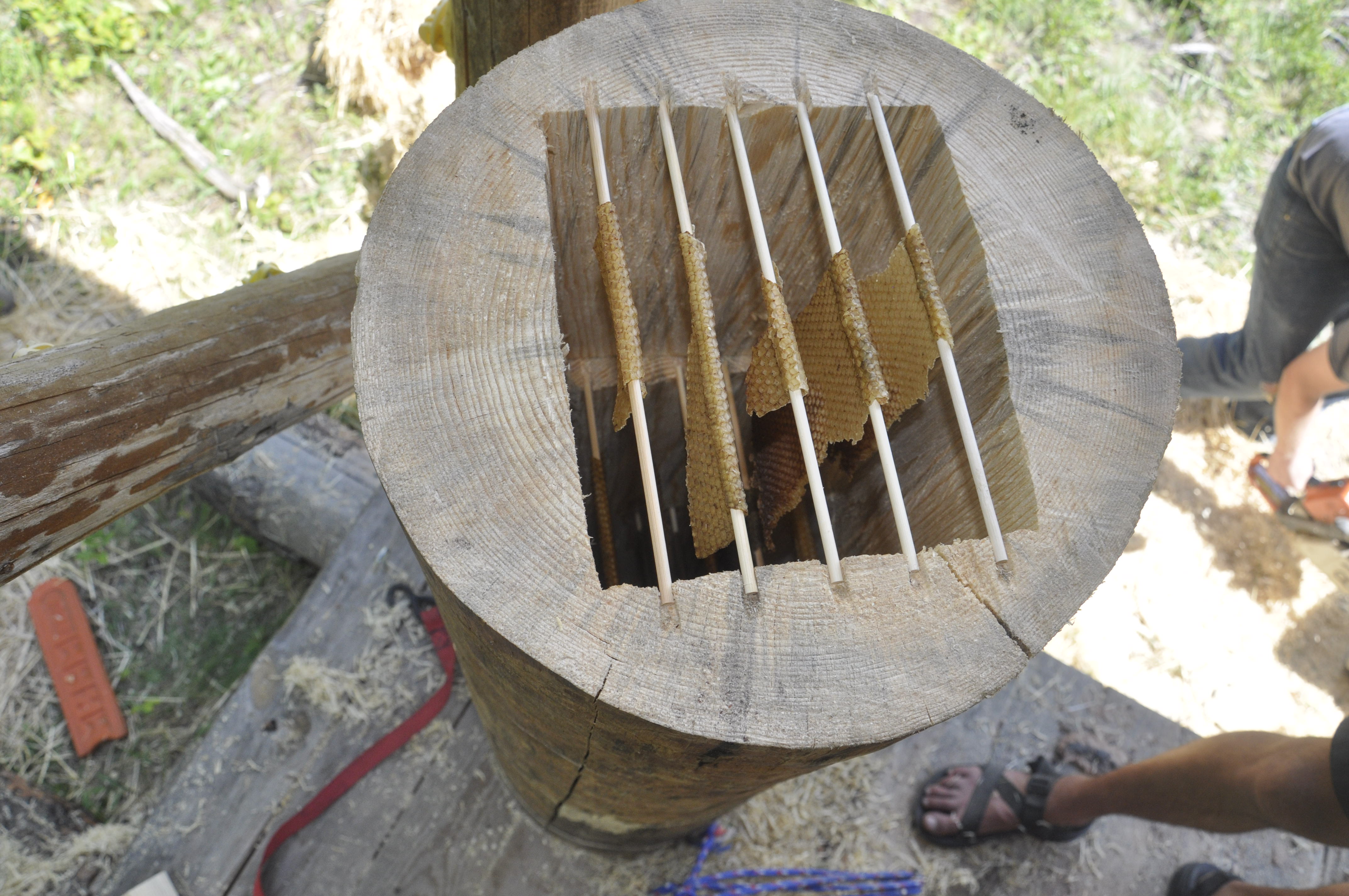

Here's one that might help for the log bee hive.  I haven't had bees move in yet...

https://permies.com/t/138758/Details-hollow-log-hive

SKIP books, get 'em while they're hot!!! Skills to Inherit Property
See me in a movie building a massive wood staircase:Low Tech Lab Movie


Liv Smith
steward
Posts: 4116
Location: Pacific North West
1930
I like...
cattle foraging books chicken cooking food preservation fiber arts writing homestead
posted 3 years ago
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Directly interested in this one! Looking forward to the discussion and project!

The best gardening course: https://gardenmastercourse.com
Permies.com FAQ


Scott A. J. Johnson
Posts: 14
Location: Cooksville, WI
4
posted 3 years ago
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
We've built some of the long Langstroth hives. So far this is my favorite type of hive. Three free plans here: https://lowtechinstitute.org/2017/03/26/beehives-three-ways-long-lanstroth-layens-and-tragkupa-for-sale-too/
One of the plans is for a Swedish Trågkupa. I haven't built it yet, but it is still on my list. It is essentially a big box with a trough that holds the bottom box of frames. Then Lang or other boxes are stacked inside for additional hive space, over which the entire big box gets closed. It can be insulated in the winter. Could be disguised to look like something other than a beehive if your local codes aren't friendly, not that I would encourage lawlessness.
I hope you'll share how the log hive turns out.
The bee stand and cover is nice. Do you have bears? Such a stand would lend itself to bear-proofing. I've put Langstroth hives into a shed (https://lowtechinstitute.org/2018/05/22/introducing-den-bienenstall/) with a side entrance. Also nice if you have a spare shed sitting around.

Low Tech Institute (.org)
Low Tech Podcast (iTunes, Spotify) | Videos | Research


Maria Viggiano
Posts: 1
posted 3 years ago
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Looking for all information about log hives

T Blankinship
pollinator
Posts: 625
Location: South East Kansas
212
7
I like...
forest garden trees books cooking bike bee
posted 3 years ago
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Cool idea! More hive designs are always good.

You should never forget that every creature has its purpose in the cycle of nature and can also be very important to humans. Sepp Holzer's Permaculture


Ashley Cottonwood
gardener
Posts: 1958
Location: British Columbia
1116
3
I like...
monies home care forest garden foraging chicken wood heat homestead ungarbage
posted 3 years ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Here is a photo of Jacob working on his hives!

Like my shiny badges? Want your own? Check out Skills to Inherit Property!


jacob wustner
Posts: 68
Location: Western Montana
16
I like...
goat hugelkultur fish hunting chicken bee
posted 3 years ago
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Hi Everyone!

I just wanted to pop on here and give a little info on what we will be doing at the Jamboree in the Bee Track.

We will be building a horizontal log hive, that has top bars, so basically a top bar hive that has super thick walls.

We will also build a vertical log hive, but one that is divided into 3 or 4 shorter sections so that it can be easily inspected and manipulated.  We will do either top bars or bamboo skewers for the combs to be drawn from in this hive.

I would like to build a couple of Comfort hives (the modern lay person's Warre hive) and maybe a Langstroth hive as well.  And last but not least we will build at least one swarm trap (not warm trap!) if not more.

If there's any honey in the old hive we will extract it and maybe even process some beeswax.  Throughout the event I will be discussing Treatment Free beekeeping and the ethics of honey bee husbandry.

Can't wait to see you all there!!

Learn permaculture beekeeping from your home! You can find it here at :

organiclifeguru.com/course/beekeeping-101-organic-natural-traditional/


jacob wustner
Posts: 68
Location: Western Montana
16
I like...
goat hugelkultur fish hunting chicken bee
posted 3 years ago
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Here's my first sketch
Plan for Horizontal Top-bar Log Hive
Plan for Horizontal Top-bar Log Hive

Learn permaculture beekeeping from your home! You can find it here at :

organiclifeguru.com/course/beekeeping-101-organic-natural-traditional/


jacob wustner
Posts: 68
Location: Western Montana
16
I like...
goat hugelkultur fish hunting chicken bee
posted 3 years ago
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Here's my first sketch of the vertical design
Plan for Vertical Sectional Log Hive
Plan for Vertical Sectional Log Hive

Learn permaculture beekeeping from your home! You can find it here at :

organiclifeguru.com/course/beekeeping-101-organic-natural-traditional/


jacob wustner
Posts: 68
Location: Western Montana
16
I like...
goat hugelkultur fish hunting chicken bee
posted 3 years ago
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
The theory behind the log hive is that the bees will do better in a more naturally shaped home.  So the reasoning for  thicker walls is to provide better insulation, and better protection from predators and the elements.  People may go on about additional benefits but for me it comes down to these couple of things.

The downside of log hives are their potential for weight.  Honey, pollen and beeswax are all heavy enough.  Add 3 more inches of hardwood and the hive becomes a pain to move or manipulate. This is the reason why I chose the top bar design for the horizontal hive and a sectional vertical design.

To harvest the honey from vertical design, one must simply remove the top section, remove all the combs and replace it by putting it in the bottom position, like the Warre method.

The entrances will be one small knot hole in each section of the vertical hive, and one 1/2" x 4" entrance at one end of the horizontal hive.

Learn permaculture beekeeping from your home! You can find it here at :

organiclifeguru.com/course/beekeeping-101-organic-natural-traditional/


Mike Haasl
steward
Posts: 15764
Location: Northern WI (zone 4)
4967
7
I like...
hunting trees books food preservation solar woodworking
posted 3 years ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
As the log dries out it will try to shrink and will crack.  So the end sections of the horizontal log may want to be fatter than shown to resist excessive deformation.  You may also want to build some adjustment into the system for that shrinkage.  Lastly, when you cut the slab off for the roof, it will be a tad bit smaller than the part of the log it's sitting on so rain may not be shed as well as the bees would prefer.  Maybe a slab off a bigger log could be the lid?

SKIP books, get 'em while they're hot!!! Skills to Inherit Property
See me in a movie building a massive wood staircase:Low Tech Lab Movie


Dave Dahlsrud
pioneer
Posts: 549
Location: North-Central Idaho, 4100 ft elev., 24 in precip
60
9
I like...
hugelkultur fungi trees books food preservation
posted 3 years ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Just curious if there's been thought/discussion on squaring off the inside of the vertical log hive so that you could use standard-ish sized frames?  Maybe do a side by side with a rounded out vs squared off vertical log hive to see which works out better...

Permaculture and Homestead Blogging on the Traditional Catholic Homestead in Idaho! Jump to popular topics here: Propagating Morels!, Continuous Brew Kombucha!, and The Perfect Homestead Cow!


Rachel Michelle
Posts: 46
3
posted 3 years ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
I love the ideas on here! Truly amazing.
Wanted to share the log hive version described by Anastasia in the Ringing Cedars books. She explains in detail how to construct a hive that is most in accordance with nature. This is how I plan to create my hive when I get the chance!
http://cottarton.blogspot.com/2012/05/building-anastasia-hive.html?m=1

Andrew Schrenk
Posts: 2
1
4
posted 3 years ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Besides the weight issue, are any particular woods that are better for a log hive? Do the bees like certain types better than others? Thanks!

Jesse Glessner
Posts: 469
Location: Indiana
61
5
posted 3 years ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator

jacob wustner wrote:Hi Everyone!
I just wanted to pop on here and give a little info on what we will be doing at the Jamboree in the Bee Track.
We will be building a horizontal log hive, that has top bars, so basically a top bar hive that has super thick walls.
We will also build a vertical log hive, but one that is divided into 3 or 4 shorter sections so that it can be easily inspected and manipulated.  We will do either top bars or bamboo skewers for the combs to be drawn from in this hive.
I would like to build a couple of Comfort hives (the modern lay person's Warre hive) and maybe a Langstroth hive as well.  And last but not least we will build at least one swarm trap (not warm trap!) if not more.
If there's any honey in the old hive we will extract it and maybe even process some beeswax.  Throughout the event I will be discussing Treatment Free beekeeping and the ethics of honey bee husbandry.
Can't wait to see you all there!!



Here is a link for FREE PLANS of the Layens type Horizontal Hives.
https://www.horizontalhive.com/how-to-build/hive-frame-swarm-trap.shtml
The greatest feature about these is that the frames, when full of honey, run from 8-10 lbs., so no heavy lifting!!
The odd feature is that the frames are much larger than the Langstroth frames, meaning that you need to buy or build larger equipment to extract the honey (IF you're not doing it manually).

I would like to be at the event to see all of it, but, unfortunately I won't be able to go. Good Luck on your hive building!

JayGee


Felicia Rein
Posts: 154
14
2
posted 3 years ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
What is required to hew out a log for the purpose of a beehive?  it seems like it was take a lot of work and time?

Mike Haasl
steward
Posts: 15764
Location: Northern WI (zone 4)
4967
7
I like...
hunting trees books food preservation solar woodworking
posted 3 years ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Depends how you do it.  Youtube shows a few different ways.  I cut mine out with a chainsaw so it wasn't too time intensive.

SKIP books, get 'em while they're hot!!! Skills to Inherit Property
See me in a movie building a massive wood staircase:Low Tech Lab Movie


Beau M. Davidson
steward
Posts: 10887
Location: South Central Kansas
3053
9
I like...
kids purity fungi foraging trees tiny house medical herbs building woodworking wood heat homestead
posted 2 years ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Took some snaps of Jacob and the bee crew at work today.
[Thumbnail for _DSC0364.jpg]
[Thumbnail for _DSC0362.jpg]
[Thumbnail for _DSC0360.jpg]
[Thumbnail for _DSC0357.jpg]
[Thumbnail for _DSC0354.jpg]
[Thumbnail for _DSC0339.jpg]
[Thumbnail for _DSC0337.jpg]
[Thumbnail for _DSC0336.jpg]
[Thumbnail for _DSC0335.jpg]
[Thumbnail for _DSC0332.jpg]
[Thumbnail for _DSC0330.jpg]
[Thumbnail for _DSC0320.jpg]

How Permies Works
Herbal Tea CSA


Beau M. Davidson
steward
Posts: 10887
Location: South Central Kansas
3053
9
I like...
kids purity fungi foraging trees tiny house medical herbs building woodworking wood heat homestead
posted 2 years ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator








How Permies Works
Herbal Tea CSA


It is difficult to free fools from the chains they revere - Voltair
build a better world instead of being angry at bad guys
https://greenlivingbook.com
reply
reply
    Bookmark Topic Watch Topic
  • New Topic
Boost this thread!
Similar Threads
More...
