This is a badge bit (BB) that is part of the PEP curriculum.  Completing this BB is part of getting the straw badge in Electricity.

In this Badge Bit, you will add a breaker and install an outlet circuit.  Sick of having three extensions cords running to the garage?  Time to install some outlets on their own circuit!

Here's a video of a guy installing a breaker:


And here's one of a guy explaining an outlet circuit:


To complete this BB, the minimum requirements are:
  - install a new breaker
  - At least 4 outlets or one 20A dedicated outlet (fridge, disposal, etc)

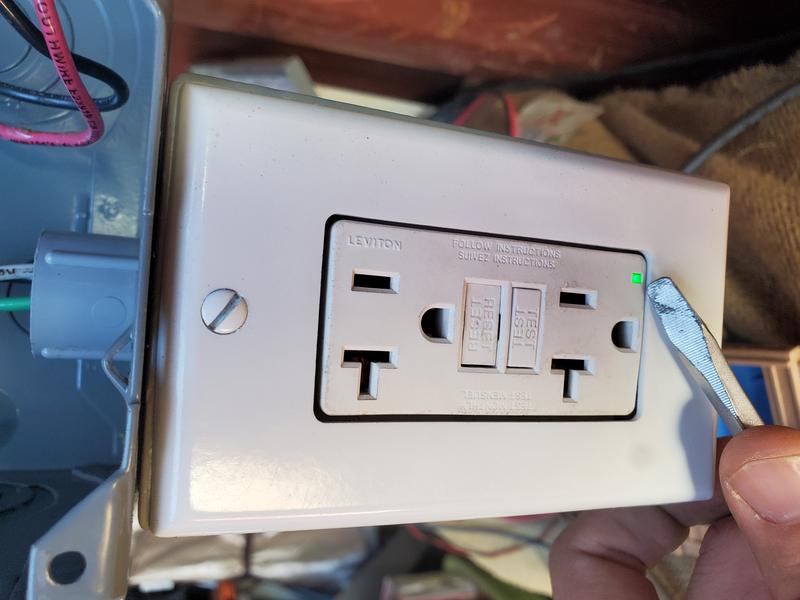

  - If GFCI or AFCI protected, you earn an extra ½ point

To show you've completed this Badge Bit, provide proof of the following as pics or video (less than two minutes):

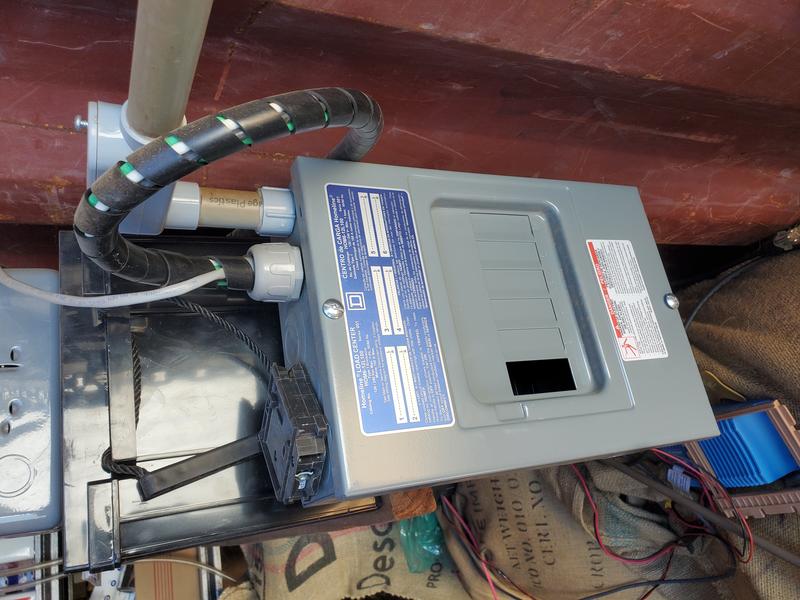

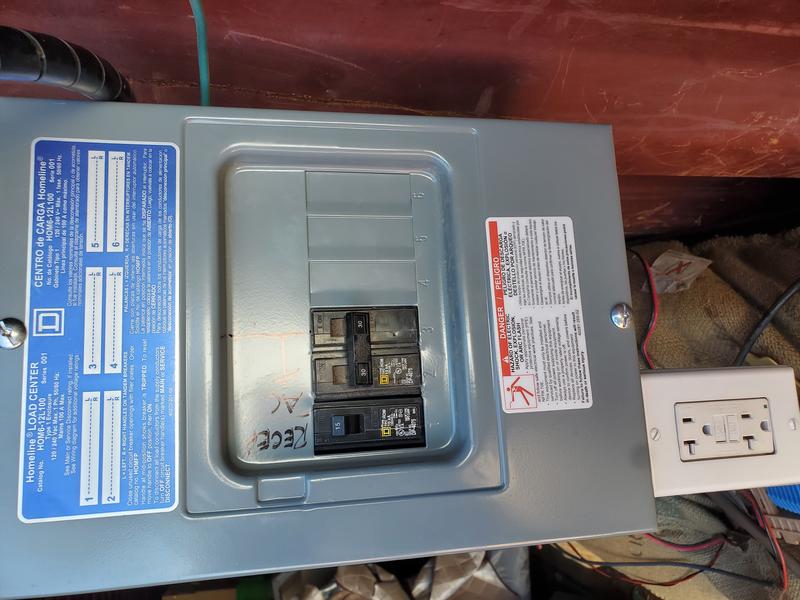

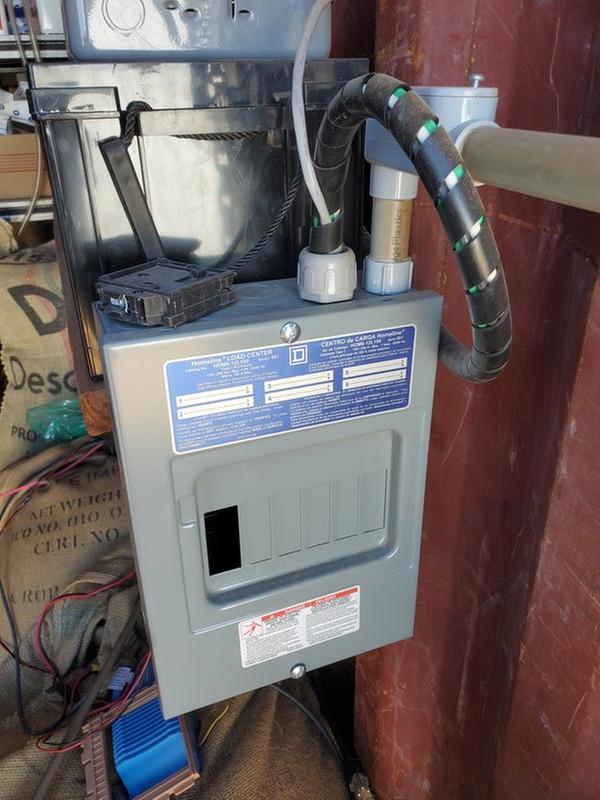

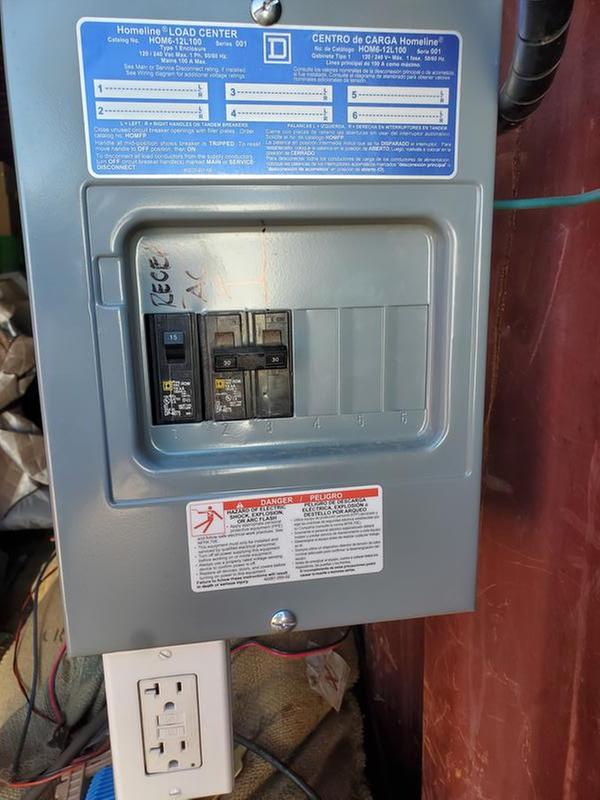

  - the breaker box before and after the breaker installation

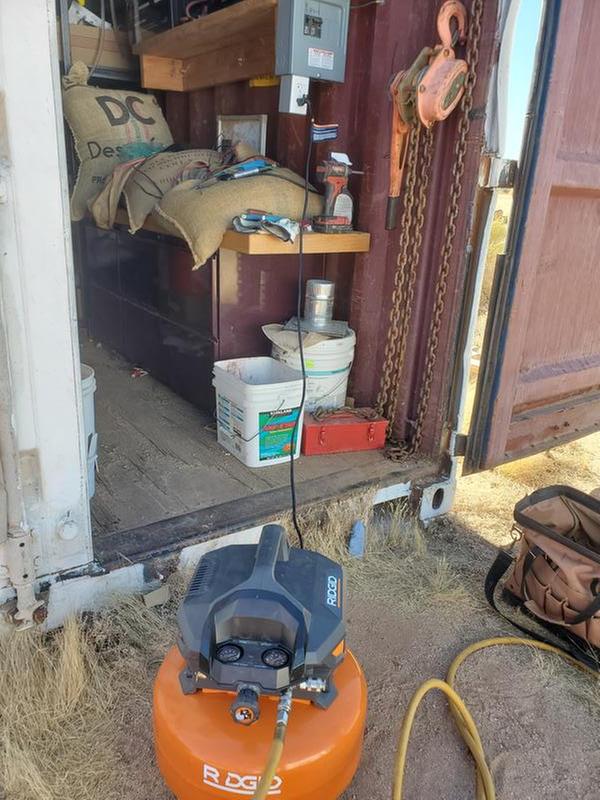

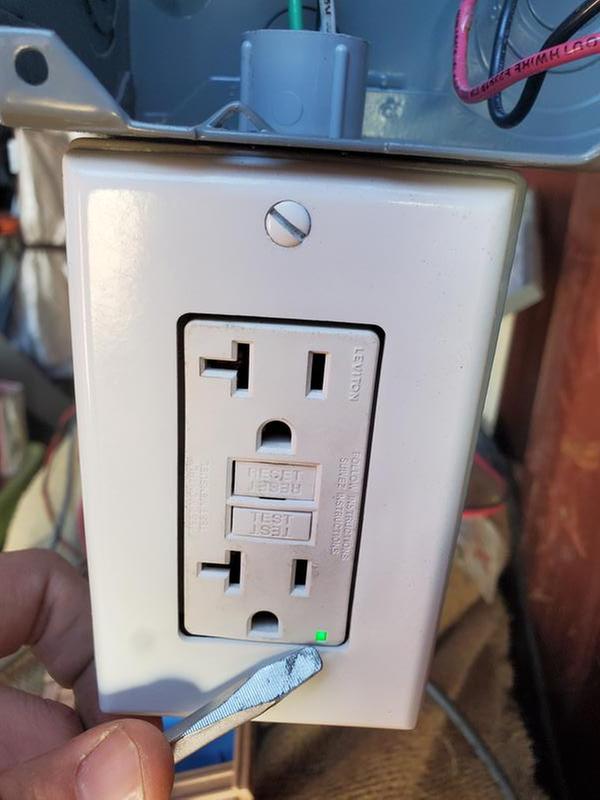

  - the area before and after the outlet(s) are installed

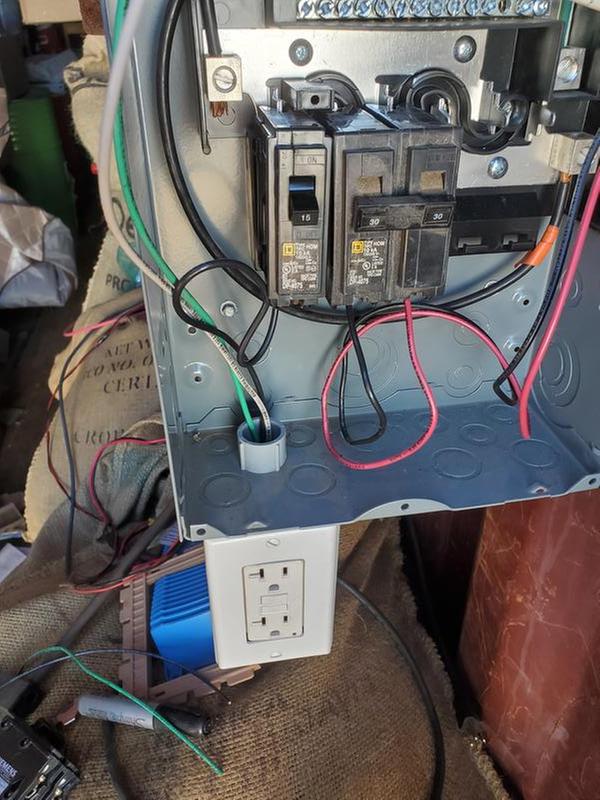

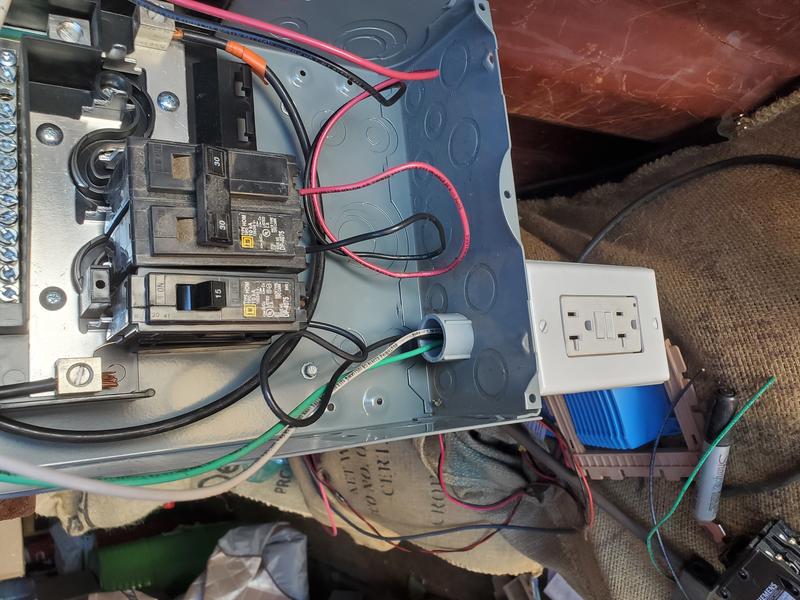

  - the work in progress
