! the first wofati - allerton abbey- version 0.7


gardener
Posts: 838
Location: western pennsylvania zone 5/a
54
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator


"Before it was even finished the citizens of Ant Village were gathering and socializing on this new space, which is actually now the largest flat and level outdoor space on the entire lab. This becomes quite a commodity when the only place to sit is on the dirt, rocks, or pine cones of the forest floor."


now Paul won't be able to get anything done

pollinator
Posts: 318
Location: New Zealand
14
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Beautiful

Lab Ant
Posts: 274
Location: Orange County, CA
158
hugelkultur forest garden trees tiny house wofati bike bee woodworking
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Brian returned to Wheaton labs towing a load of new straw bales, so I was able to resume work on the straw bale wall. After to talking to Brian, I've decided to go about building the wall in a slightly different way, which should help simplify the process. Instead of custom shaping each bale to fit around the door beam and posts, I fit a few full bales in along with shortened bales with simple straight sides. The areas that are left to be filled in I will cover with metal lath and pack straw tightly into the cavity. The lower wall was pretty straight forward, with just a few short bales with straight sides to tie up and cut. I tied the bottom two courses of bales to the support logs using the wires w had attached to the dead men. The spaces between the window/door bucks and the upper beam just so happened to be barely wide enough to stuff a whole bale into, after a little persuasion. These bales were wire tied to the upper beam, although I don't think they are going anywhere without the ties, just to be sure. The upper triangle section was a little trickier, since I had to cut bales at an angle to fit under the roof. It took a couple tries to get the angle right, but I was able to stuff two nearly whole bales into the space and nearly fill it up. These bales are tied with wire to the upper beam as well, although again, I don't think they would move very easily considering how tightly stuffed in there they are. I got the wall mostly filled up in one day using the simple cuts, and then experimented with using the lath around the door beam. It seems to be working pretty well.
[Thumbnail for IMG_20150813_133354364.jpg]
the lower wall filled in with two whole bales and two shortened bales.
[Thumbnail for IMG_20150813_202846293.jpg]

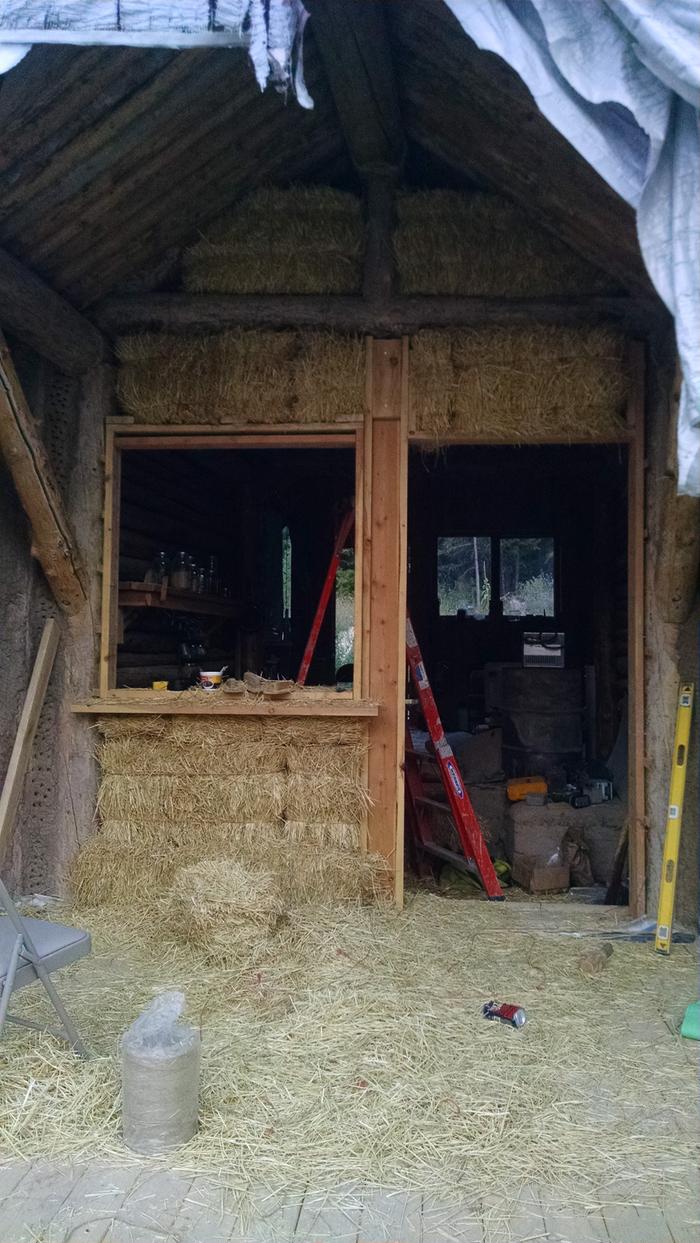

The wall filled in with bales.
[Thumbnail for IMG_20150814_122545735.jpg]

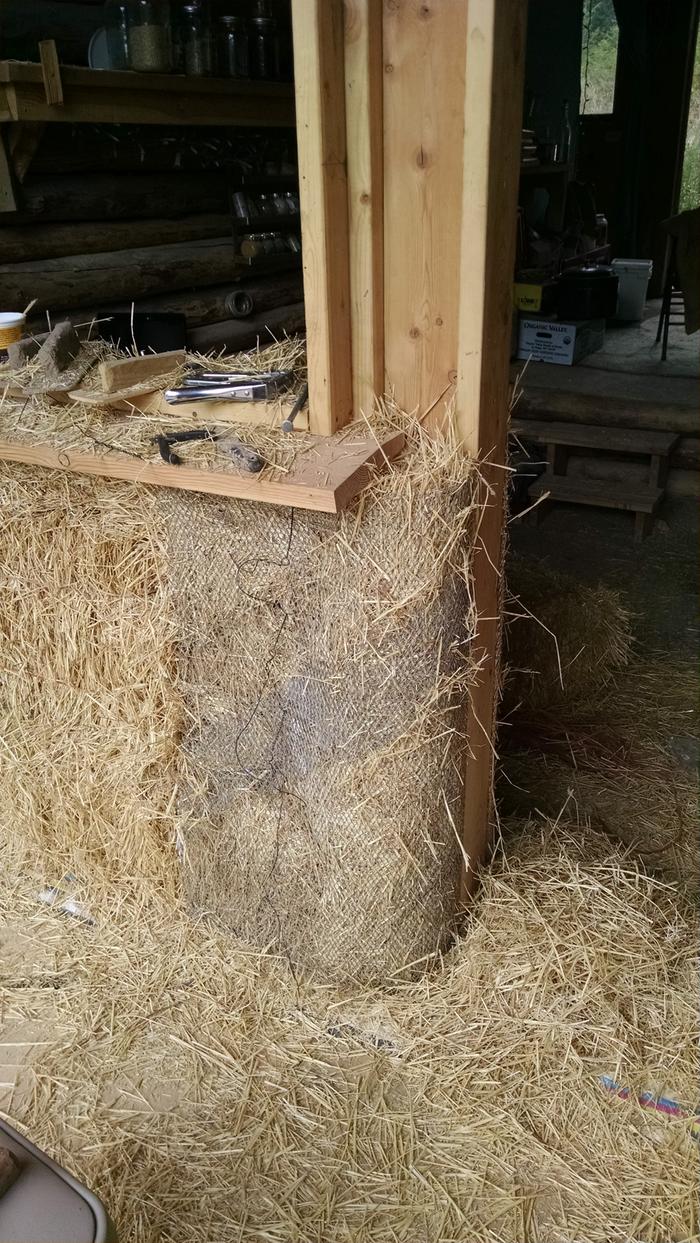

Metal lath around the door beam, stuffed tight with straw.

pollinator
Posts: 4154
Location: Northern New York Zone4-5 the OUTER 'RONDACs percip 36''
59
hugelkultur fungi books wofati solar woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
- After some (understandable ) comments about iron/steel within the COB mass or the COB shell I just want to understand

(or a close approximation ) What the lath is going to be used for !


More and More Post and Beam construction reminds me of the Pen/Dutch Barns of that Region ! For the Crafts Big AL

pollinator
Posts: 1479
Location: Vancouver Island
49
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

allen lumley wrote:- After some (understandable ) comments about iron/steel within the COB mass or the COB shell I just want to understand

(or a close approximation ) What the lath is going to be used for !



Look at the last picture above, it kind of explains things.

allen lumley
pollinator
Posts: 4154
Location: Northern New York Zone4-5 the OUTER 'RONDACs percip 36''
59
hugelkultur fungi books wofati solar woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
- O.K., color me Stupid ! I see its presence, but that part was pretty well secured by the previous '' Buck'', and the installation, So was the Metal Lath

a case of Belt AND Suspenders, or does it have another Function ? Like a frame work to stabilize the Structural Cob and Lime Coat shell ?

Remember many other eyes will turn to these pages for future building Ideas ! Big AL

Posts: 151
Location: Hudson Valley, NY
15
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
So I see you guys are using a car to mix cob! Does this help? Do you still have to mix it a little bit after the car runs over it a few times? Would you use this process again?

Len Ovens
pollinator
Posts: 1479
Location: Vancouver Island
49
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

allen lumley wrote:- O.K., color me Stupid ! I see its presence, but that part was pretty well secured by the previous '' Buck'', and the installation, So was the Metal Lath

a case of Belt AND Suspenders, or does it have another Function ? Like a frame work to stabilize the Structural Cob and Lime Coat shell ?



I see at least two functions:

A) It allows extending the straw insulation over an area that bales will not fit. I suppose one could make custom bales for this area, but in this case I think they would be less effective as the ties would render some hollow areas that are filled in this case. I expect this will be continued up the post between door and window.

B) It is used for shaping/radiusing the corner.

C) It will help hold the shell and rendering.

Opps, thats three. I better stop now

Function stacking... note that the straw that fills the metal lath serves more than just as insulation as it supports the lath.

steward
Posts: 3996
Location: Montana
344
fungi books food preservation bee
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

jesse markowitz wrote:So I see you guys are using a car to mix cob! Does this help? Do you still have to mix it a little bit after the car runs over it a few times? Would you use this process again?



the car was just breaking up the manure actually.

Jesse Grimes
Lab Ant
Posts: 274
Location: Orange County, CA
158
hugelkultur forest garden trees tiny house wofati bike bee woodworking
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Looks like Cassie and Len already answered the questions for me. But yes, the lath is there primarily to hold the straw in place around the beam, and will continue up that beam and around all of the round pole. Conveniently, it also adds support to that rounded edge and will provide a nice stick to the cob layer, I hope. Ernie and Erica showed us how to custom cut the bales to fit around the posts and beams, but after spending a lot of time doing a bunch of complex ties and cutting the bales I ended up with some pretty weak shapes and an uneven edge around the beam. I would have likely needed to wrap it in something for support anyway, so the lath just makes the whole process faster and easier. I know a lot of people are following this but I hope they remember that this is my first time working with straw bales, and I am just learning as I go.

Cassie is right about the car being used to break up the cow patties. It kind of just pulverizes most of it, after which we soak it in water over night and then push it through a screen before going into the cob mix. If we don't break it up first we end up with big chunks that don't want to go through the screen. I found that an electric drill with a paint mixer helps to break it up even more before going through the screen.
