This is a badge bit (BB) that is part of the PEP curriculum.  Completing this BB is part of getting the sand badge in Electricity.

In this Badge Bit, you will repair a lamp.



here is a video on how to rewire a AC lamp


Lamps and their wiring vary greatly, just be safe when pursuing this BB

To complete this BB, the minimum requirements are:
  - repair a lamp
  - this is a true repair, not just replacing a light bulb

To show you've completed this Badge Bit, you must provide:
   - a before picture of the damage that is causing the lamp to not function
   - an after picture of the repaired part
   - an after picture of the lamp illuminated
   - OR post a 2 minute video of you fixing the lamp and it working
COMMENTS:

Posts: 38
Location: Hemingford Nebraska
21
3
transportation hugelkultur forest garden earthworks building solar
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
Hello Permies community. This is my first attempt at the PEP program. I have chosen to fix a lamp and here are the steps I've taken. The full in-depth post can be seen at Permarecycling Lamp Repair

The lamp repair I will demonstrate is the license plate light from our truck that’s been out for years.

This style of lamp socket grounds through its mount so my first thought was to check for a proper ground at the socket.  I filed the rust and paint off two areas just under the plate to bare metal to attach my test leads. I checked for continuity between the two bare areas of metal then between the bare areas and the light socket which showed good continuity to the light. Next step was to check for power or a bad filament.

I probed the wire many times but was unable to find any voltage in the circuit. I chased the wiring and came to the end of the wire which was not attached to anything nor was there anything to attach it to. I removed this lamp from the circuit and tested it at the battery. It did not light so I actually had two issues: no power and a bad filament.

Before installing the new lamp housing I filed away the rust inside its mount then I applied some dielectric grease to the ground area to prevent future rust issues. I decided to tie into the clearance light circuit since it was close and worked. I unplugged the center clearance light and applied its 12 volt current to the pigtail on my new license plate light to be sure it worked inside the mounting area.

Now I had to tie into the circuit. I clipped the wire going to the center clearance light socket then twisted the license plate light wire to it. I then applied dielectric grease to the bare copper and a bit of RTV to the wire casings to keep water out of the connection. I much prefer soldering wires in extreme environments and may come back to this in the future but for now I’m using a heat shrink type crimp connector. All the other wires under this area were crimped and they are still working.
[Thumbnail for DSC_0114.JPG]
[Thumbnail for DSC_0117.JPG]
[Thumbnail for DSC_0120.JPG]
[Thumbnail for DSC_0122.JPG]
[Thumbnail for DSC_0125.JPG]
Staff note (Mike Haasl) :

Nice blog Erik, I hereby certify this BB complete!


gardener
Posts: 1561
Location: Washington State
981
6
forest garden trees rabbit earthworks composting toilet fiber arts sheep wood heat woodworking rocket stoves homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
Here is my submission for the Electricity - Sand - Repair a Lamp BB.

I am repairing a 120V lamp.  The part I'm replacing is a 3-wire/2-circuit lamp socket with a turn knob.
There is a second lamp socket connected to it so the one knob controls both lamp sockets similar to a 3-way lamp and light bulb.  Instead of low-med-hi, this socket turns on one (pointing up), or the other (pointing down), or both.

Reason for repair: The switch/turn-knob is getting loose and no longer controls the four options distinctly, sometimes turning on both lights when only one should be on.

To document the completion of the BB, I have provided the following:
  - a before picture of the damage that is causing the lamp to not function
  - an after picture of the repaired part
  - an after picture of the lamp illuminated

Side note: this turned into an (almost) all day project with a trip to a specialty hardware store as this part is not something carried at a big box or local hardware store.  Thanks to McLendons Hardware for carrying the part!
The lamp has an up-light and a down-light
The lamp has an up-light and a down-light
failing switch - view 1
failing switch - view 1
failing switch - view 2
failing switch - view 2
disassembled
disassembled
the part - time to go shopping
the part - time to go shopping
taking one wire off at a time and attaching it to new socket
taking one wire off at a time and attaching it to new socket
reassembly begins
reassembly begins
reattaching the down-lamp socket (not replaced)
reattaching the down-lamp socket (not replaced)
reassembly (after testing the repair)
reassembly (after testing the repair)
Fixed
Fixed
Staff note (gir bot) :

Mike Haasl approved this submission.


Posts: 114
Location: VIC, Australia
78
kids gear cooking building solar homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
Got an emergency call that the street lights in the parking lot of a set of flats was not working the previous night. Had to take apart most of these bollard lights to find out the problem was burnt out cables from poor installation in this particular lamp... it wouldn't have cause problems until the insulation allowed for an easy path for the electricity to flow, starts small and snowballs, especially out in the weather!

Reterminating and proper placement of the cables was the fix in this situation and got them all back in glowing order!
Lamp not working
Lamp not working
Woah
Woah
Fixed
Fixed
Repaired and glowing
Repaired and glowing
The in progress with a few tools used
The in progress with a few tools used
Staff note (gir bot) :

Mike Barkley approved this submission.

Staff note (Mike Haasl) :

"Woah" is exactly what I said when I first saw that picture too


gardener
Posts: 578
Location: Pembrokeshire, UK
434
2
dog forest garden gear fungi foraging trees building medical herbs woodworking homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
Moved from my Oddball submission after Mike pointed out that there is a dedicated BB for this.

We bought an old standard/floor lamp from a sale recently. The lamp was turned from a few pieces of oak and is probably close to 80 years old. Sadly, the wiring was rather unsafe as there was no earth on the brass lampholder (the bit which holds the bulb) which was also the on-off switch. This meant that any short would give you a nasty shock if you tried to switch the lamp. The existing wiring was an ugly, two-core twisted pair with brittle insulation.

I stripped out the old wiring and have recycled the copper. I then removed the lampholder and replaced it with a modern equivalent, one that includes an earth terminal. I replaced the wiring with some antique-style three-core which is much prettier (I think) and safer, plus it fits the aesthetic of the lamp. I re-used the existing plug as it felt better quality than a modern one I had lying around. Everything was secured using insulating heat-shrink tubing and tested with a meter before plugging it in.

Finally, I added a foot switch. This is less in-keeping with the age of the lamp but it is very convenient.

Whilst I was doing this, my partner had stripped off the old lampshade (which was shedding plasticky material and was a disgusting nicotine-yellow) and begun to sew a replacement using some unbleached cotton we had lying around. This job took *forever* and I'm thankful that she has the skill and patience to do it.

I've attached an after shot showing the completed shade and re-wired lamp.

All in all, the rewiring took about 45 minutes. It's not the first one that I've done - but standard lamps are fiddlier than table lamps! The only real snag is that I forgot to replace the fuse in the plug. Do'h!

Video of testing, before the shade was installed.

[Thumbnail for old-unsafe-wire.jpg]
[Thumbnail for unearthed-lampholder.jpg]
[Thumbnail for wiring.jpg]
[Thumbnail for earth-installed.jpg]
[Thumbnail for live-neutral-installed.jpg]
[Thumbnail for assembling-lampholder.jpg]
[Thumbnail for new-earthed-lampholder-base.jpg]
[Thumbnail for new-three-core-wiring.jpg]
[Thumbnail for wiring-plug.jpg]
[Thumbnail for assembled.jpg]
[Thumbnail for lights-on.jpg]
[Thumbnail for final.jpg]
Staff note (gir bot) :

Mike Barkley approved this submission.


gardener
Posts: 1308
737
8
hugelkultur monies foraging trees composting toilet cooking bike solar wood heat rocket stoves ungarbage
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
My primary lamp by my desk quit working the other day and so I thought, "Hey here's an opportunity to do a BB!"  What went wrong is the little knob that acts as the switch to turn the light on and off just started free spinning instead of clicking it on and off.  So I biked to the hardware store and got a new socket to install.  I almost got one with a different style switch on it, then realized that due to this particular lamp's design I in fact needed one with the turning knob.  I like the ones with the little rod you push through better, but that wouldn't work since one needs to be able to access that type from both sides!  Glad I thought about that before buying it.

Here are the photos' though there really is nothing visible that shows the old socket doesn't work.  I included an image with the new and old socket in the shot to support the claim that I really fixed this and didn't just shoot some images of a perfectly fine working lamp.

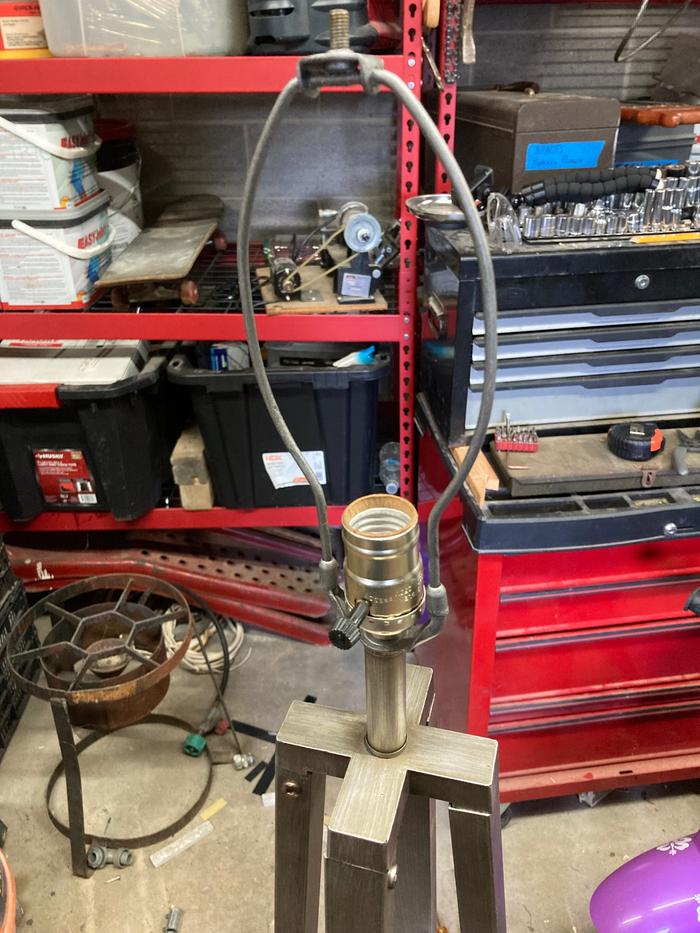

This is an overall shot of the lamp with the new socket.
This is an overall shot of the lamp with the new socket.

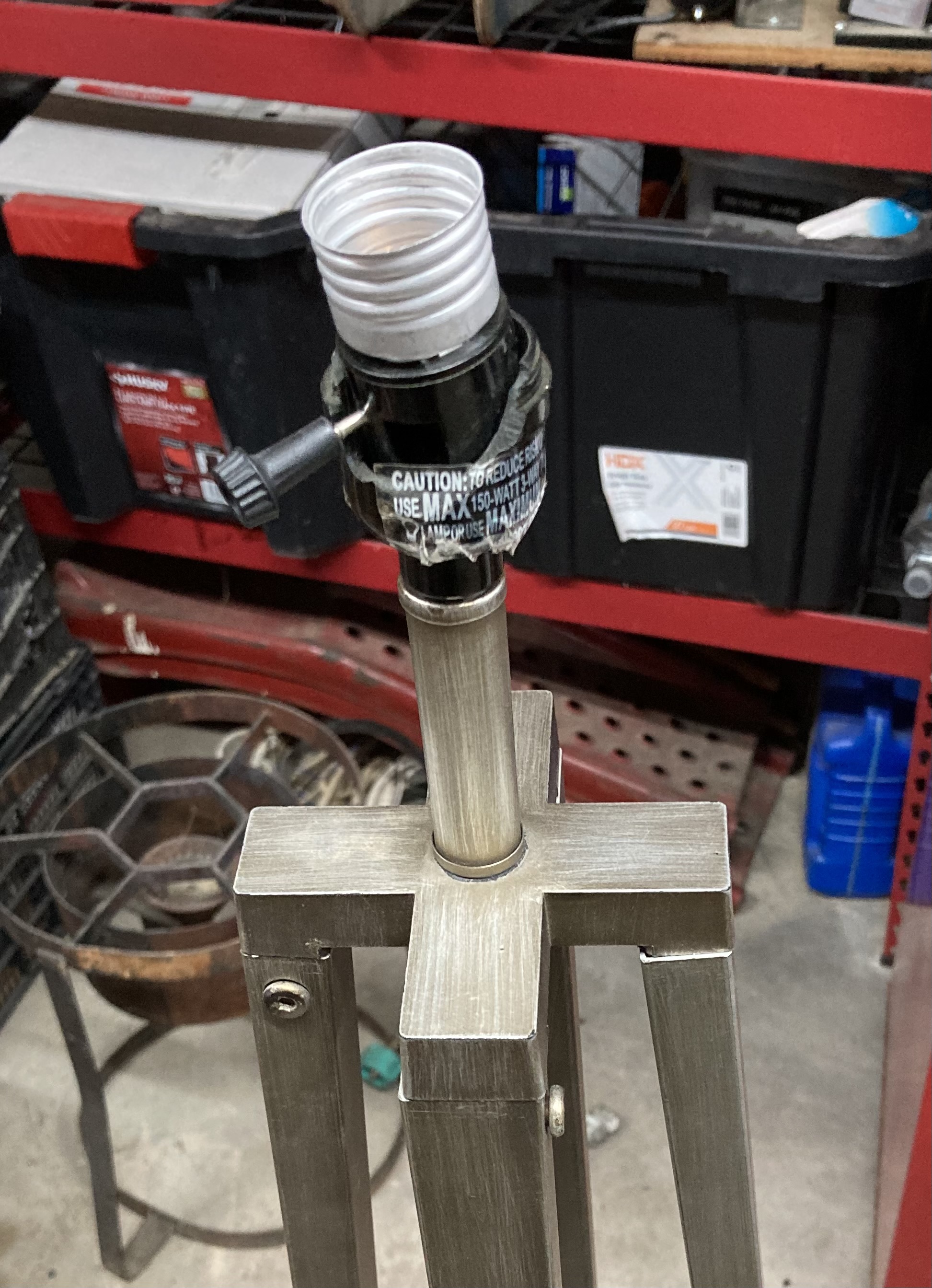

Image showing the new socket and the old defective one with the broken switch.
Image showing the new socket and the old defective one with the broken switch.
Partway though wiring up the new socket.
Partway though wiring up the new socket.
An after picture with the repaired socket and working lamp.
An after picture with the repaired socket and working lamp.
Staff note (gir bot) :

Opalyn Rose approved this submission.
Note: I certify this badge bit complete.


Posts: 19
16
2
cattle homeschooling kids books chicken pig bee writing homestead
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
The fluorescent light in our kitchen ceiling has been out of order for awhile.  When you try to turn it on, it flickers. Here's a video of the problem.
https://youtube.com/shorts/SYcFpfI3yyg]Flickering[/youtube]   Florescent  I couldn't figure out how to embed the video.  What am I missing?  [youtube]https://youtube.com/shorts/SYcFpfI3yyg[/youtube]

I was pretty sure the ballast was needing replaced, but my wife suggested that I make sure, rather than just replacing it.  I have never tested a ballast, so I looked it up.  You use a multi-tester and check for continuity between the white input wire and each of the output wires.

The wires red and blue wires looked good. But the yellow wires showed no continuity.  Sorry for the fuzzy picture.

I ordered the ballast from Lowes along with some wire nuts and electrical tape.
After I first installed the new ballast, only one lamp was lighting.  At first I was worried that I had  gotten a bad ballast, especially when continuity testing fail on all the output wires on the new ballast.  But I swapped which of the two red wires were feeding which side of the lamp and got it fully functional.


The ballast did not look good
The ballast did not look good
Red output wire has continuity
Red output wire has continuity
Blue output wire has continuity
Blue output wire has continuity
Yellow wire fails continuity check
Yellow wire fails continuity check
New ballast installed
New ballast installed
The florescent light works!
The florescent light works!
Staff note (gir bot) :

David Huang approved this submission.
Note: I hearby certify this complete.
