Repair a Hose - PEP BB plumbing.sand.tiny.repairhose

BB plumbing and hot water - sand badge
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
This is a badge bit (BB) that is part of the PEP curriculum.  Completing this BB is part of getting the sand badge in Plumbing.

In this Badge Bit, you will repair a hose.  (Note that this BB is part of a 6-part choose your own adventure list BB called the Tiny List. You must complete six Badge Bits in the Tiny List.)

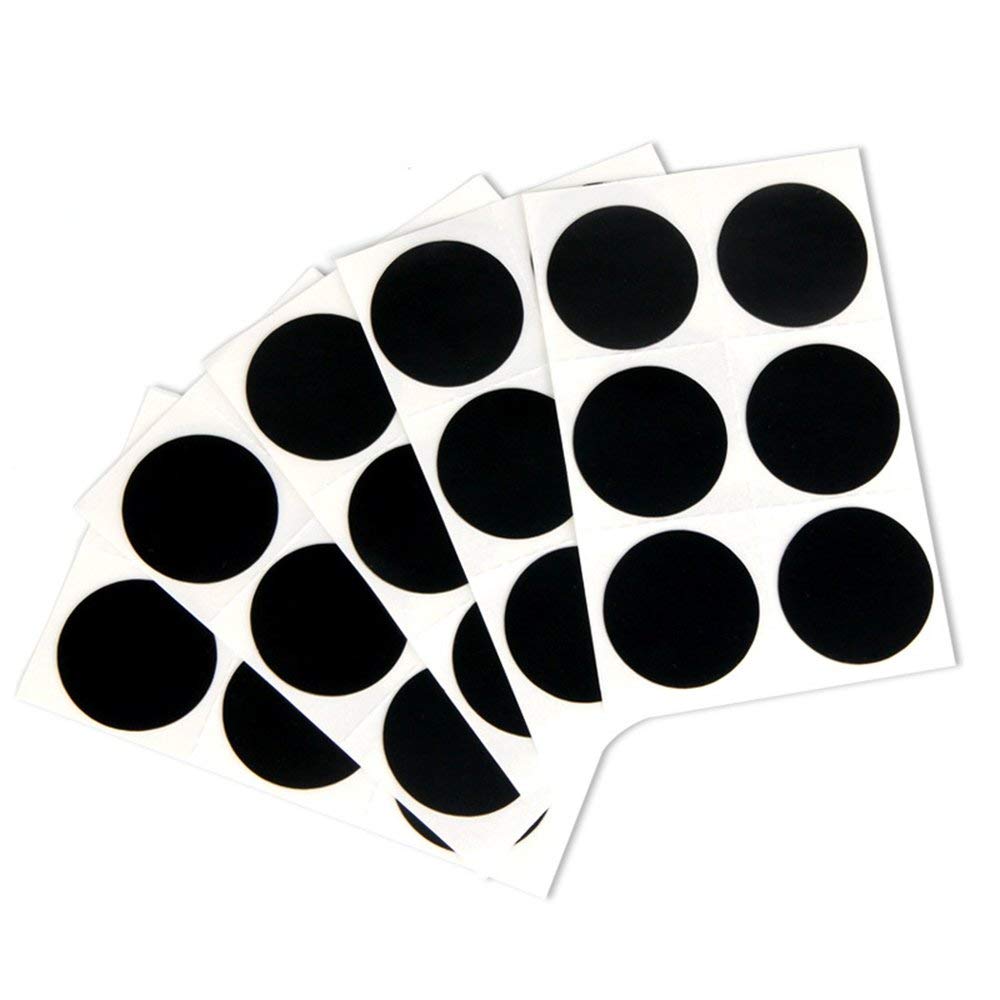

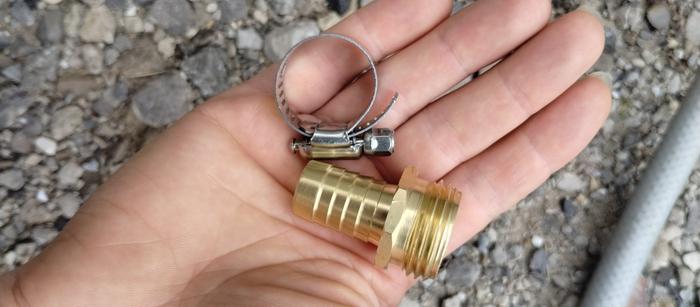

(source: Amazon.com)

Some related articles
  - How to Fix a Garden Hose
  - Step-by-Step Garden Hose Repair
  - How to Repair a Garden Hose
  - How to Repair a Pinhole in a Garden Hose









To complete this BB, the minimum requirements are:
 - repair a hose

To show you've completed this Badge Bit, you must provide:
   - a before picture of the broken hose - showing the problem
   - an in progress shot of you repairing the hose
   - an after picture of the newly repaired hose
   - a description of the repair and products used
   - OR a 2-minute video of you doing this
COMMENTS:

gardener
Posts: 1253
Location: Washington State
713
2
forest garden trees rabbit earthworks composting toilet fiber arts sheep wood heat woodworking rocket stoves homestead
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved BB submission
Here is my submission for the Plumbing - Sand for Straw Points - Tiny List - Repair a Hose BB.

One of our outdoor hoses leaked at both ends where the hose material connects to the factory-installed fittings
Step 1: check the washer (it was brittle so I replaced it) - the hose still leaks at/in the factory-installed fitting
Step 2: cut off fitting and insert hose barb with male threads
Step 3: attach and tighten hose clamp
Step 4: test - no leaks in hose/fitting connection - the watering wand has a leak in its mechanism so a new one went on the shopping list

The replacement/repair part is a Nylon/ABS Threaded Male Hose Mender Clamp like this one.

To document the completion of the BB, I have provided the following:
   - a before picture of the broken hose - showing the problem
   - an in-progress shot of you repairing the hose
   - an after picture of the newly repaired hose
   - a description of the repair and products used
hose pointing down showing water leaking between brass fitting and yellow hose connector system part
hose pointing down showing water leaking between brass fitting and yellow hose connector system part
hose barb partially installed and showing hose clamp
hose barb partially installed and showing hose clamp
hose clamp tightened
hose clamp tightened
watering the potatoes with no leaks at the repair which is between my hand and my body-see green hose clamp)
watering the potatoes with no leaks at the repair which is between my hand and my body - see green hose clamp
Staff note (gir bot) :

Mike Haasl approved this submission.


Posts: 35
Location: Virginia, USA
26
homeschooling monies forest garden foraging books woodworking
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved BB submission
My brother in law actually found the leak while I was on vacation a few weeks ago.  I must have left the hose on and had a burst in the heat.

I went to Lowes and grabbed a male repair end and put it on.
This is the break in the hose, it's been leaking for a few weeks.
This is the break in the hose, it's been leaking for a few weeks.
I cut off the bad end.
I cut off the bad end.
Pretty clean cut.
Pretty clean cut.
Then I pushed the new ribbed insert into the hose
Then I pushed the new ribbed insert into the hose
Fully inserted end
Fully inserted end
Then I clamped down the hose onto the end.
Then I clamped down the hose onto the end.
Here we have a leak free shower.
Here we have a leak free shower.
Staff note (gir bot) :

Opalyn Rose approved this submission.
Note: I hereby certify this badge bit complete.


pollinator
Posts: 192
Location: Powell River, BC
114
2
monies forest garden urban food preservation fiber arts bee
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved BB submission
Hose blew out at the end. Fixed with plastic compression fitting from the lumber store. The metal fittings I can find here are useless, too shallow in the threads, and fail quickly.
Blown hose end
Blown hose end
Parts, hose end neatly trimmed
Parts, hose end neatly trimmed
All screwed together
All screwed together
Staff note (gir bot) :

Opalyn Rose approved this submission.
Note: I hereby certify this badge bit complete.


Posts: 22
Location: USA
24
forest garden
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved BB submission
Hello!

I repaired a hose. We were repurposing old soaker hoses, and I needed to replace the female end where it connects to a 'Y'. The soaker hose was a 1/2 inch hose so I needed to purchase the appropriately sized female hose end.
Broken hose spraying water.
Broken hose spraying water.
Cutting broken hose.
Cutting broken hose.
Assembling hose end.
Assembling hose end.
Almost assembled.
Almost assembled.
Fixed hose.
Fixed hose.
Staff note (gir bot) :

Opalyn Rose approved this submission.
Note: I hereby certify this badge bit complete.


Posts: 27
Location: Union, OR
13
3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved BB submission
Noticed a wet spot on the ground near the hose connection, picked up the hose and it turned into a sprinkler.

Repaired the hose from the local hardware store, with a quick bicycle trip ~ 5 mins.



The leaking hose end
The leaking hose end
In progress repair, hose on the new end piece fitting
In progress repair, hose on the new end piece fitting
Bracket installed and hose filled with pressurized water, no leaks now
Bracket installed and hose filled with pressurized water, no leaks now
Staff note (gir bot) :

Someone flagged this submission as an edge case BB.
BBV price: 0
Note: Can you explain more about where it was leaking and how you fixed it?  The pictures are a bit hard to decipher...

Staff note (gir bot) :

Someone approved this submission.
Note: Approved per additional photos in the post below


Daniel Brieck
Posts: 27
Location: Union, OR
13
3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi take a look at the close ups, the hose had a slow leak and cracked more when I picked up the hose, see the attached pictures. Did not get leak pictures since it was a sprinkler and was discovered at bedtime.
Mind the Gap, connection between hose and connect cracked
Mind the Gap, connection between hose and connect cracked
Mind the Gap 2
Mind the Gap 2

pollinator
Posts: 302
Location: Zone 7a
196
2
kids rabbit chicken food preservation fiber arts
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved BB submission
I needed to repair my hose.

First I cut the bad section out

I used bronze connectors to splice the two sides of the hose together.

Completed!
Staff note (gir bot) :

Mike Haasl approved this submission.


pollinator
Posts: 84
Location: San Diego, California | Zone 10a Drylands (11" precip.)
58
cat urban chicken food preservation cooking bike
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved BB submission
I'm so glad I found this BB! I thought I'd have to upcycle or get rid of a leaky garden hose. Thanks, permies!

Finally got off my duff to do it. Here are the results:
Leaky hose end! No bueno.
Leaky hose end! No bueno.
On the operating table... anesthetized and ready for surgery
On the operating table... anesthetized and ready for surgery
Cutting off leaky end
Cutting off leaky end
Inserted clamp and new fitting. Was kind of a bear to get in there!
Inserted clamp and new fitting. Was kind of a bear to get in there!
Clamp tightened... ready for hosing!
Clamp tightened... ready for hosing!
Water tight! (that's me spraying the other end.)
Water tight! (that's me spraying the other end.)
Staff note (gir bot) :

Mike Haasl approved this submission.
