This is a badge bit (BB) that is part of the PEP curriculum.  Completing this BB is part of getting the sand badge in Metal Working.

After a while, tools that you whack with a hammer can get mushroomed.  Did you know that innocent looking mushroom could be dangerous?  Let's fix it!

Here's a pretty cool guy fixing a number of tools with a number of methods:


To complete this BB, the minimum requirements is to fix a mushroomed striking surface on tools like:
  - Chisel
  - Splitting wedge
  - Hammer
  - Punch

To document your completion of the BB, provide the photos or video (<2 min) of the following:
  - The mushroomed head
  - The repair in progress
  - The fixed tool
  - A description of how you repaired it
COMMENTS:

Posts: 33
Location: Hemingford Nebraska
21
3
transportation hugelkultur forest garden earthworks building solar
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
This post is a quick how to on sharpening and fixing mushroomed chisels to obtain 1/2 point for "Dress up a mushroomed chisel or splitting wedge - ½ point"

I selected a chisel and the appropriate safety gear. I'll be using a pedestal grinder for this process.



The chisel, safety glasses, and earmuffs to complete this project.

First I fixed the butt end. A mushroomed chisel can wreak havoc on gloves not to mention bare skin.



Then I flattened the tip of the chisel. It had many grooves from chiseling into bolts.



I alternated between grinding the cutting angle and dressing the sides as evidenced in the next two photos.





Complete chisel. This appears to be an old air hammer chisel someone's been using by hand, but at least now it's a bit more prepared for work.

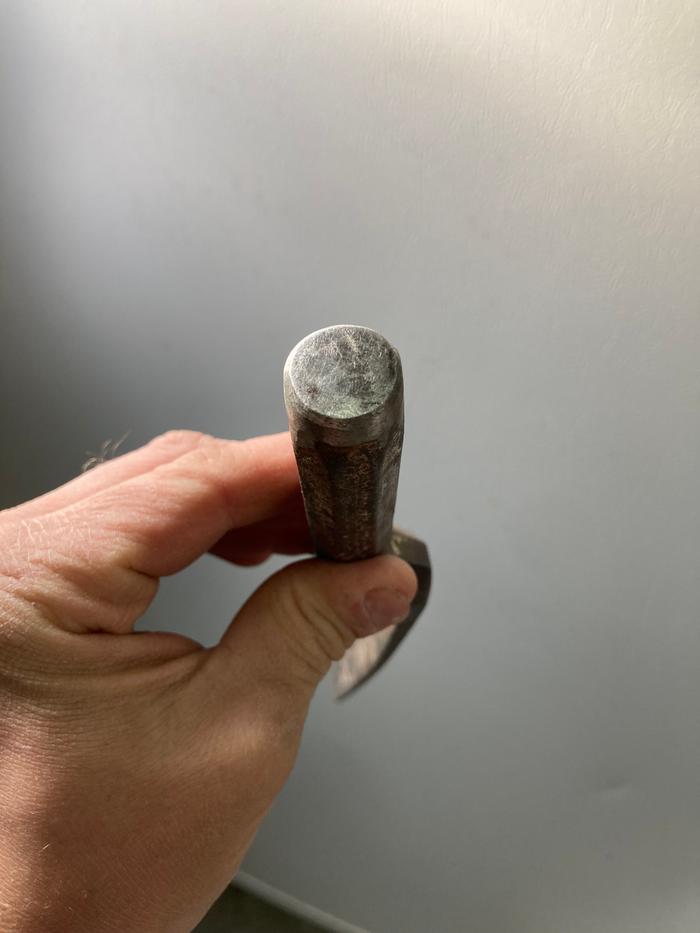

Finished chisel ready for use. The full post can be seen on our blog. Permarecycling
Staff note (Mike Haasl) :

I certify this BB complete!

Staff note (Mike Haasl) :

Erik applied for the Metalworking badge which has now been granted!


Erik Pehoviack
Posts: 33
Location: Hemingford Nebraska
21
3
transportation hugelkultur forest garden earthworks building solar
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
That works great, wasn't quite sure where to post. Thanks a bunch!

steward
Posts: 14632
Location: Northern WI (zone 4)
4330
6
hunting trees books food preservation solar woodworking
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
My pleasure!  Nothing like having a BB done to get me going on typing up the BB.  Some day we'll have pages made for all the BBs so folks can get going on the Straw level items as well...

pollinator
Posts: 378
Location: Zone 8b Portland
64
3
forest garden fungi food preservation
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
I cleaned up my splitting wedge today. I didn’t realize this was a potentially dangerous situation until I read this post. It wasn’t too badly mushroomed but I documented the cleanup anyways :-)

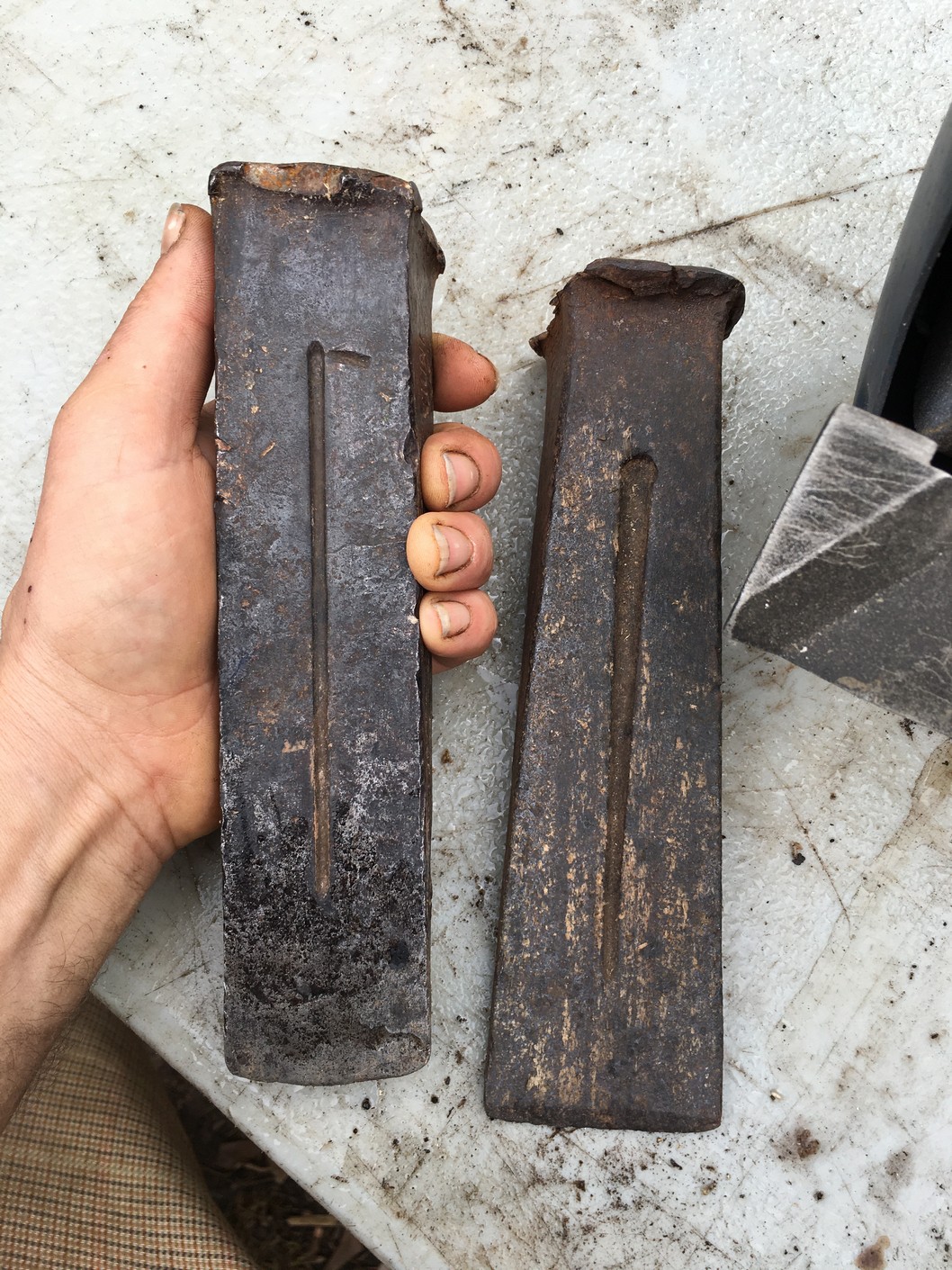

My splitting wedge
My splitting wedge
Angle grinder to clean it up
Angle grinder to clean it up
[Thumbnail for FD36B908-C56E-483A-824D-21E35638D257.jpeg]
[Thumbnail for BF56D0E3-A069-4436-AB8C-487A969F4F64.jpeg]
[Thumbnail for C20ADD77-EA95-44A6-A05B-CEBA764505E5.jpeg]
[Thumbnail for CC2AFE93-F302-469C-89E7-238EDF3EEBC8.jpeg]
Staff note (Mike Haasl) :

I certify this BB complete!  Along with your new Metalworking Air badge


Posts: 19
Location: Joint Base MDL, New Jersey
14
forest garden gear tiny house building woodworking ungarbage
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
I noticed my chisel scraper head was starting to mushroom.

To fix this issue, I first locked the chisel in a vice, then used a pneumatic angle grinder to quickly remove the deformities.

To finish up i used a file to remove the agressive tool marks left by the grinder.
[Thumbnail for 20200807_152855.jpg]
[Thumbnail for 20200807_152934.jpg]
[Thumbnail for 20200807_153056.jpg]
Staff note (Mike Barkley) :

I certify this BB is complete. You earned what we call an air badge for metalworking too. Welcome to permies!


gardener
Posts: 814
Location: Durham, NC
334
hugelkultur gear urban cooking building writing woodworking
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
I deflated the mushroom on my splitting wedge.  I vinegared it, steel-wooled it, then used the bench grinder to sharpen it and deflate the mushroom.  Then I oiled it with linseed oil.

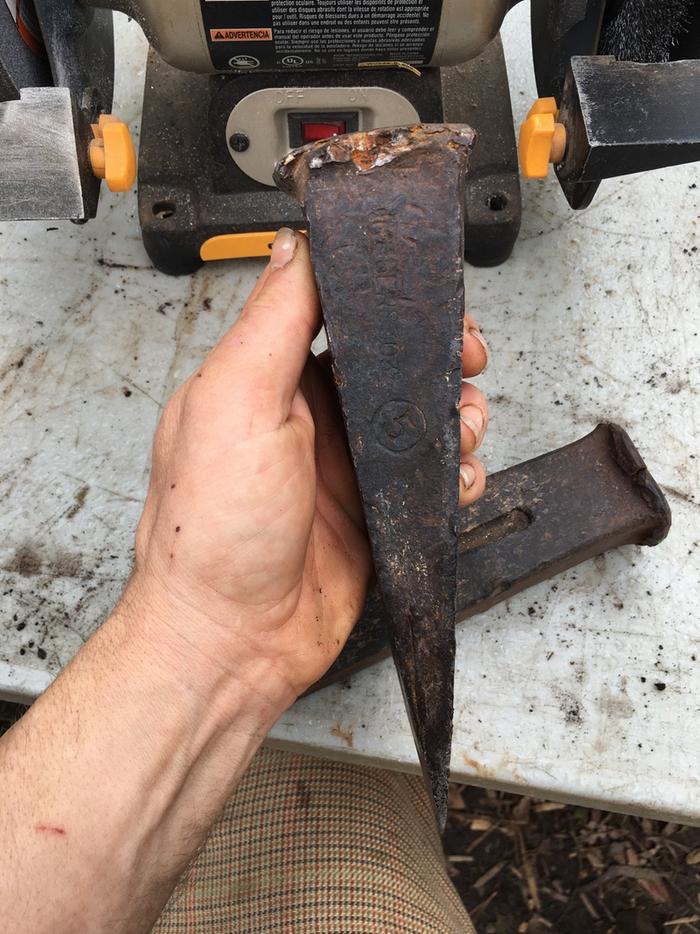

Here is the mushroom head.



I cleaned it up some:



Used a bench grinder on it:



Here is the de-mushroomed head:

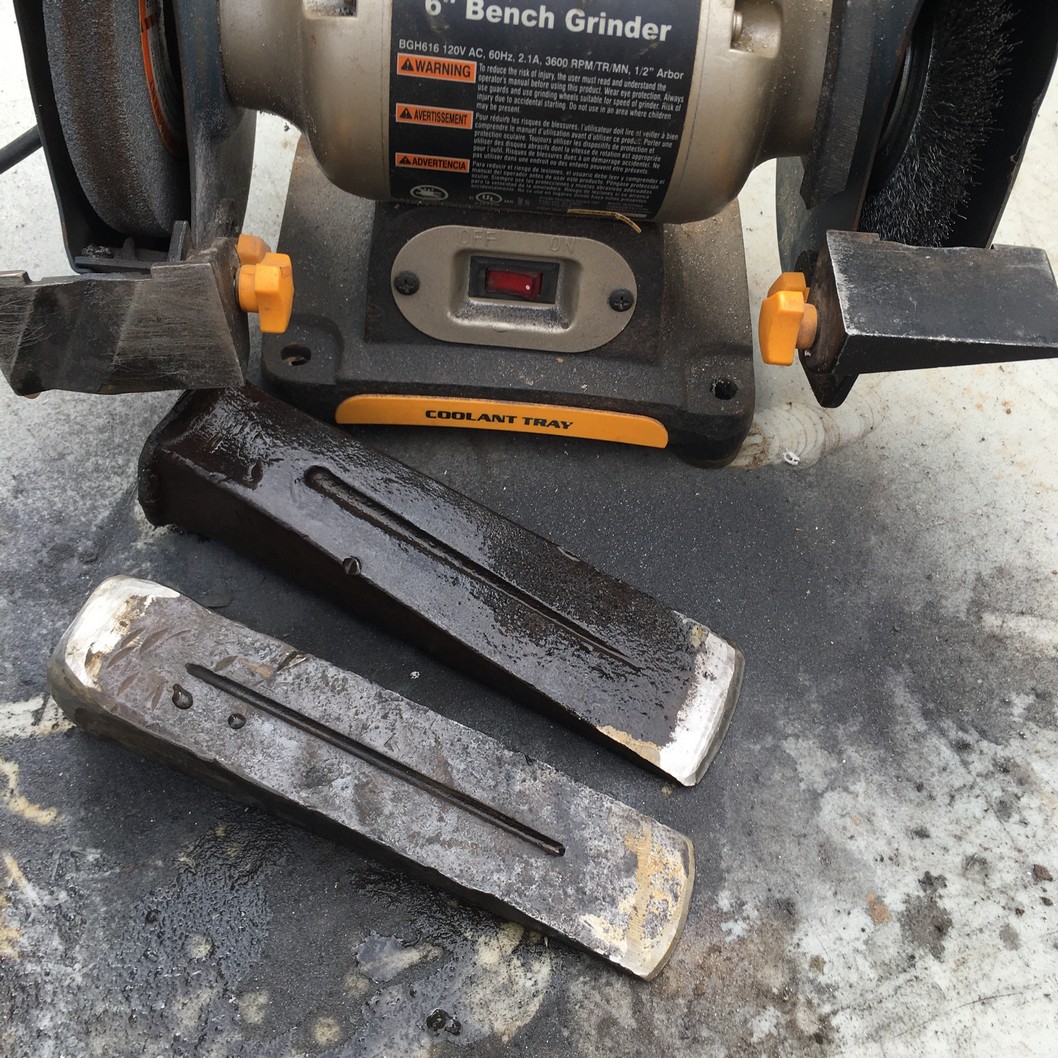

It wasn't specified in this BB but I also sharpened the wedge.  Here is the before:

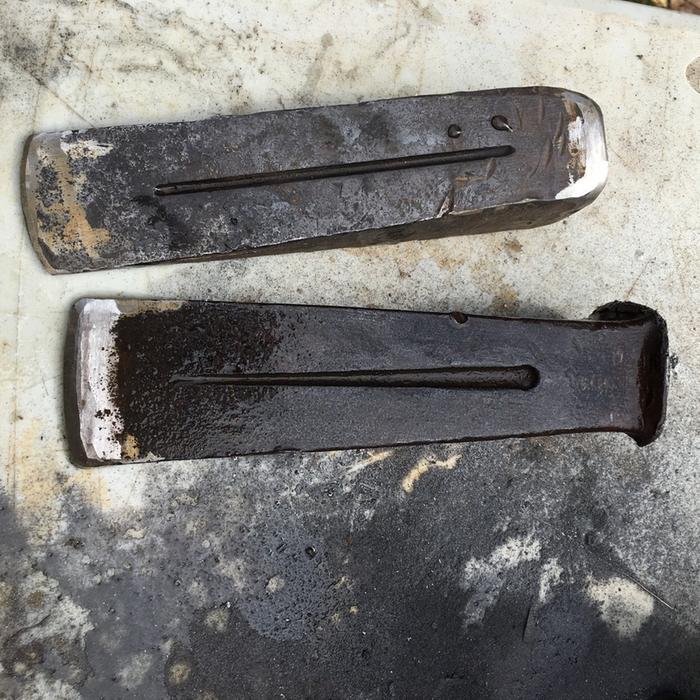

and after:



Staff note (Mike Haasl) :

I certify this BB complete!


gardener
Posts: 1284
712
7
hugelkultur monies foraging trees composting toilet cooking bike solar wood heat rocket stoves ungarbage
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
I decided it was about time I fixed up some of the chasing tools I use the most and thus mushroom the heads over on the most.  Since it's also a metalworking BB let me apply for this one too.  :)  Oh, I guess for this BB I really only have to do one, but I figured since my tools are small I'll do several.  It's a quick job.  I'm not trying to apply for the BB multiple times here just to be clear.

This is a shot of the tools I'll be fixing up showing their mushroomed heads.
This is a shot of the tools I'll be fixing up showing their mushroomed heads.
I'll be using my big belt sander to do the work.
I'll be using my big belt sander to do the work.
Here is a photo of the tools after grinding off the mushroomed parts and fixing up the ends.
Here is a photo of the tools after grinding off the mushroomed parts and fixing up the ends.
Staff note (jordan barton) :

I hereby certify this badge bit complete!


pollinator
Posts: 267
Location: Currently floating in the Atlantic.
120
5
cat purity gear tiny house books bike fiber arts bee solar woodworking ungarbage
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
So here's my bolster chisel.

I started by using the angle ginder to slice of the curled sections but when I saw the holes I decided to cut about 10mm off the end.

Bench grinder and disc sander to finish.
Nicely Mushroomed Head
Nicely Mushroomed Head
Half cut off
Half cut off
All cut off
All cut off
Nasty looking holes
Nasty looking holes
Ready for use
Ready for use
Staff note (gir bot) :

Mike Haasl approved this submission.


gardener
Posts: 1447
Location: Washington State
898
5
forest garden trees rabbit earthworks composting toilet fiber arts sheep wood heat woodworking rocket stoves homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
Here is my submission for the Metalworking - Sand - Dress a Mushroomed Chisel BB.

I sharpened and dressed two cold chisels.  Both were dull and rusty.  One had a slightly mushroomed striking surface (and is only shown in the first photo) and the second had a significantly mushroomed striking surface.  I used an angle grinder with a wire wheel to remove the rust and a bench grinder to reshape the striking end and to sharpen them.  I finished with a quick kiss on each edge on the large stationary belt sander then a light coat of linseed oil as they are stored outside in an area protected from rain but not humidity.

To document the completion of the BB, I have provided the following:
 - A picture of the mushroomed head
 - The tool you're fixing it with
 - The fixed tool
two rusty, dull, mushroomed chisels
two rusty, dull, mushroomed chisels
close up of significantly mushroomed chisel
close up of significantly mushroomed chisel
using bench grinder to remove mushroom
using bench grinder to remove mushroom
finishing with stationary belt sander
finishing with stationary belt sander
all cleaned up and oiled
all cleaned up and oiled
Staff note (gir bot) :

Mike Haasl approved this submission.


gardener
Posts: 323
Location: NW Washington - Zone 8a : 10 to 15 (F)
254
2
cattle goat foraging trees earthworks cooking building solar sheep wood heat
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
I dressed up the mushroomed heads of two chisels using an angle grinder.
Mushroomed heads.
Mushroomed heads.
Tools used.
Tools used.
Fixed heads.
Fixed heads.
Staff note (gir bot) :

Mike Haasl approved this submission.


gardener
Posts: 515
Location: Pembrokeshire, UK
385
2
dog forest garden gear fungi foraging trees building medical herbs woodworking homestead
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
I took some time this afternoon to dress a mushroomed masonry chisel. This is something I do quite often to axes (which previous owners have treated badly!) but I never think to take photographs.
The chisel, mushroomy!
The chisel, mushroomy!
I used a file
I used a file
Held the tool in my trust Record vise
Held the tool in my trust Record vise
Done!
Done!
I put a slight bevel on the edges and top
I put a slight bevel on the edges and top
Staff note (gir bot) :

Mike Haasl approved this submission.


Posts: 114
Location: VIC, Australia
74
kids gear cooking building solar homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
This gets the occasional whacking when there's bricks that need removing so it gets mushroomed pretty quick

Used a hand Grinder and cutting disk as well as a sanding disk to get the tip back only a little since it's more for brute strength than finesse.
Mushroom
Mushroom
Chisel in question
Chisel in question
Lights, camera, action
Lights, camera, action
Done
Done
Staff note (gir bot) :

Mike Haasl approved this submission.


pollinator
Posts: 272
Location: Val d'Espoir, Quebec, Canada, zone3a at the bottom of a valley
158
2
forest garden rabbit books chicken composting toilet food preservation bike building wood heat homestead composting
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
Found an old mushroomed chisel who need love. I used a power tool with metal brush and disk to clean the rust and dress up the head. Next job, sharpening.

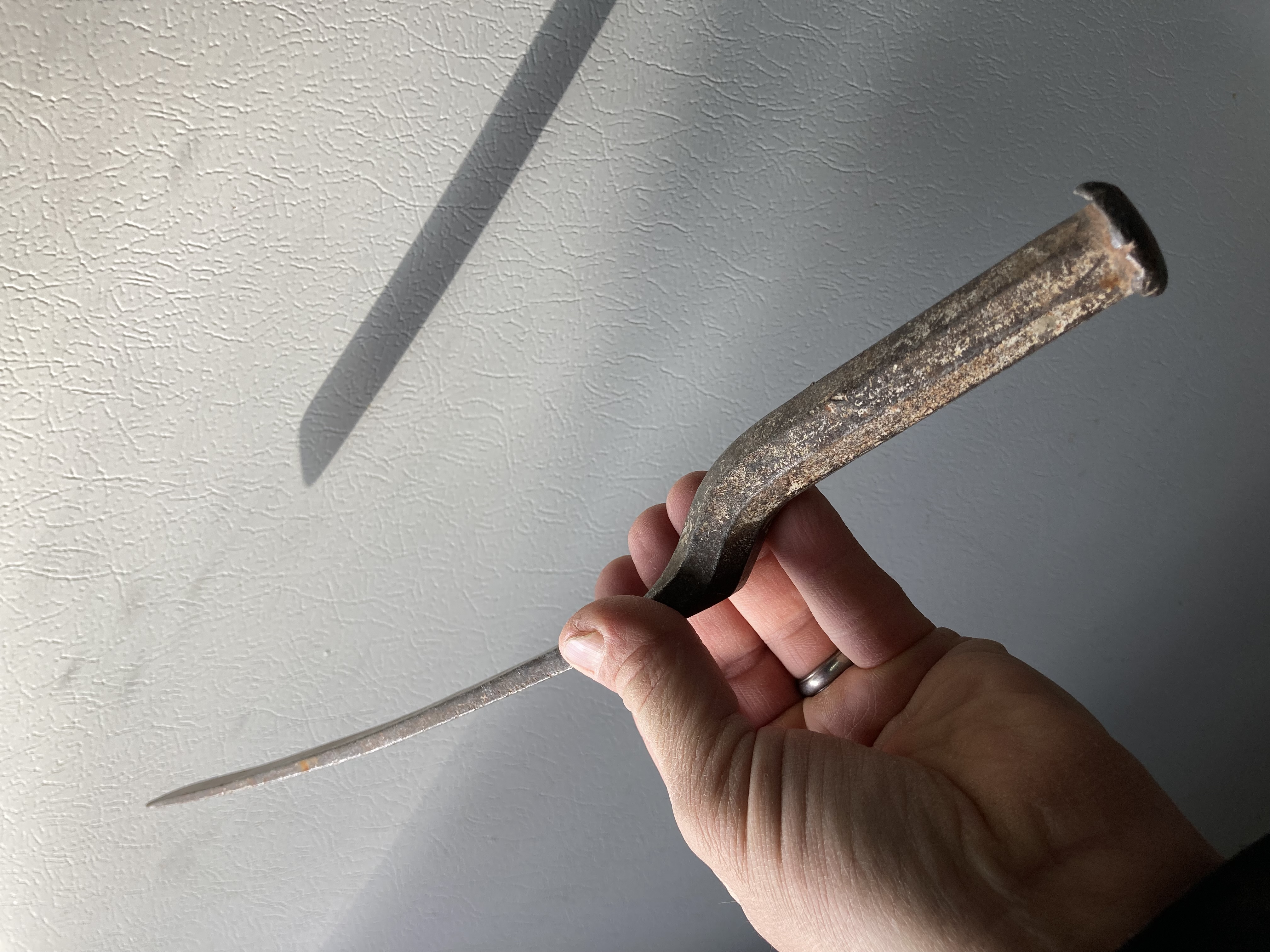

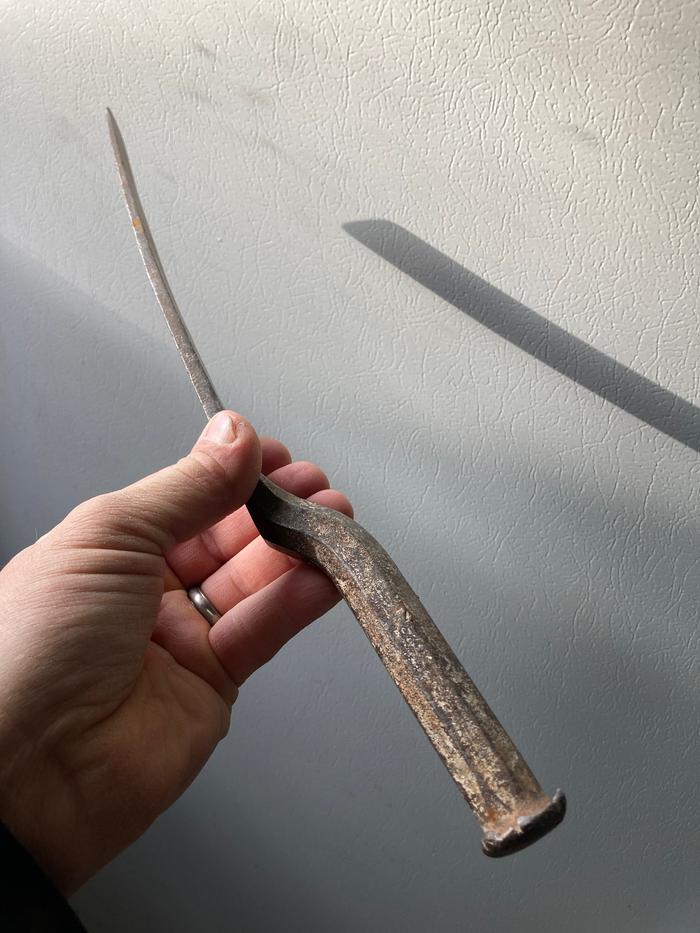

The mushroomed head
The mushroomed head

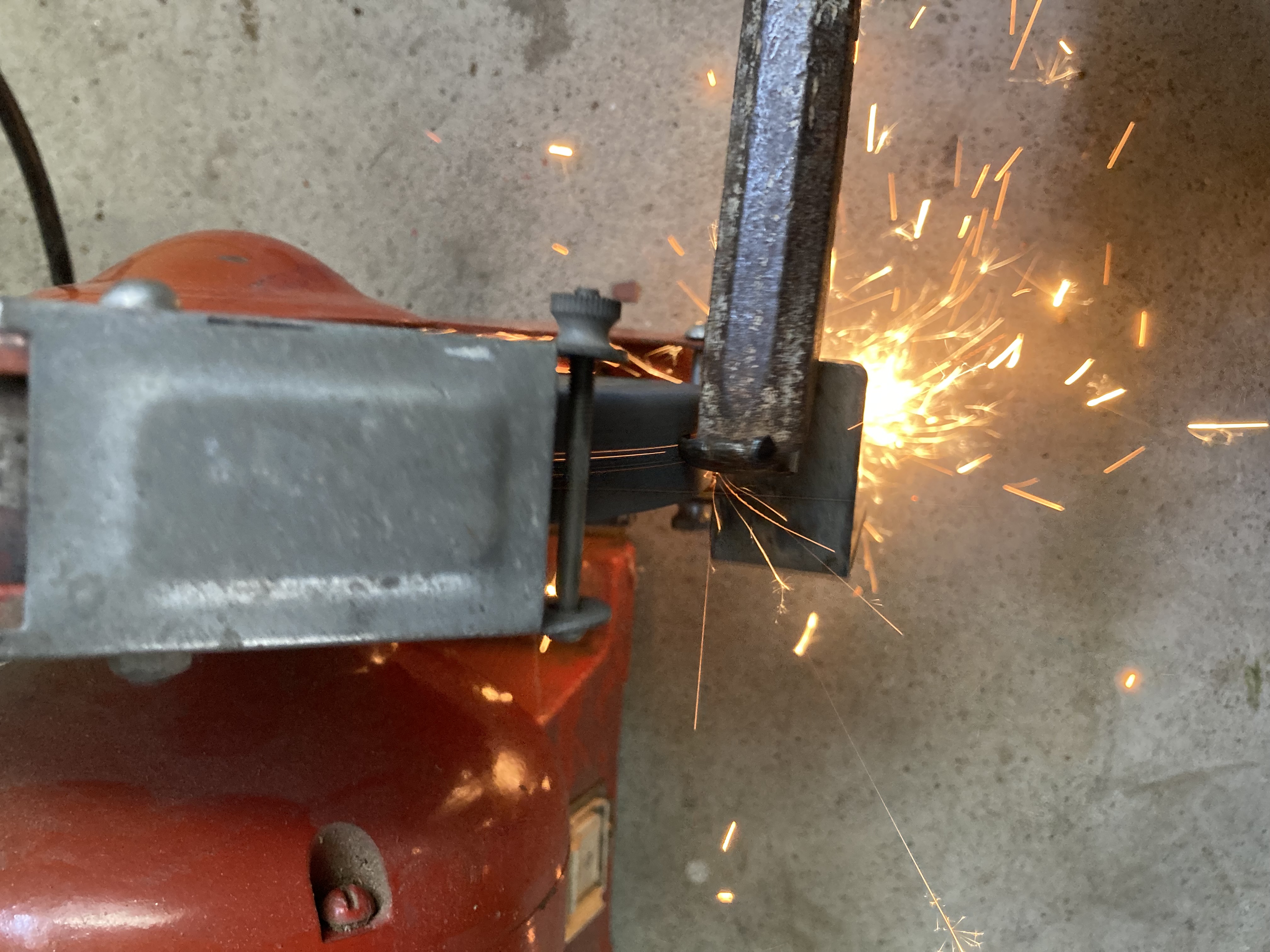

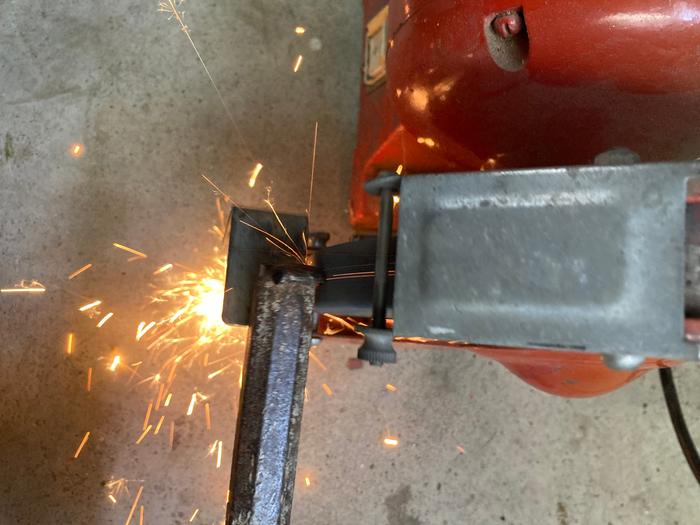

The repair in progress
The repair in progress

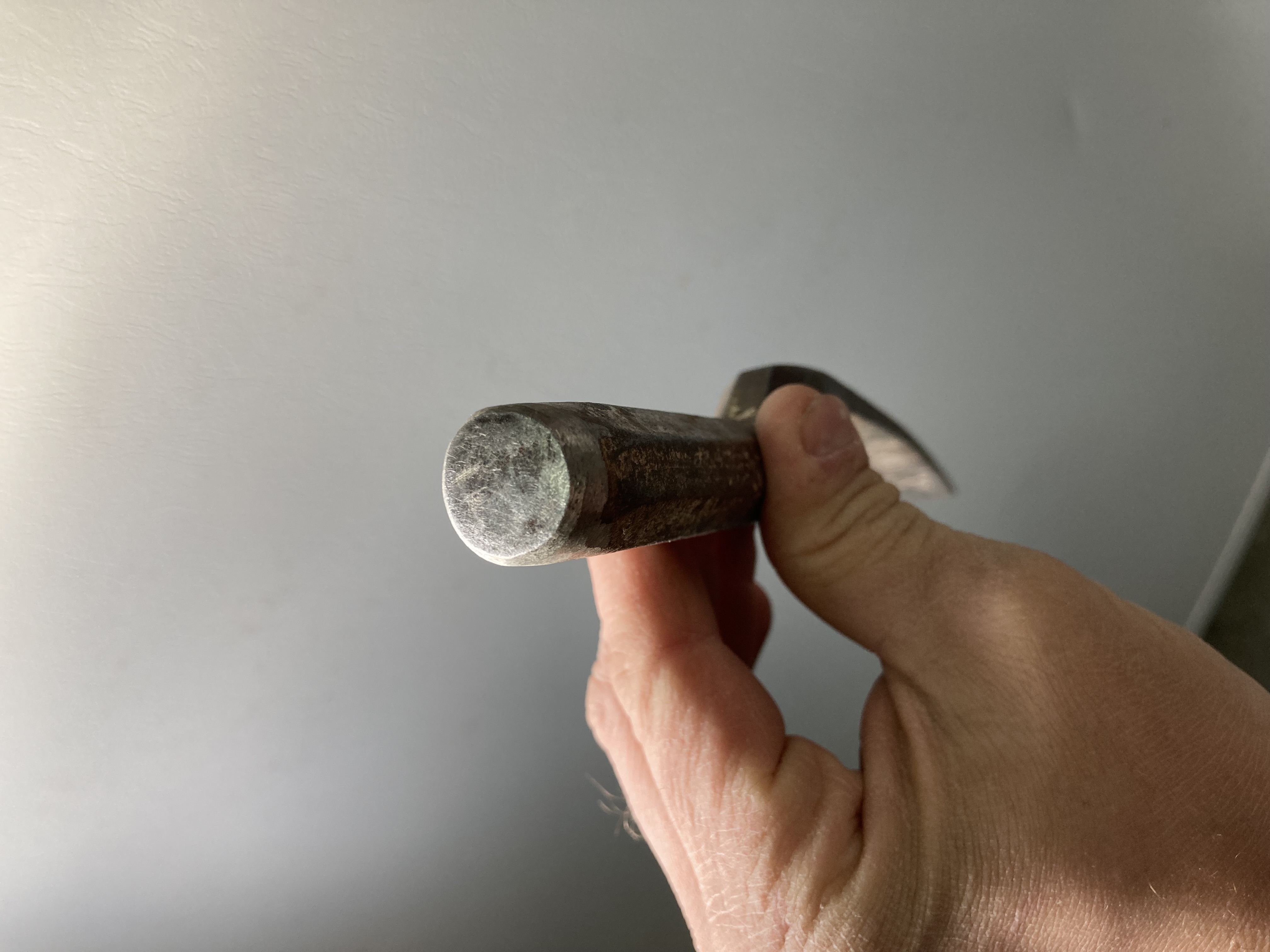

The fixed tool
The fixed tool
Staff note (gir bot) :

Mike Haasl approved this submission.


Posts: 72
25
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved submission
Here is my submission for this badge bit. I did it at SKIP camp last summer, lots of mushroomed chisels needing attention. I used an angle grinder to do the job. I'm attaching pictures of:

 - The mushroomed head
 - The angle grinder I used
 - The partially reshaped head
 - The fixed chisel
[Thumbnail for mushroomed-chisel.jpg]
[Thumbnail for equipment-I-used.jpg]
[Thumbnail for partially-complete-repair.jpg]
[Thumbnail for finished.jpg]
Staff note (gir bot) :

Ash Jackson approved this submission.
