Opalyn Rose that looks amazing!  So beautiful and what a great display of integrating different skills to make a finished item.

It looks like this has quite a few elements that are already textile badges.

making rope
Making a basket

We may need to adjust the description on the basket BB to accommodate this technique, but I think that's easy enough to do.

I'm not sure where making the tools would fit in.  That might be a good one for oddball points.

Also, the plastic bag - while brilliant upcycling! - doesn't fit with the natural fibre requirement of the Textile badges.  I'll have to ask someone more familiar with the Oddball system to see if it's okay.

master steward
Posts: 8680
Location: Northern WI (zone 4)
2485
hunting trees books food preservation solar woodworking
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Good job Opalyn, you gave us something to really think about here.  I think that since Textiles is for natural fibers, this isn't a fit there so it does belong here in Oddball.  As does making the tools.  So I think it's in the right place, we just need to figure out the score.  Please bear with us

Mike Haasl
master steward
Posts: 8680
Location: Northern WI (zone 4)
2485
hunting trees books food preservation solar woodworking
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Here are some pictures of some advanced carpentry I got to do this past winter.  The staircase into my basement was sized for vertically challenged people.  I was putting tongue and groove boards up on the ceiling of the basement and needed to transition up into the staircase anyway so this was a chance to create a couple more inches of headroom.  It was challenging to make the three surfaces meet up (ceiling, slope of staircase and front apron of floor).  Especially since the opening in the floor wasn't perfectly square to the joists (not my fault).

First I had to cut out some of the floor joist on an angle.  I drilled holes at each end of the cut to give a lower stress concentration at the corners of the cut.  Luckily there's no load on this particular joist so I didn't mind cutting it a bit.  I also sistered on a piece of 2x6 just to be overly safe.

I had to make creative use of the tongue and groove on the pine I was using.  I modified a chunk to wrap around the apron of the floor.  Then I fiddled and farted with sample pieces until I got the angles and widths of the lowest board correct.  The boards I was using had knots in them (knotty pine, who'd've figured?) so they weren't flat.  To get them to engage and fit the shape of the opening in the floor, I cut kerfs on the back side.  That lets them bend more easily and it worked great.

I screwed them on with finish screws.  The whole basement ceiling is held on with them so it's kind of the look.  Plus then I can take down the whole ceiling if I ever need to run a wire or work on plumbing.

Enjoy the pics!

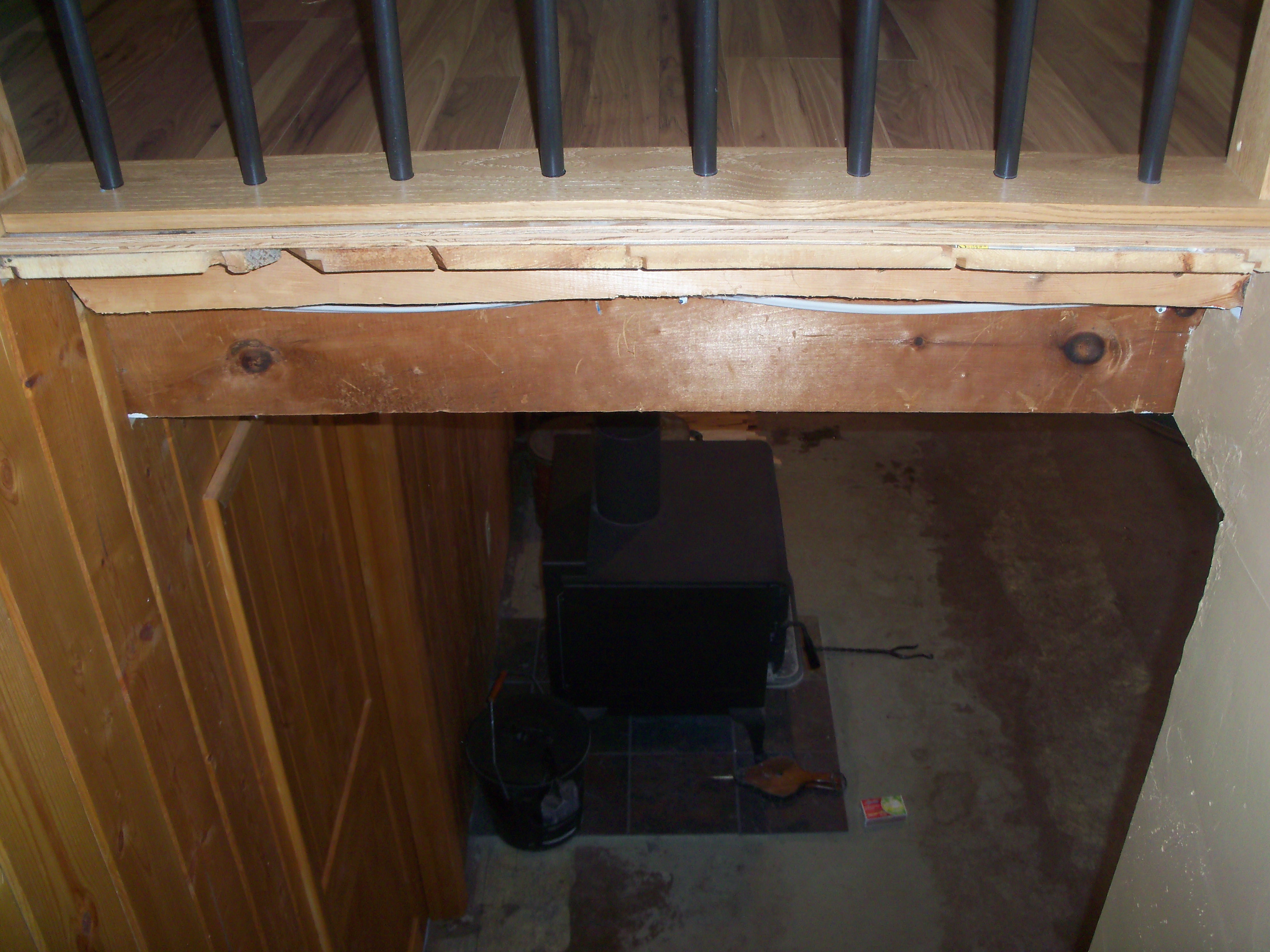

Head bump on the way down the stairs
Head bump on the way down the stairs

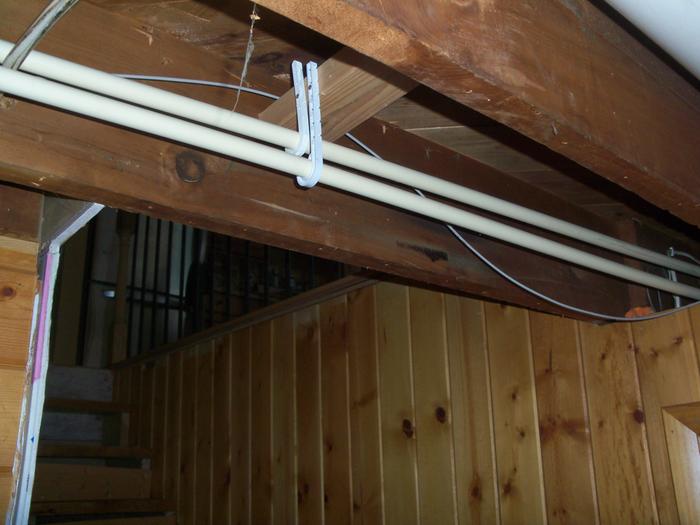

View up the stairs before modifying the joist
View up the stairs before modifying the joist

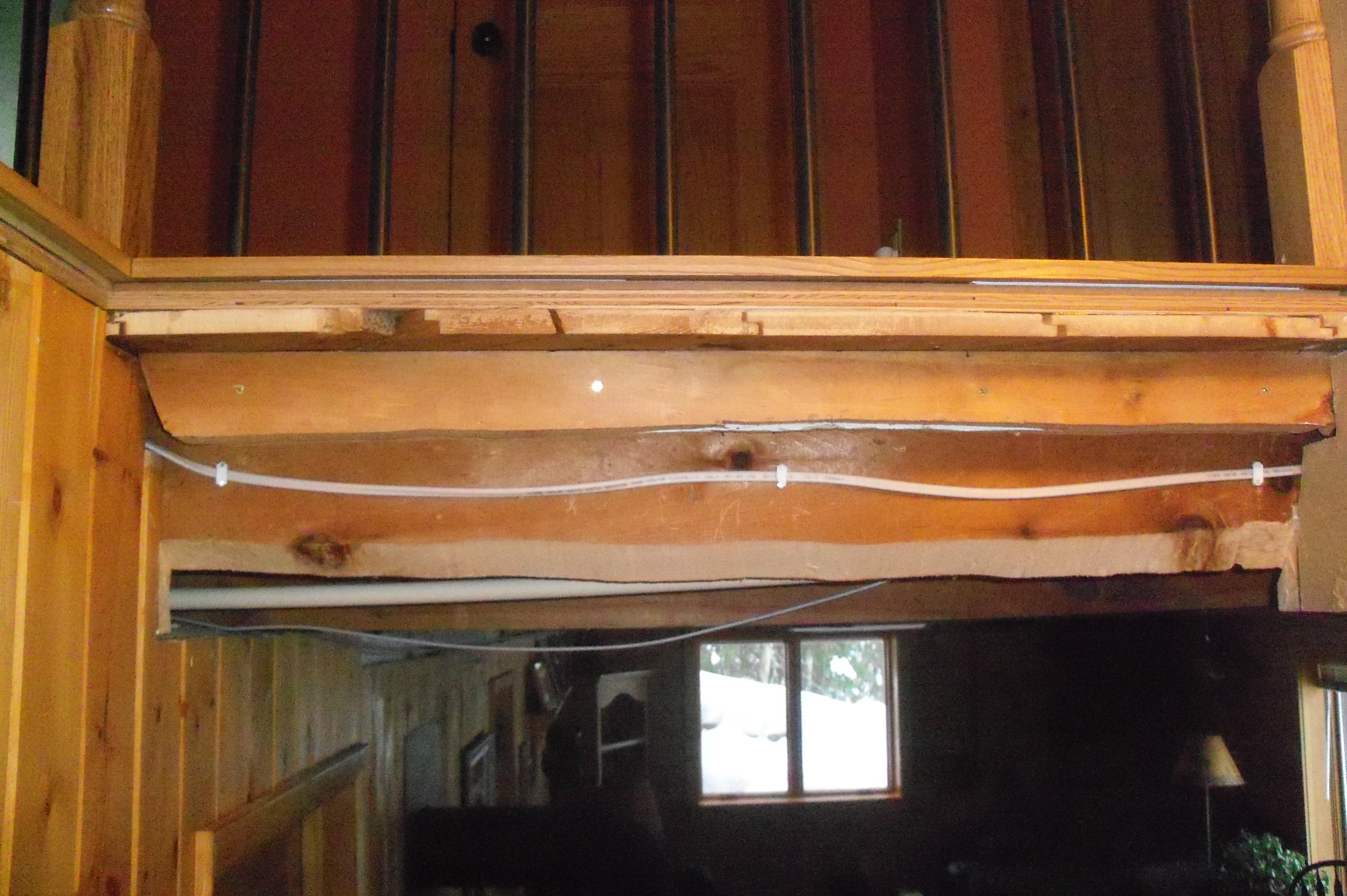

Joist cut/beveled in a perfectly straight line
Joist cut/beveled in a perfectly straight line

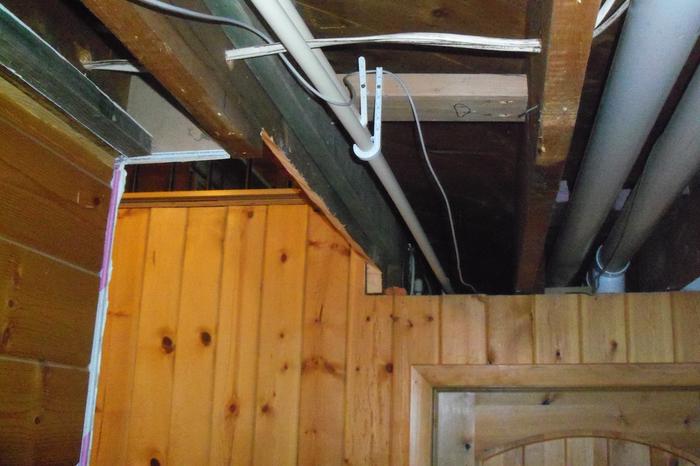

View-from-below-with-sistered-on-2x6-plus-cut-down-support-for-the-plumbing-pipes.jpg
View from below with sistered on 2x6 plus cut down support for the plumbing pipes
View from below with sistered on 2x6 plus cut down support for the plumbing pipes

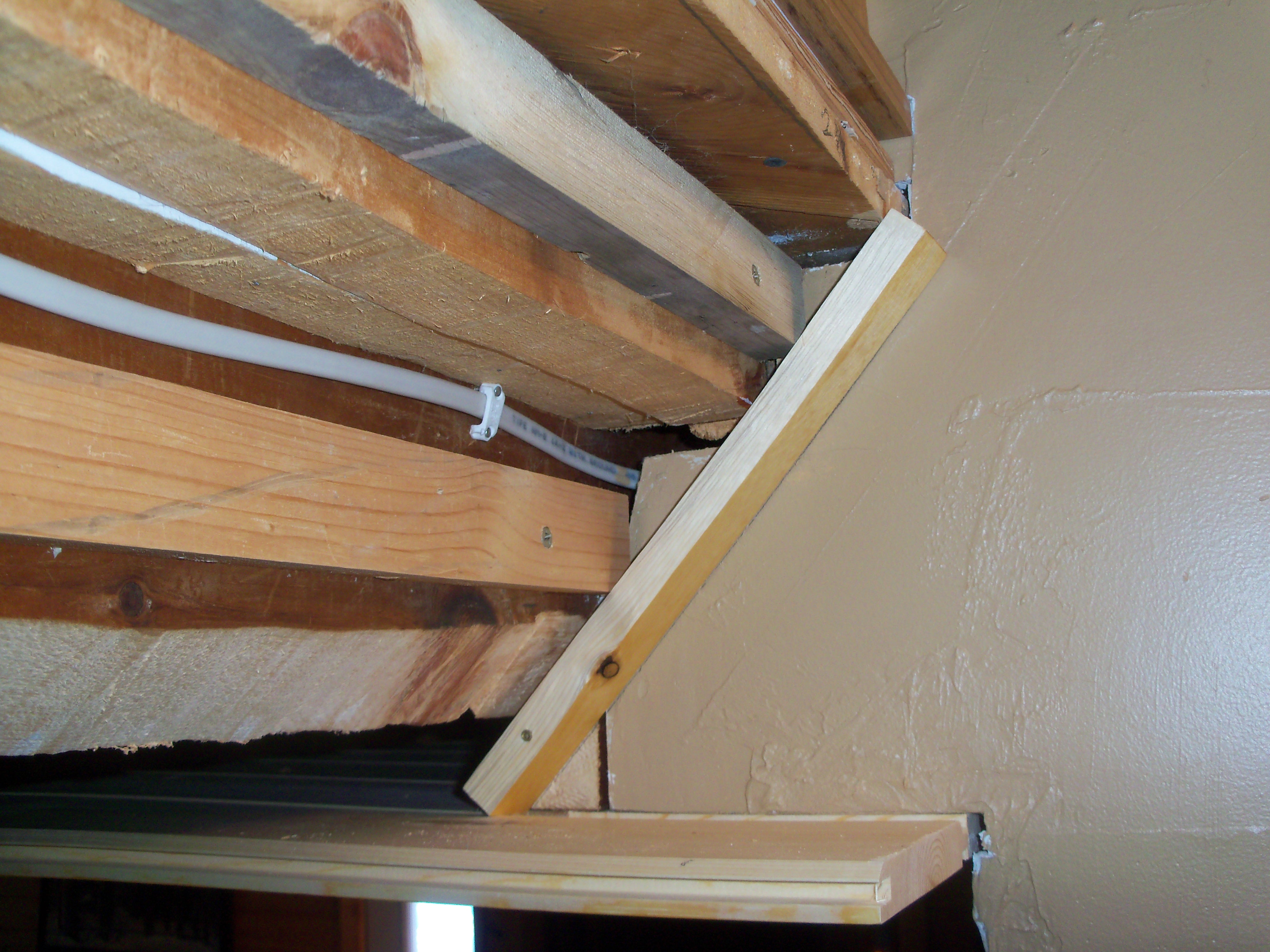

Scrap hunk to establish the angle of the slope
Scrap hunk to establish the angle of the slope

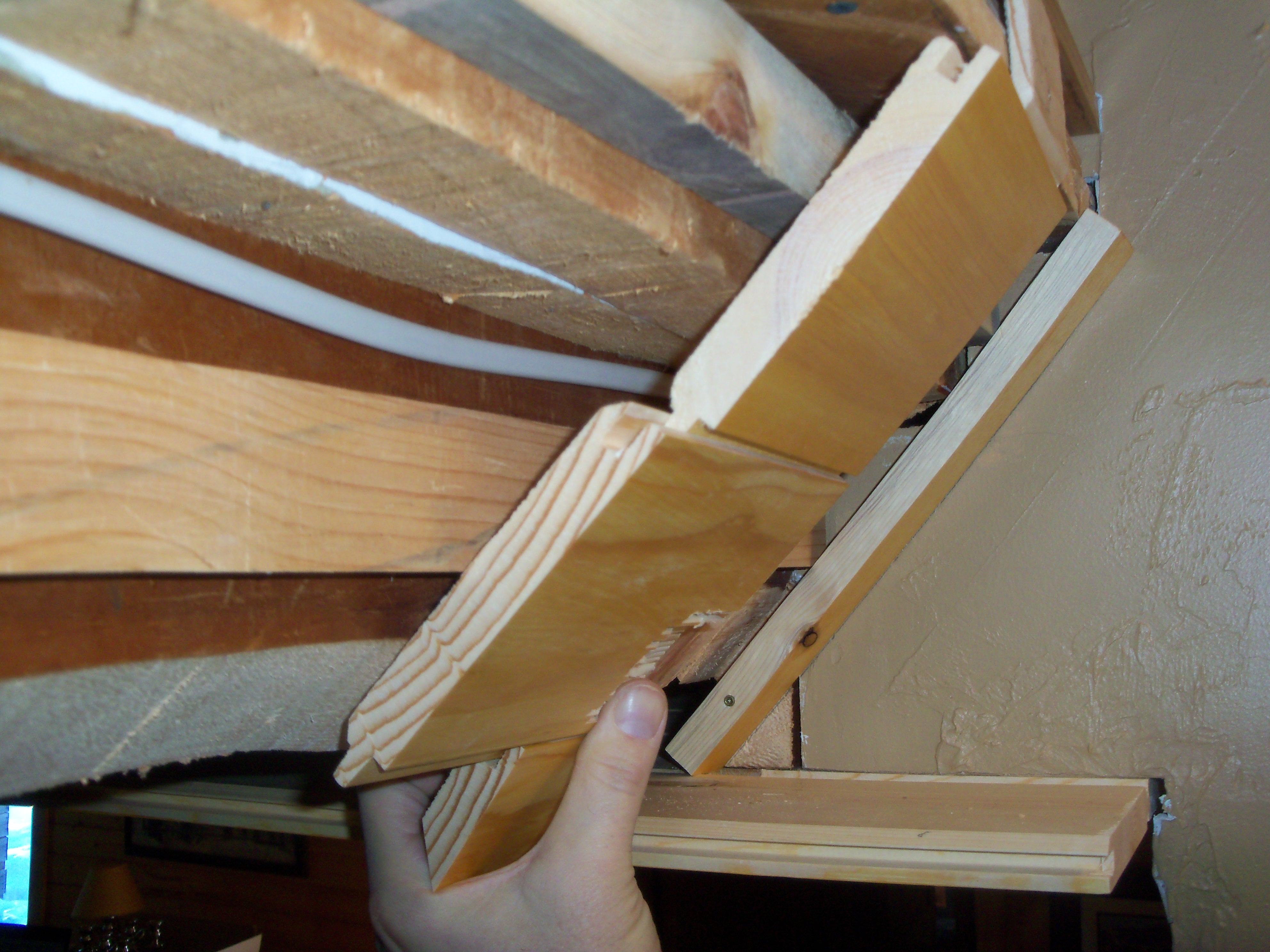

Sizing things up
Sizing things up

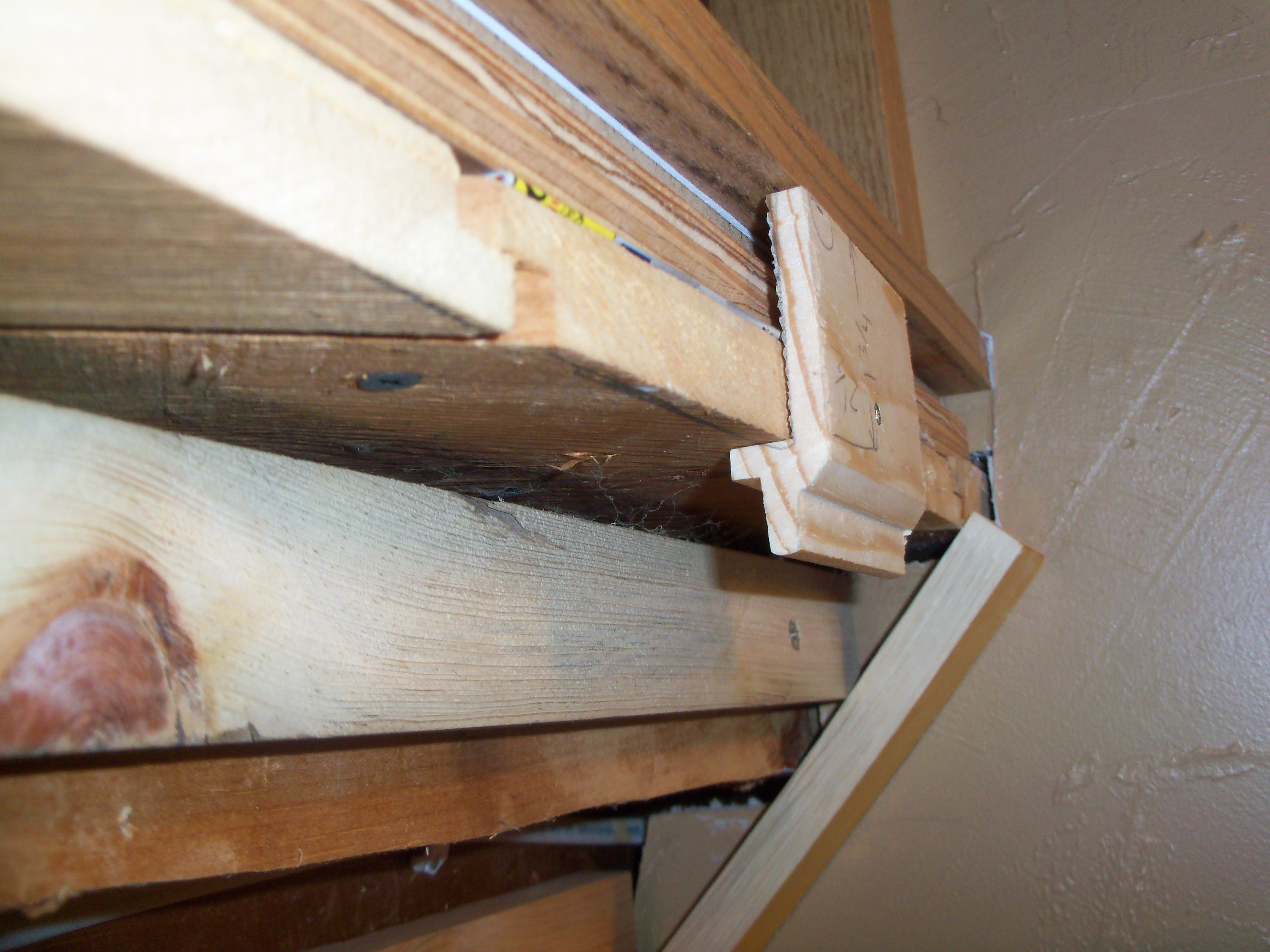

Figuring out the cuts on the little apron so that it underhangs the trim above
Figuring out the cuts on the little apron so that it underhangs the trim above

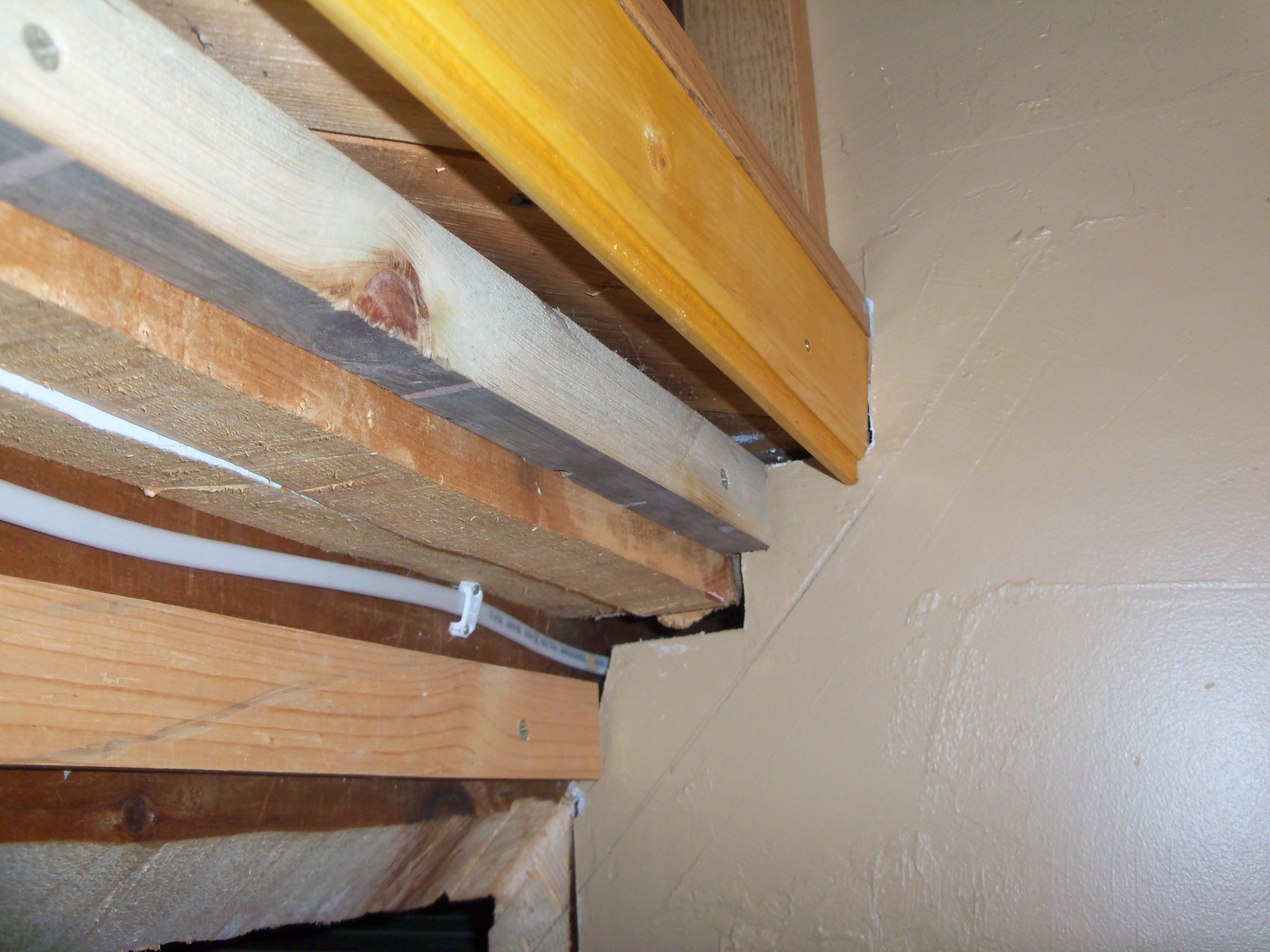

Apron piece made and installed
Apron piece made and installed

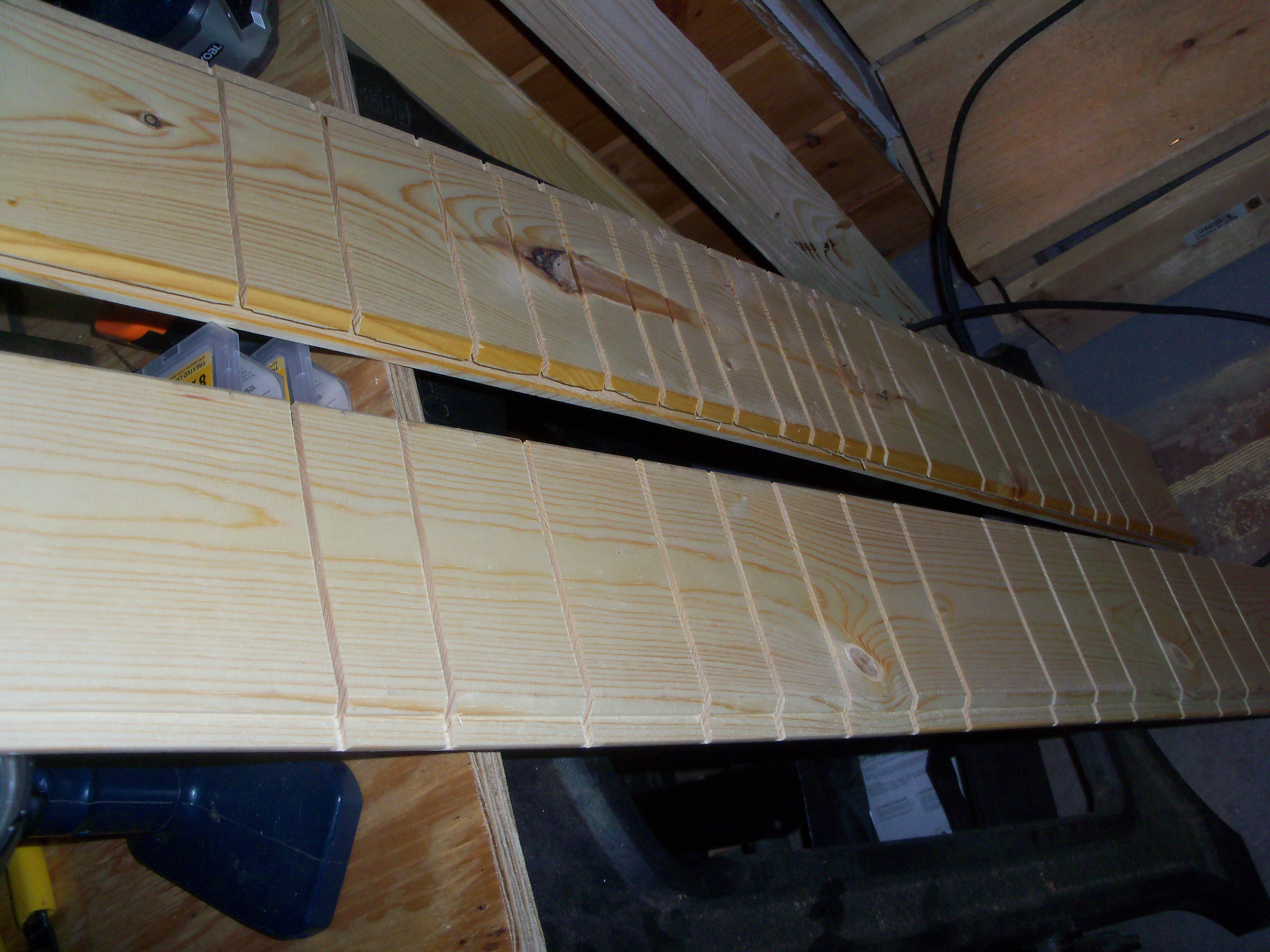

Kerf cuts on back sides of boards to let them flex more
Kerf cuts on back sides of boards to let them flex more

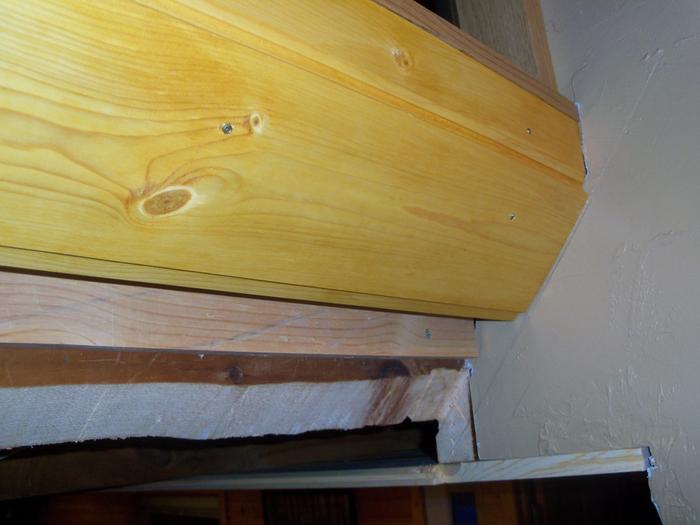

First board fits!
First board fits!
2nd board in and figuring out the angle and width on the last piece
2nd board in and figuring out the angle and width on the last piece
Last one is in, just need a ceiling to attach it to
Last one is in, just need a ceiling to attach it to

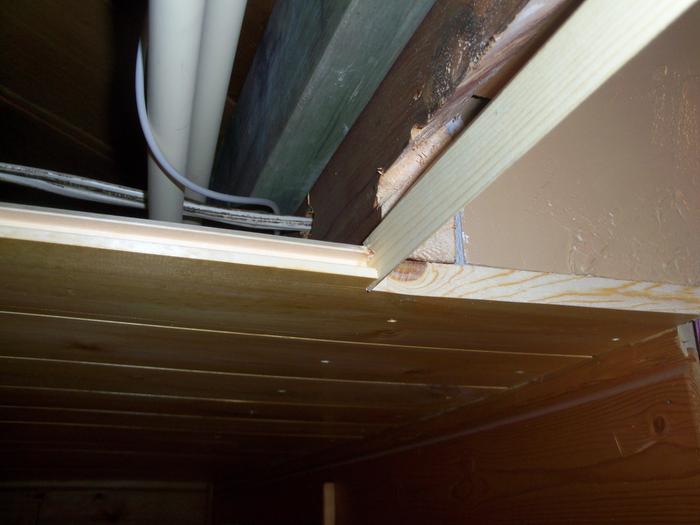

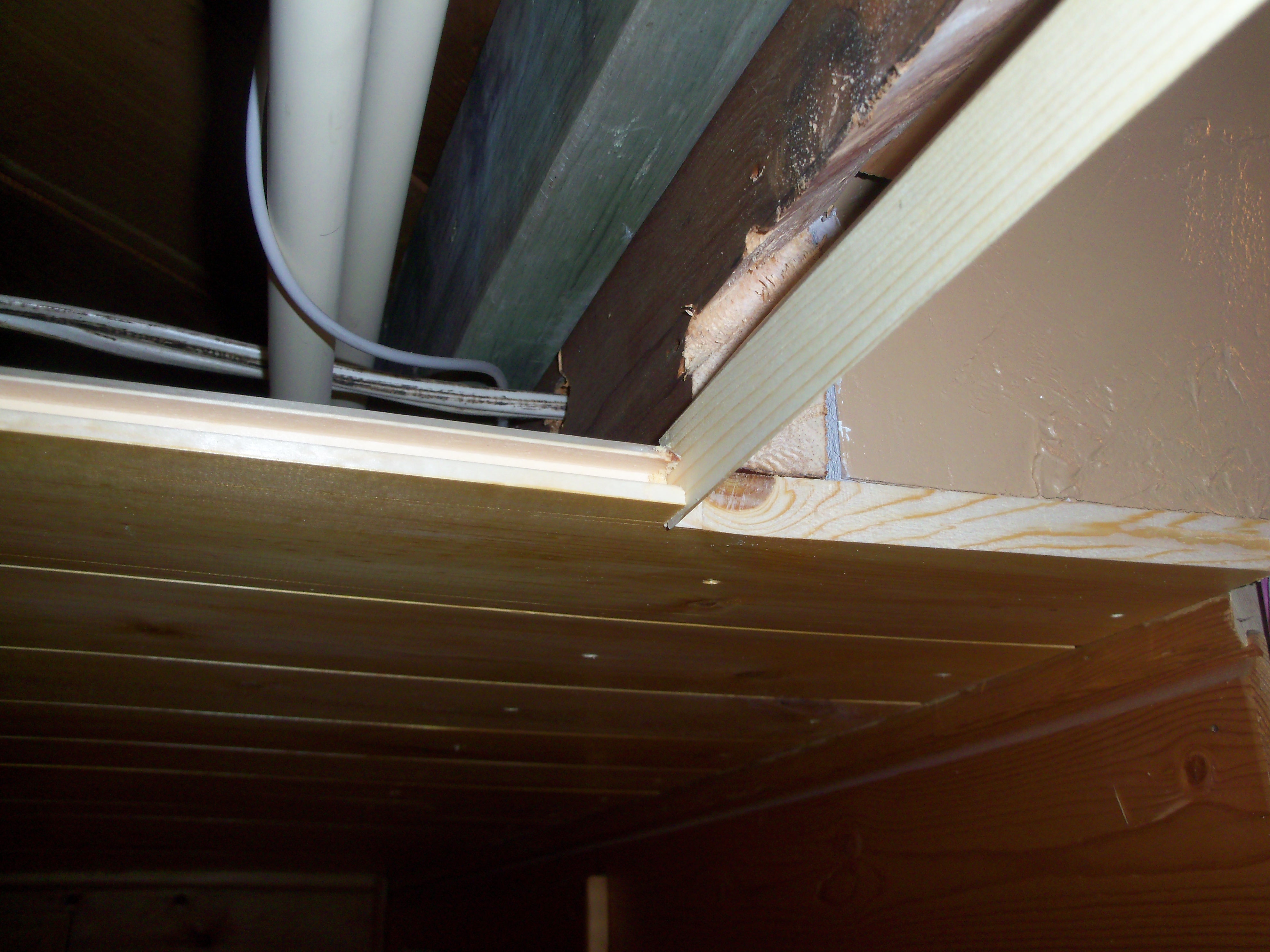

View from downstairs
View from downstairs

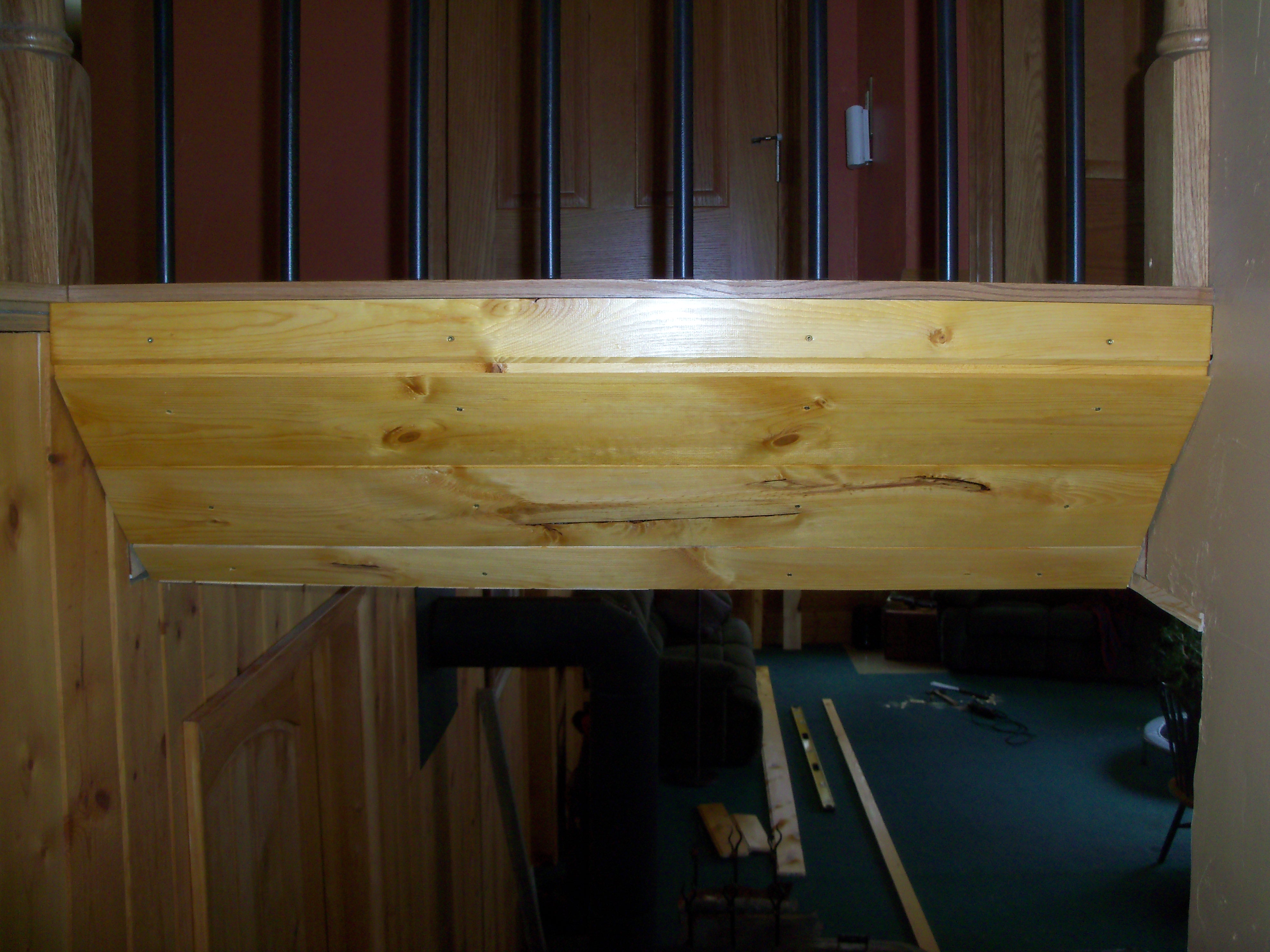

All done!
All done!
Yay! Now for some trim....
Yay! Now for some trim....
Staff note :

I certify this for 4 Oddball points


gardener
Posts: 3157
Location: Pacific Wet Coast
1158
duck books chicken cooking food preservation ungarbage
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I'm putting this in Oddball because "plastic".

Background: My friend has had huge losses in the last two years, the most recent loosing her living place when her landlord died. Her "pet Banties" had to come to my farm and she comes out twice a week to spend time with them and help with their care. Her infrastructure isn't going to work as the weather gets wetter and windier, but she hasn't the time, money or energy to fix much of it.

Immediate problem: I need a protected shelter for the bird's day-time feeder in the portable exercise pen they go to. I need to be able to refill it quickly, and lift the whole thing into a garbage can at night to keep the rats away. It needs to be cheap and fairly quick to build.

Solution: Take two plastic buckets recycled from a local company and 3 stainless #8 machine screws,  1 washer, 6 fender washers and 3 nylock nuts and spend an 1 1/2 hours cutting and assembling it. My climate is wet/muddy all winter and chickens will find a way to get shit on anything, so it needed to not rot and be easy to clean. The square bucket will easily protect it from rain from 3 sides, and half the second bucket will act as a "visor" to protect the opening on the 4th side at least moderately well.

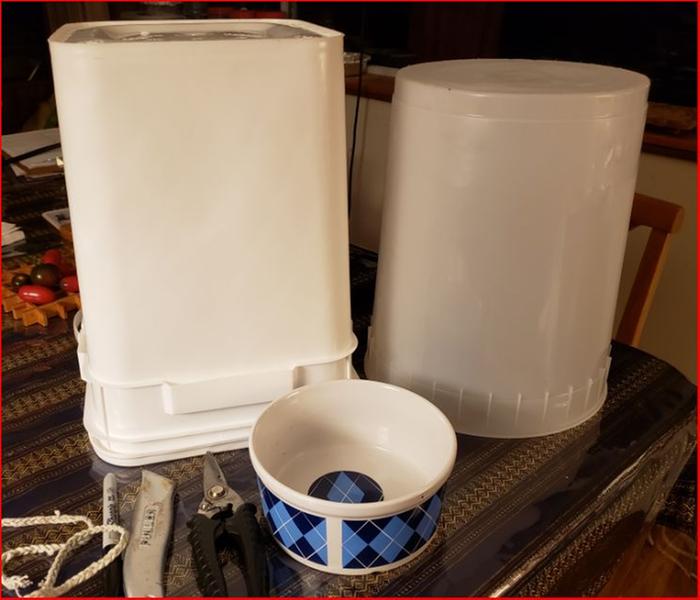

These are the buckets I started with, the feeder they need to hold, and some of the tools.
These are the buckets I started with, the feeder they need to hold, and some of the tools.

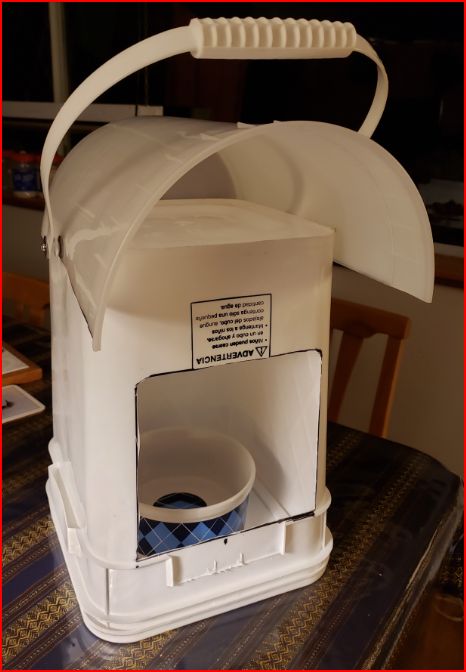

This shows the finished feeder holder. I was really pleased that I figured out how to re-use the handle.
This shows the finished feeder holder. I was really pleased that I figured out how to re-use the handle.
Staff note (Mike Haasl) :

I certify this for 1/2 oddball point! Yes, it's plastic, but it's upcycled!


Mike Haasl
master steward
Posts: 8680
Location: Northern WI (zone 4)
2485
hunting trees books food preservation solar woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
This is a quick note to mention that the criteria for Oddball has been adjusted to include the PEX Factor.  Other tweaks have also been incorporated.  Please check the top post for the new poetry!

pioneer
Posts: 141
Location: Washington State
90
trees rabbit earthworks composting toilet fiber arts sheep wood heat homestead
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Here is my submission for Oddball BB Points for building a freestanding 4'x7' bookshelf with dimensional lumbar.  I put it here as the Dimensional Lumber Badges have activities - not points.

I built my first dimensional lumber bookcase in 2012 and documented it here.

the visual cut list


Cut List:
two 8' 2x12s - cut to book case height (if shorter than 8")
one 8' 2x12 - cut to 47 inches (two pieces)
three 8' 2x10s - cut to 47 inches (six pieces)
one 8' 2x8 - cut to shelf heights
    (three pieces at 12 inches and six pieces at 9 inches)
one 8' 2x4 - cut to 47 inches (two pieces)
one sheet of 1/2" plywood - trimmed to bookcase height minus one inch



the notch - cut on the table saw - for the plywood to sit flush with the back of the bookcase instead of behind the 2x12s



The frame assembled and all shelves routed.



installing shelves



assembly finished - ready to move inside

To document the completion of the BB, I have included the following photos:

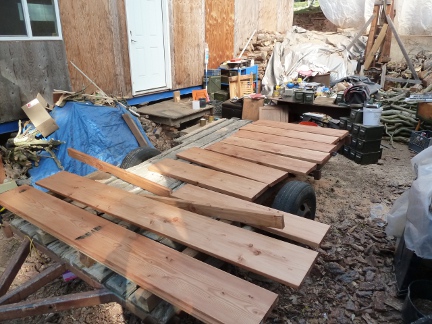

- The materials/cut list laid out on the trailer
- several photos of the construction in progress
- the finished bookshelf
Staff note :

Points for making a sturdy shelf, negative PEX factor points for the plywood and stain. 1 oddball point granted.


gardener
Posts: 1176
Location: Denver, 6a / BSk, rental house dweller, going back to Wheaton Labs soon
709
hugelkultur kids forest garden trees books wofati cooking bike rocket stoves
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Hi Opalyn,
Your first image isn't showing up. Could you try uploading that image to permies so we can see it?

Opalyn Rose
pioneer
Posts: 141
Location: Washington State
90
trees rabbit earthworks composting toilet fiber arts sheep wood heat homestead
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

Ash Jackson wrote:Hi Opalyn,
Your first image isn't showing up. Could you try uploading that image to permies so we can see it?


Sure,
The first link is to the blog post at Windward and the first image is the Visual Cut List.  Is this the photo you wanted to see?

There is a photo before this in the blog post but it was made by someone else so I didn't include it in my post - it is the full bookshelf photo below
the visual cut list
the visual cut list
inspiration bookshelf made by Walt - Mine has different shelf heights
inspiration bookshelf made by Walt - Mine has different shelf heights
